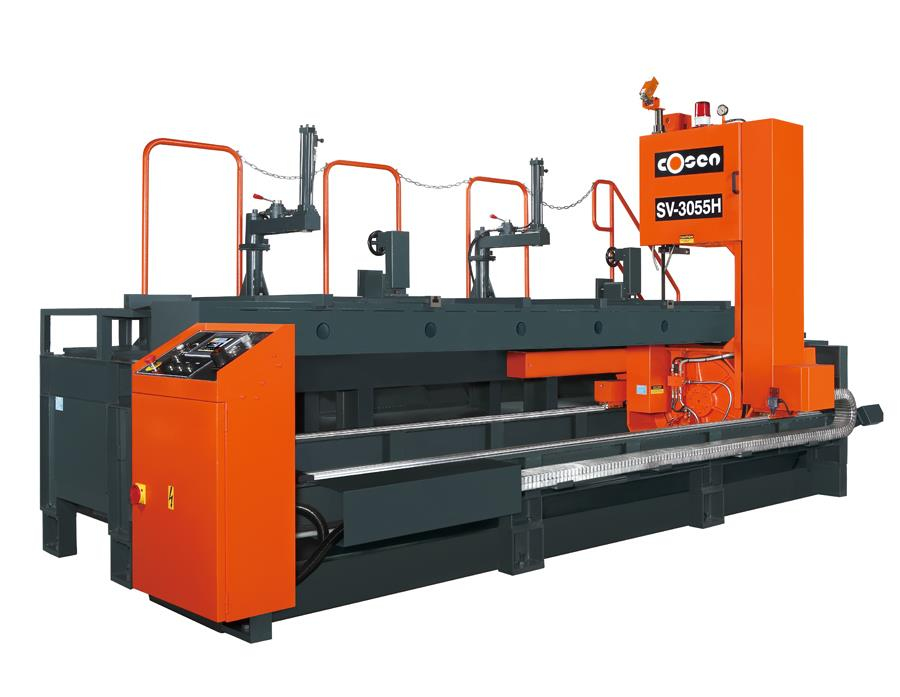

Cosen SV-3055H Traversing Head Vertical Plate Saw (Cosen SV-3055H)

Cosen Plate Saws are available in various sizes of throat and bed length. Cosen plate saws offer many advantages over our competition with minimum floor space usage through traveling head design and blade deviation monitor. The biggest advantage Cosen Plate Sawing Systems offer: high quality, high precision,fast cutting rates, and affordable price.

COSEN SV-3055H
Capacity Height	300 mm (11.8")
Capacity Throat	550 mm (21.6")
Cutting Length	by order (max. 3000 mm (118"))
Blade Speed	20-80 m/min (65-262 ft/min)
Blade Size (LxWxT)	4450x41x1.3 (175.2"x1.6"x0.05")
Blade Motor	7.5HP (5.625kW)
Hydraulic Motor	2HP (1.5kW)
Coolant Motor	1/4HP (0.1875kW)
with Cutting Length	2500 mm (98.4")
Workbed Height	1350 mm (53")
Floor Space (LxWxH)	3300x1500x2455 mm (130"x59"x96.6")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
