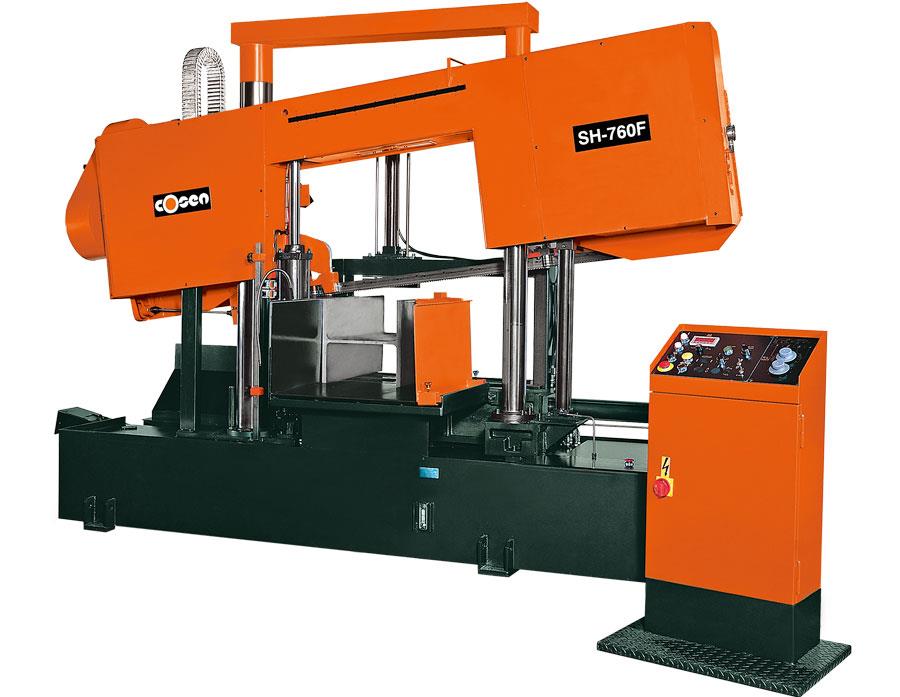

Cosen SH-760F Semi-Automatic Canted Frame Straight Cutting Saws (Cosen SH-760F)

Offered in semi-automatic and NC automatic types, these straight cutting bandsaws adopt the canted frame design available from 0° to 7.5° or 10°, which is particularly useful when cutting structural material giving you better cutting efficiency and blade life. The dual column, cross link and saw frame hydraulic cylinders as a group form a very rigid structure maximizing your productivity particularly in pack cutting.

COSEN SH-760F (7.5° blade cant)
Capacity Round	560 mm (22")
Capacity Rectangle (HxW)	520 x 760 mm (20.5"x30")
Blade Speed	20-100 m/min (66-330 fpm)
Blade Size (LxWxT)	6665x54x1.6 (262"x2"x0.063")
Blade Motor	7.5HP (5.6kW) (Option:10HP (7.5kW))
Hydraulic Motor	2HP (1.5kW)
Coolant Motor	1/4HP (0.1875kW)
Workbed Height	700 mm (27.5")
Gross Weight	2400 kgs (5280 lbs)
Floor Space (WxLxH)	1360x3375x2415 mm (53.5"x133"x95")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
