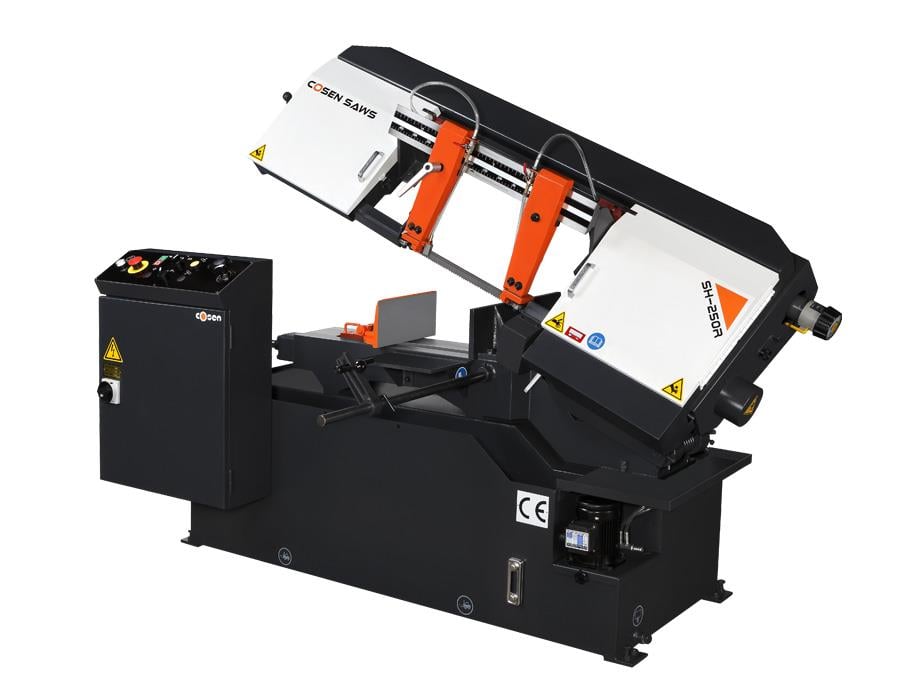

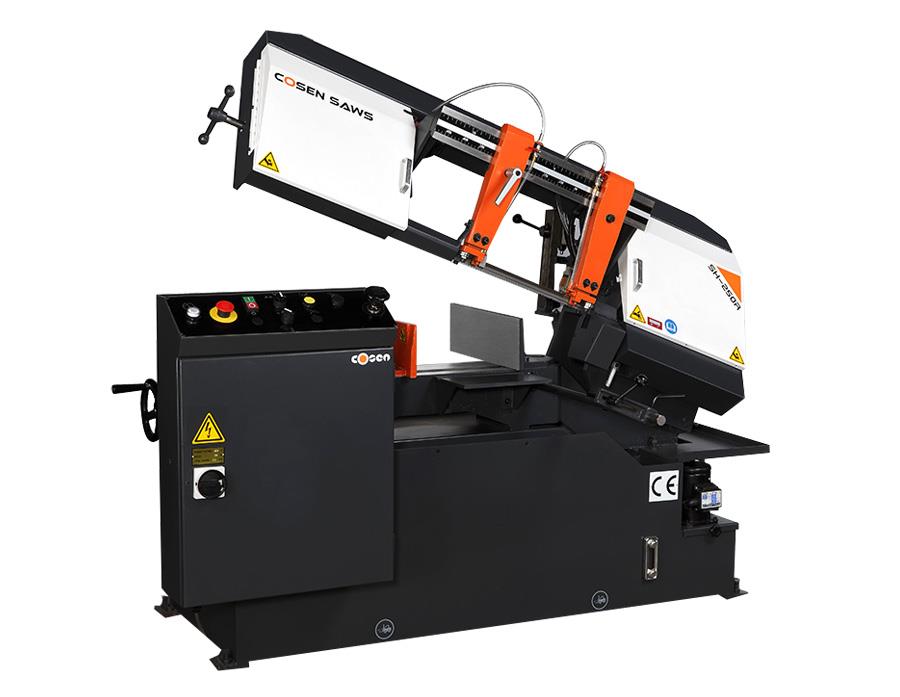

Cosen SH-250R Semi-Automatic Horizontal Band Saws (Cosen SH-250R)

The Cosen SH-250R is a Semi-Automatic horizontal Bandsaw with a 260mm cutting capacity. When compared with competitive brands in the 250mm utility saw category, it provides superior durability with its rigid saw frame. In addition, the SH-250R offers more versatility and a quick return on investment. This saw is highly recommended for tool shops, die casting manufacturers and fabricators. SH-250R is easy to operate, takes up minimal floorspace, and cuts with precision

COSEN SH-250R
Capacity Round	250 mm (10")
Capacity Square	230 mm (9")
Capacity Rectangle (HxW)	230 x 300 mm (9"x11.8")
Blade Speed	60Hz:23,37,58,93 m/min (75,121,190,305 fpm)
	50Hz:19,31,48,78 m/min (62,101,157,256 fpm)
Blade Size (LxWxT)	3350x27x0.9 (132"x1.06"x0.035")
Blade Motor	2HP (1.5kW)
Hydraulic Motor	1/4HP (0.1875kW)
Coolant Motor	1/8HP (0.1kW)
Workbed Height	640 mm (25.2")
Gross Weight	580 kgs (1276 lbs)
Floor Space (LxWxH)	1850x900x1040 mm (73"x35.4"x41")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
