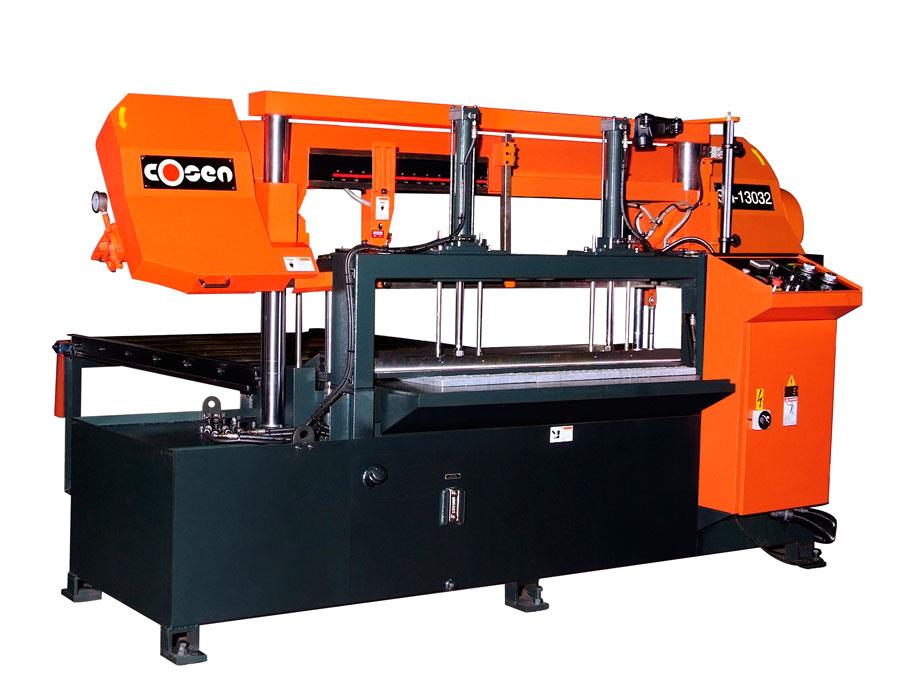

Cosen SH-13032 Semi-Automatic Horizontal Greating-Cutting Band Saw (Cosen SH-13032)

Grating Cutting. ．With a cutting capacity of 1300 mm (W) x 310 mm (H) and gantry-type structure, SH-13032 is specially designed to cut drain covers, grating, hollow plates, and wide plates of metal or nonmetal material. ．SH-13032 comes with two sets of full stroke hydraulic top clamps. One before and the other behind the blade together hold the material tightly, enabling smooth and stable cutting even for wide grates and plates.．The rugged saw frame travels vertically through two large precision-ground column.The cross link connecting the two columnsforms an archway design, giving it sound structural strength

Please consult us for custom design projects.

COSEN SH-13032
Capacity Round	310 mm (12.2")
Capacity Square	310 mm (12.2")
Capacity Rectangle (HxW)	310 x 1300 mm (12.2"x51")
Blade Speed	15-80 m/min (50-264 fpm)
Blade Size (LxWxT)	6200x34x1.1 (244"x1.3"x0.042")
Blade Motor	5HP (3.75kW)
Hydraulic Motor	1HP (0.75kW)
Coolant Motor	1/8HP (0.1kW)
Workbed Height	700 mm (27.6")
Gross Weight	1500 kgs (3300 lbs)
Floor Space (LxWxH)	3353x1448x2007 mm (132"x57"x79")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
