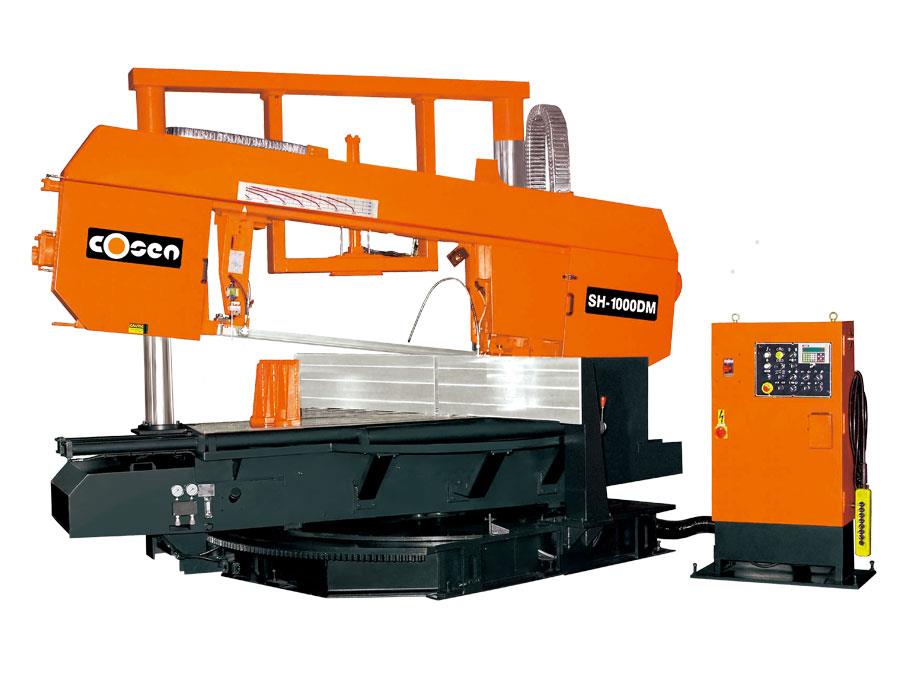

Cosen SH-1000DM Semi-Automatic Swivel Head Double Mitering (Cosen SH-1000DM)

Cosen employs a rigid, oversized round column design, which keeps the same penetrating angle to the material from top to bottom of cut. The blade cant design is particularly useful when cutting large I-beams or other structural shapes as it creates more even load per blade tooth, thus increasing cutting efficiency and blade life. There is no question that the twin column and canted frame is the way to go at structural cutting.

COSEN SH-1000DM (7.5° blade cant)
Angle	0°	±45°	-60°
Capacity Round	660 mm (26")	620 mm (23")	400 mm (15.7")
Capacity Rectangle(HxW)	520x1020mm	520x620mm	540x400mm
	(20.5"x40")	(20.5"x24.4")	(21.3"x15.7")
Blade Speed	15-90 m/min (49-295 fpm)
Blade Size (LxWxT)	8300 x 54 x 1.6 mm (326.8"x 2.1"x 0.063")
Blade Motor	10 HP (7.5 kW)
Hydraulic Motor	3 HP (2.25 kW)
Coolant Motor	1/4 HP (0.18 kW)
Vise Control method	Hydraulic Full Stroke Cylinder
Workbed Height	810 mm (31.9")
Gross Weight	5570 kgs (12254 lbs)
Floor Space (LxWxH)	3750 x 3900 x 2765 (148" x 154" x 109")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
