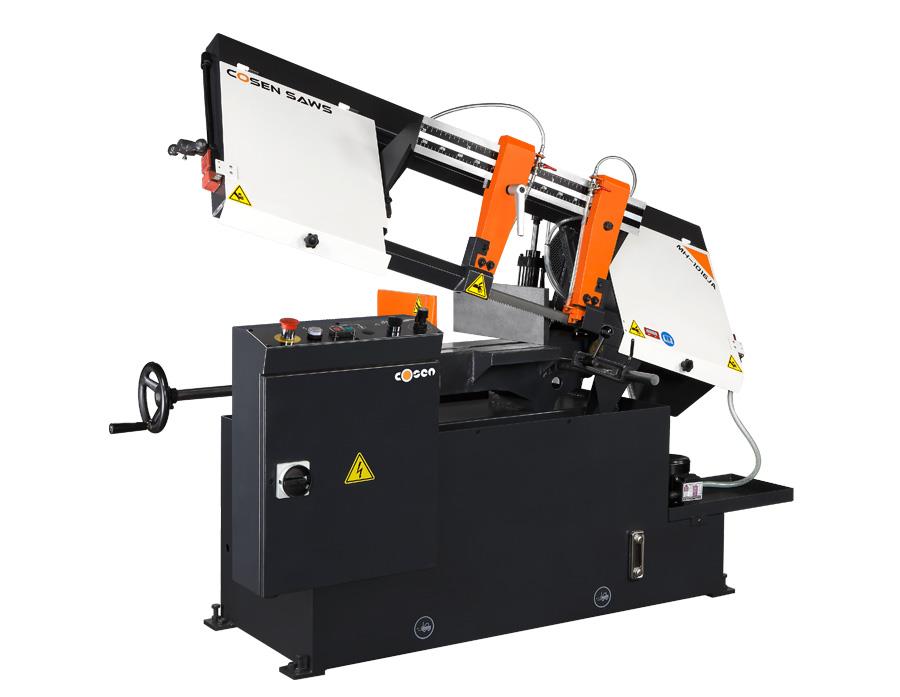

Cosen MH-1016JA Manual Swivel Vise Mitering (Cosen MH-1016JA)

The Cosen Manual Series Band Saw comes equipped with manual vise and adjustable hydraulic down feed( except MH-270M/MH-210M). It is an ideal tool for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and limited run production work. It is a great machine for cutting solids, square, round, rectangle and tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.

COSEN MH-1016JA/SH-1016JA
Capacity Round	250 mm (10")
Capacity Square	230 mm (9")
Capacity Rectangle (HxW)	230 x 370 mm (9"x14.5")
Blade Speed	60Hz:23,37,58,93 m/min (75,121,190,305 fpm)
	50Hz:19,31,48,78 m/min (62,101,157,256 fpm)
Blade Size (LxWxT)	3350x27x0.9 (132"x1.06"x0.035")
Blade Motor	2HP (1.5kW)
Hydraulic Motor	1/4HP (0.1875kW) (SH-1016JA)
Coolant Motor	1/8HP (0.1kW)
Workbed Height	650 mm (25.6")
Gross Weight	432 kgs (950 lbs)
Floor Space (LxWxH)	1680x710x1780 mm (66"x28"x70")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
