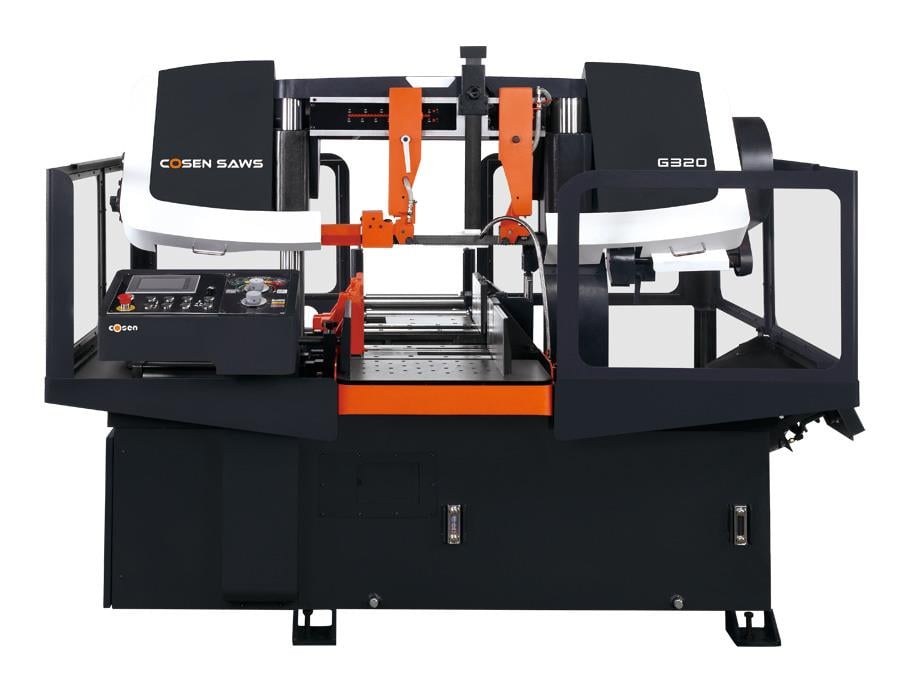

Cosen G320 SNC Automatic Saw with Shuttle Vise (Cosen G320)

Cosen's G320 is a rigid dual-column high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy duty gear box, a 3.75kW (5HP) drive motor, a user friendly programmable control and a modern new look ! The Smart NC-100 technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation. Cutting information such as blade speed, downfeed speed, cutting rate, blade life and error message is clearly displayed for ease of use..

Standard Features:
● 5.7” HMI Touch Screen & Mitsubishi PLC Controller
● 100 individual jobs can be programmed and stored
● Automatic kerf compensation
● “Save-a-Blade” function
● Rapid troubleshooting via error feedback system
● Double retracting vises
● Scrap-free vise plates
● Full stroke hydraulic cylinder
● Split front vise
● Inverter-controlled infinitely variable blade speed
● Automatic hydraulic
● Hydraulic Chip Conveyor
● Vibration Damper
● Blade Height Decoder
● CE Compliance

Optional Accessories:
● Hydraulic Top Clamp
● Vise Pressure Regulator
● Blade Deviation Detector
● 2M Heavy Duty Roller Table

COSEN G320
Capacity Round	325 mm (12.8")
Capacity Square	325 mm (12.8")
Capacity Rectangle (HxW)	325 x 380 mm (12.8"x15")
Blade Speed	20-100 m/min
Blade Size (LxWxT)	4240x34x1.1 (166.9"x1.3"x0.042")
Blade Motor	5HP (3.75kW)
Hydraulic Motor	1HP (0.75kW)
Coolant Motor	1/8HP (0.1kW)
Automatic Indexing Length	403 mm (15.9), Max. 99999 mm
Workbed Height	790 mm (31.1")
Gross Weight	2200 kgs (4840 lbs)
Floor Space (LxWxH)	2420x2020x1670 mm (95.2"x79.5"x66")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
