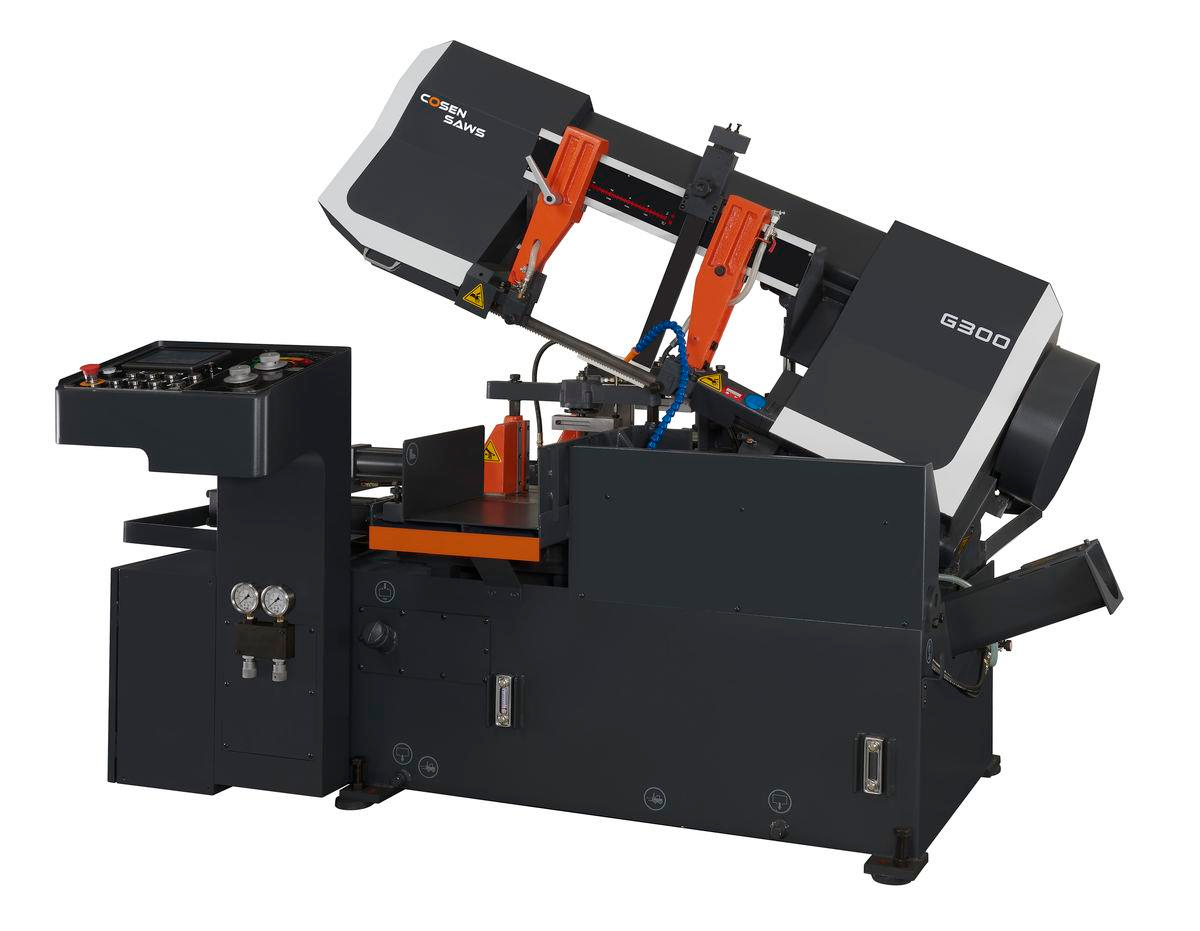

Cosen G300 Automatic Straight Cutting Band Saws Machine (Cosen G300)

The Cosen G300 is a rigid hinge type high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy duty gear box, a 5 HP (3.75 kW) drive motor, a user friendly programmable control and a modern new look !

The Cosen G300 is a rigid hinge type high production machine which incorporates a massive base,
sturdy saw frame, with an extremely heavy duty gear box, a 5 HP (3.75 kW) drive motor, a user friendly
programmable control and a modern new look ! The Smart NC-100 technology is programmable up to
100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic
Kerf Compensation. Cutting information such as blade speed, downfeed speed, cutting rate, blade
life and error message is clearly displayed for ease of use..

COSEN G300
Capacity Round	300 mm
Capacity Square	300 mm
Capacity Rectangle (HxW)	300 x 340 mm
Blade Speed	20-100 m/min (66-330 fpm)
Blade Size	3820mm x 34mm x 1,1mm
Blade Tension	Hydraulic
Blade Motor	5 HP (3.75kW)
Hydraulic Motor	1 HP (0.75kW)
Coolant Motor	1/8HP (0.1kW)
Workbed Height	660 mm
Gross Weight	1800 kgs
Floor Space (W x L x H)	2010mm x 1890mm x 1500mm
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
