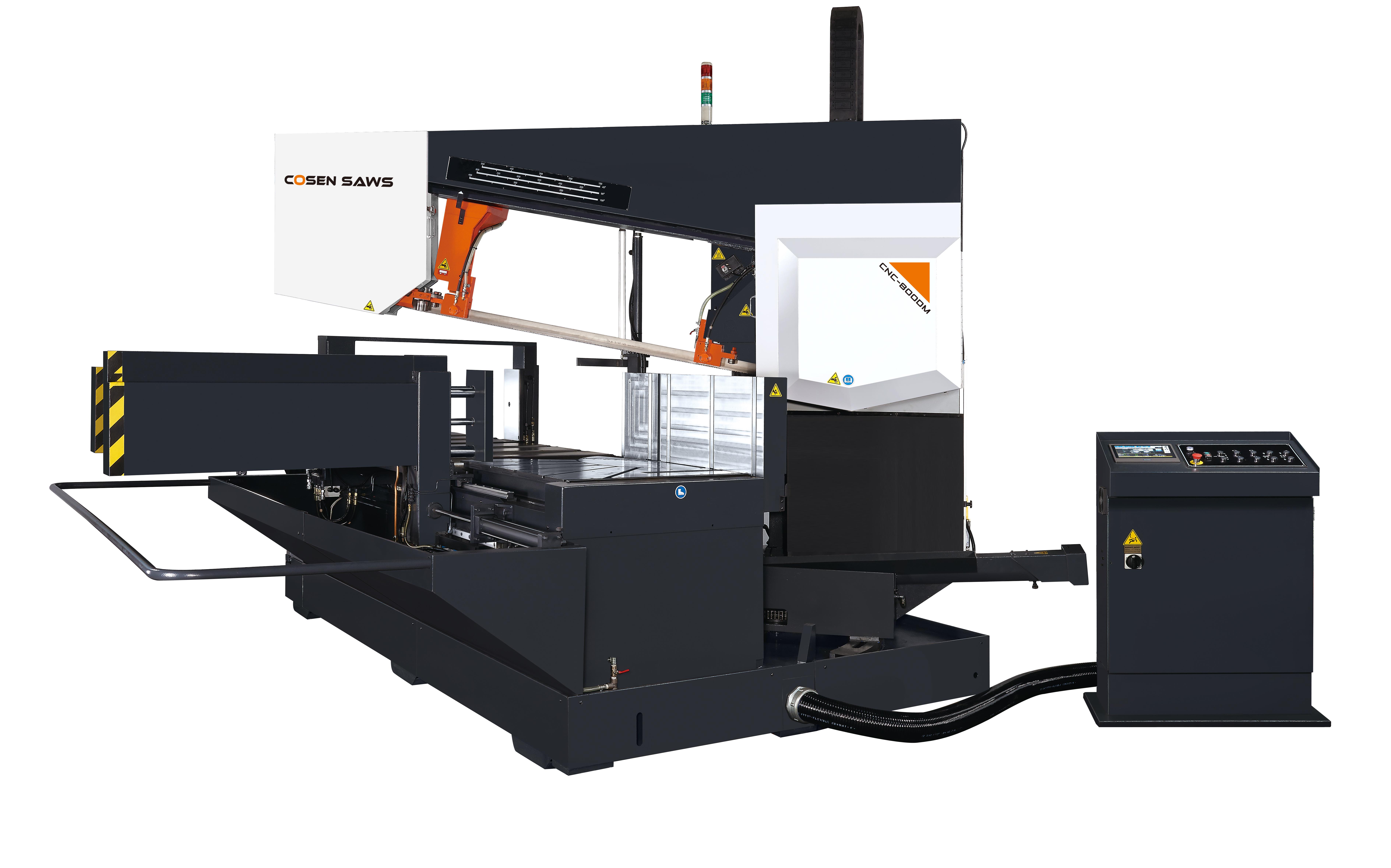

Cosen CNC-800DM SNC Programmable Automatic Double Miter Horizontal Bandsaw (Cosen CNC-800DM)

‧Programmable up to 100 individual jobs including cut-off lengths, quantities and miter angles. ‧Automatic saw bow mitering single or double-sided to your preset angle ‧Automatic guide arm & front vise repositioning ‧Programmable cutting rates & blade speeds ‧Automatic multiple feeding with mitering direction taken into calculation ‧Automatic machine shutoff after cutting jobs complete or when out of stock ‧10” HMI touch screen with access to blade speed, blade life, optional motor amp draw and blade deviation detector

COSEN CNC-800DM
Angle	0°	±45°	-60°
Capacity Round	500 mm (20")	450 mm (17.7")	400 mm (16")
Capacity Rectangle(HxW)	400x800mm	400x550mm	400x400mm
	(16"x31")	(16"x21")	(16"x16")
Blade Speed	20-100 m/min (66-330 fpm)
Blade Size (LxWxT)	6600 x 54 x 1.3 mm (260"x 2"x 0.05")
Blade Motor	7.5 HP (5.625 kW)
Hydraulic Motor	3 HP (2.25 kW)
Coolant Motor	1/2 HP (0.375 kW)
Automatic Indexing Length	1500 mm (59"), Max. 6500 mm (256")
Workbed Height	1085 mm (42.7")
Gross Weight	8000 kgs (17600 lbs)
Floor Space (LxWxH)	4060 x 3500 x 2312 (160" x 138" x 91")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
