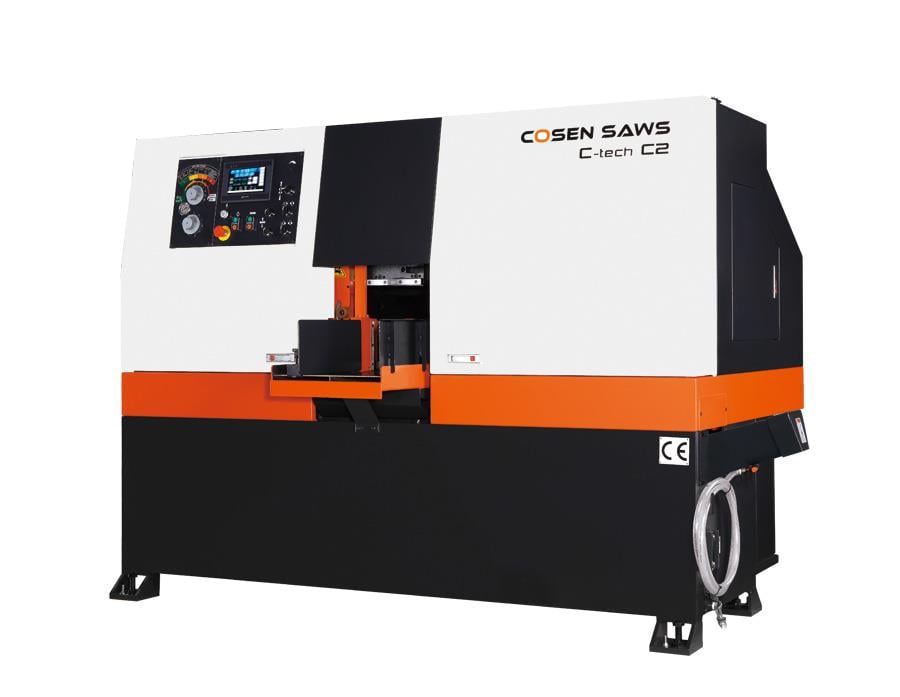

Cosen C2 NC Programmable Fully Automatic Horizontal Band Saw Machine (Cosen C2)

All C-TECH series machines featuring the NC control system allow for automatic first (square) cut and 99-jobs storage plus all the other features Of the SNC-100 control system. The saw frame rides on linear guide way. This design gives the saw frame a rigid base thereby ensuring the smoothest feeding, highest precision and lowest friction guide system available today. Cosen saws are designed for speed, precision and a long service life.

COSEN C2
Capacity Round	260 mm (10.2")
Capacity Square	260 mm (10.2")
Capacity Rectangle (HxW)	260 x 300 mm (10.2"x11.8")
Blade Speed	20-100 m/min (66-330 fpm)
Blade Size (LxWxT)	4100x34x1.1 (161.4"x1.33"x0.042")
Blade Motor	5HP (3.75kW)
Hydraulic Motor	1HP (0.75kW)
Coolant Motor	1/8HP (0.09kW)
Automatic Indexing Length	400 mm (15.7), Max. 99M (99999")
Workbed Height	790 mm (31.1")
Gross Weight	1700 kgs (3740 lbs)
Floor Space (LxWxH)	1780x2100x1400 mm (70"x82.7"x55.1")
＊Design and specifications are subject to change without notice & obligation. ＊Machines may be shown with some options.
