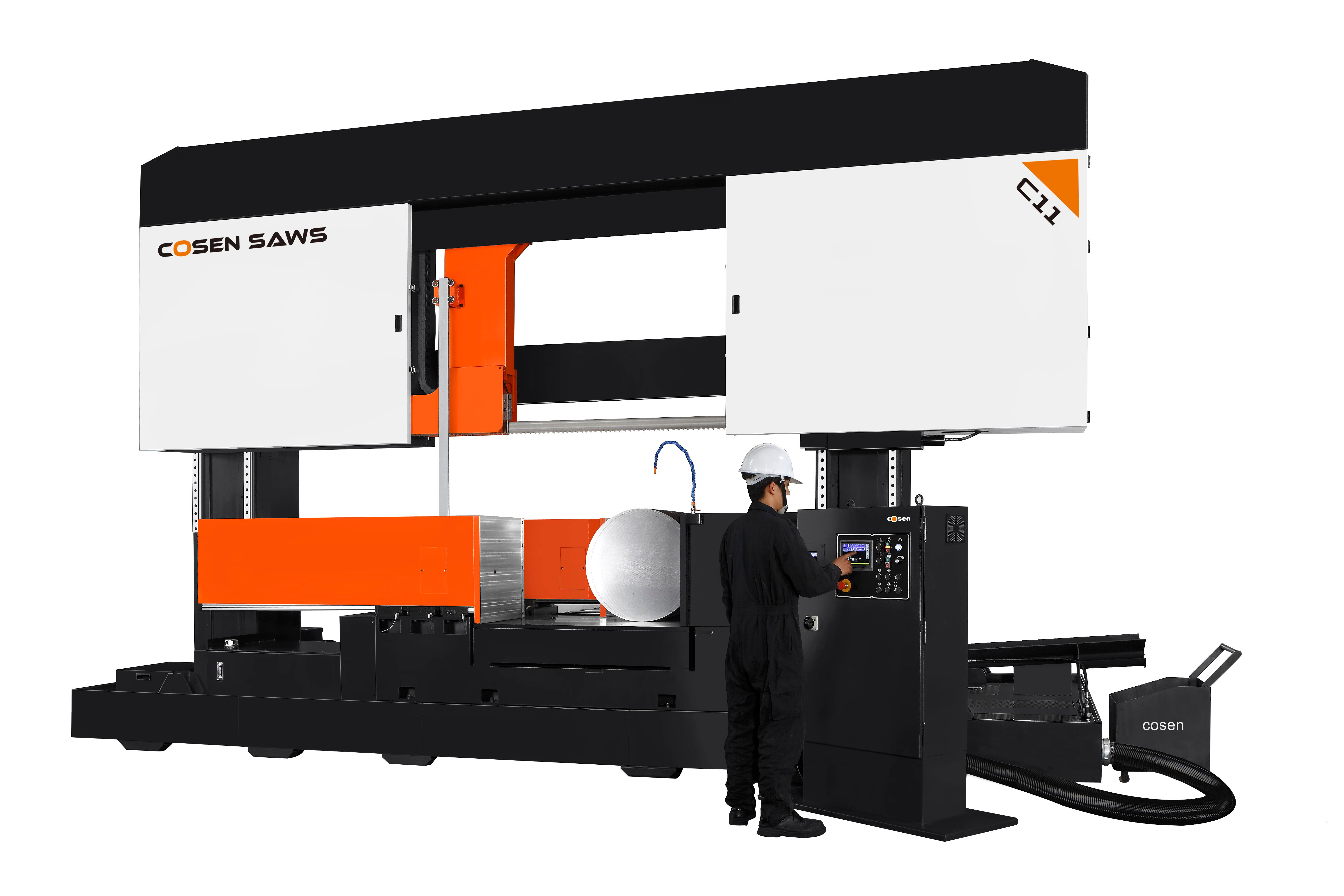

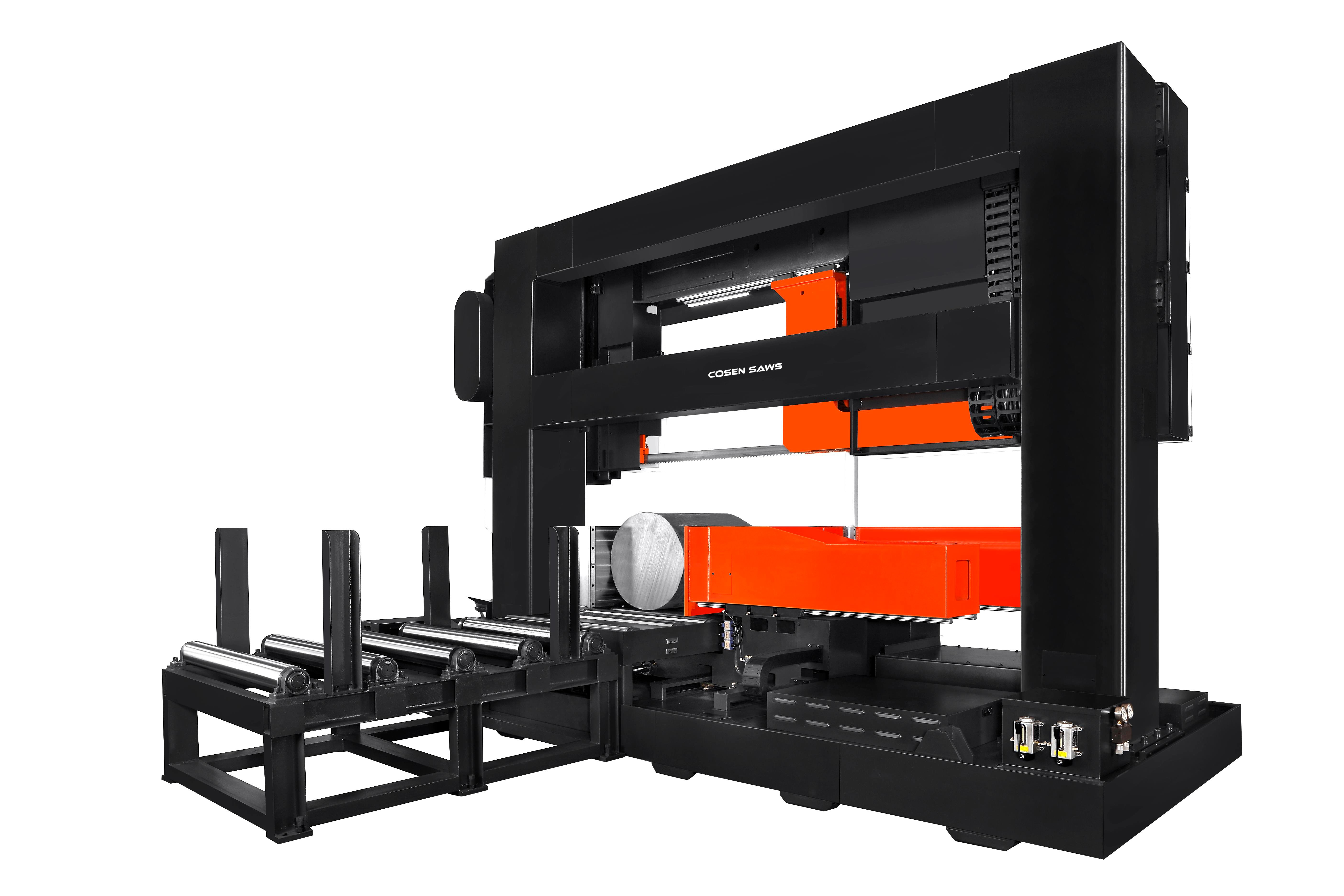

Cosen C11 Smart NC Programmable Automatic Heavy-Duty Straight Cut-Off Band Saws (Cosen C11)

For the last 40 years, Cosen Saws has been dedicated to deliver highly accurate and efficient band saws of high quality to its customers. The 100% Taiwanese precision fabrication, the worldwide-known brand and the Research & Development projects satisfy the customers’every needs. In a constant endeavor to perfection, Cosen delivers long-term value, as well as efficiency and cost optimization for its customers and partners. Factory purchasing, local service, European technology, durable and reliable: choose Cosen Saws to fulfil all your sawing requirements.

• Saw bow linear Guide
• Saw-arm and Vise
• The saw bow is supported by the strong square cylinder and lifted by the linear guide
• Configuration 10.1 inch HMI touch screen for the operation of the machine
• Chips are removed by Hydraulic Screw-Type Chip Conveyor
• Automatic Hydraulic Blade Tensioning
• Blade motion detector
• Discharge Workbed
• Laser detection fast approach function
• Laser detection first cut function
• Feeding workbed surface using rollers with servo motor
• Double Retracting Vises
• No material Detector

COSEN C11
Capacity Round	1100 mm (43.3")
Capacity Rectangle (H x W)	1100 x 1100 mm (43.3" x 43.3")
Blade Speed	20-100 M/min (66-328 ft/min)
Blade Size (LxWxT)	12020 x 80 x 1.6 mm  (473" x 3.1" x 0.06")
Blade Tension	Hydraulic
Blade Motor	15 HP (11.2 kW)
Hydraulic Motor	5 HP (3.75 kW)
Coolant Motor	1.5 HP (1.125 kW)
Automatic Indexing Length	480 mm (18.9")
Workbed Height	760 mm (29.9")
Gross Weight	15500 kgs (34100 lbs)
Floor Space (W x D x H)	6155 x 2245 x 3790 mm (242.3" x 88.4" x 149.2")
