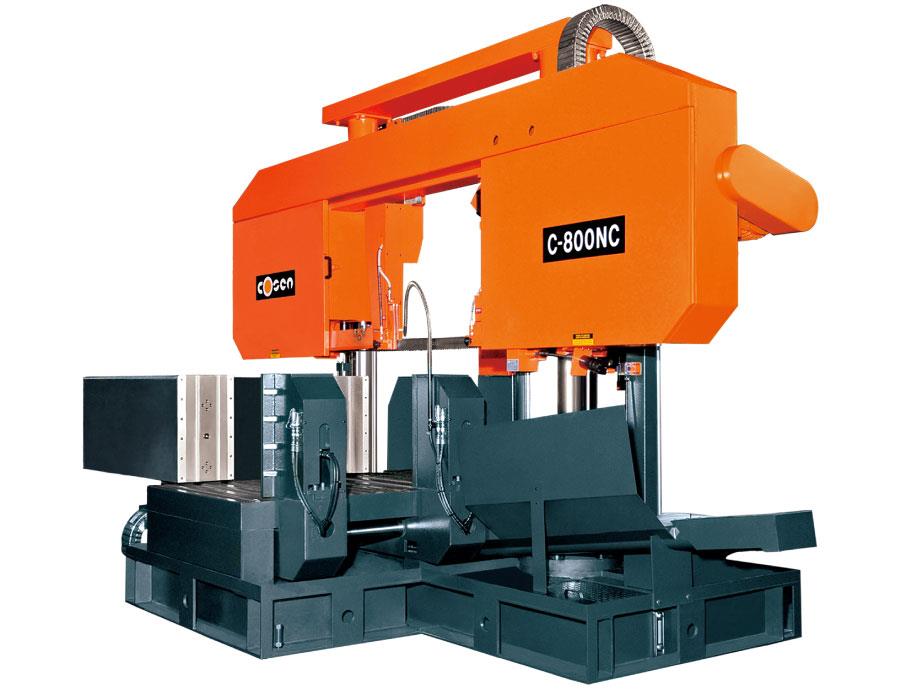

Cosen C-800NC SNC Automatic Saw with Shuttle Vise (Cosen C-800NC)

Smart NC-100 (SNC100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC100 controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for Kerf loss after datainput and requires no manual calculation of number of times to index. Rugged, Dependable, and Advancd Technology, are all words that describe every Cosen SNC-100 Series Sawing Machine.

COSEN C-800NC
Capacity Round	800 mm (31.5")
Capacity Square	800 mm (31.5")
Capacity Rectangle (HxW)	800 x 850 mm (31.5"x33.5")
Blade Speed	15-77 m/min (50-252 ft/min)
Blade Size (LxWxT)	8300x67x1.6mm (326.8"x2.6"x0.06")
Blade Motor	10HP (7.5kW)
Hydraulic Motor	3HP (2.2kW)
Coolant Motor	1/2HP (0.375kW)
Workbed Height	640 mm (25.2")
Gross Weight	6000 kgs (13200 lbs)
Floor Space (LxWxH)	2330x3890x2940mm (92"x153"x116")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
