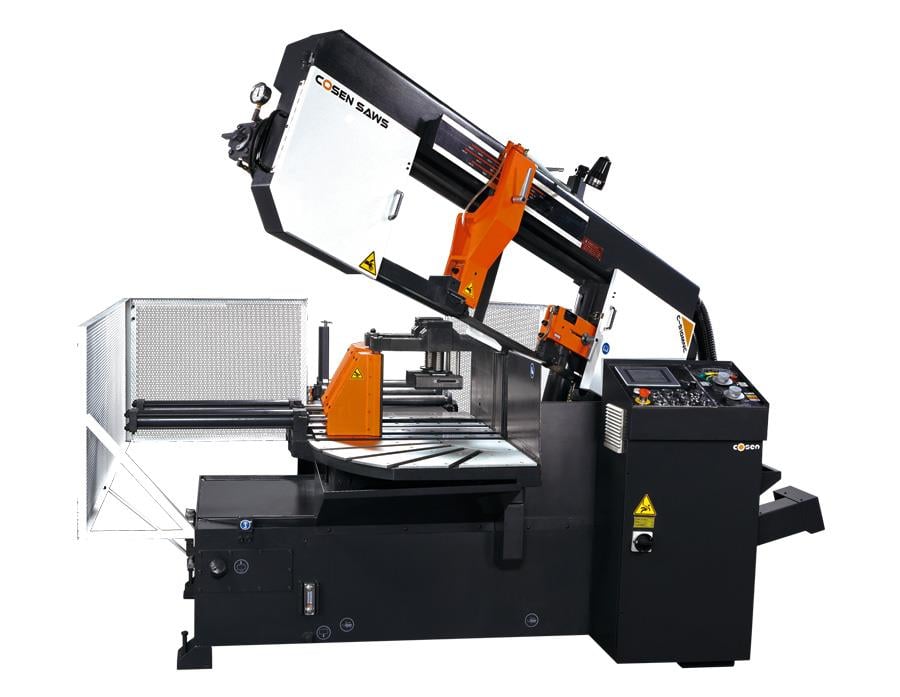

Cosen C-510MNC Fully Programmable Automatic Miter Cutting Bandsaw (Cosen C-510MNC)

Cosen's C-510MNC is a high production fully programmable automatic miter-cutting bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station. The SNC-100 technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation. Cutting information such as blade speed, blade life and error message is clearly displayed for ease of use.

COSEN C-510MNC
Angle	0°	+45°	+60°
Capacity Round	360 mm (14")	360 mm (14")	230 mm (9")
Capacity Rectangle(HxW)	330x510mm	330x330mm	230x230mm
	(13"x20")	(13"x13")	(9"x9")
Blade Speed	15-80 m/min (49-262 fpm)
Blade Size (LxWxT)	4900 x 34 x 1.1 mm (192.9"x 1.3"x 0.04")
Blade Motor	5 HP (3.75 kW)
Hydraulic Motor	1 HP (0.75 kW)
Coolant Motor	1/8 HP (0.09 kW)
Automatic Indexing Length	503 mm (19.8), Max. 6500 mm (256")
Workbed Height	795 mm (31.3)
Gross Weight	2135 kgs (4707 lbs)
Floor Space (LxWxH)	2561 x 3263 x 2170(100.8" x 128.5" x 85.4")
＊Design and specifications are subject to change without notice & obligation.
＊Machines may be shown with some options.
