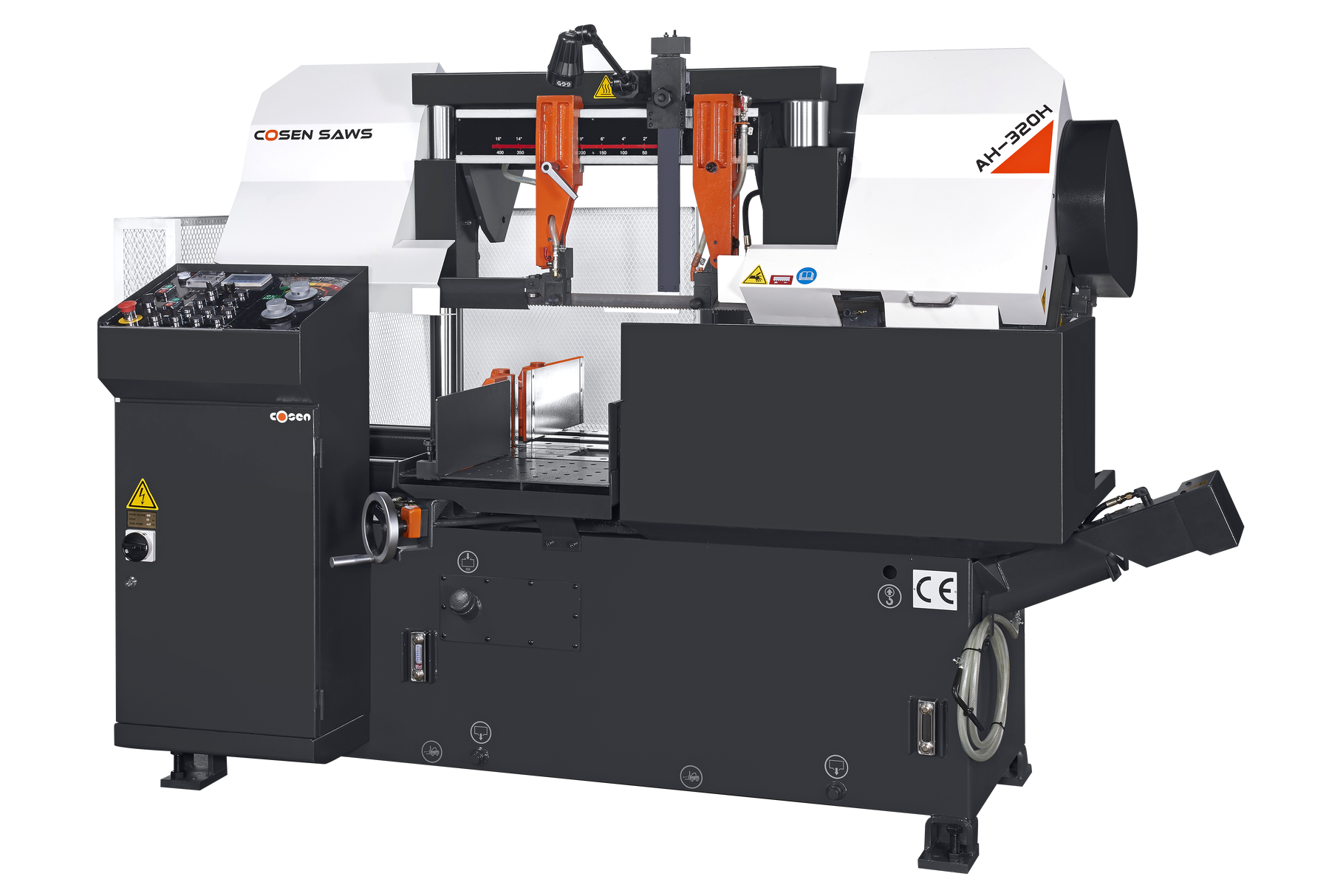

Cosen AH-320H Fully Automatic with Hydraulic Shuttle Vise Band-Saws Machine (AH-320H)

Cosen H-type machines utilize hydraulic shuttle feed system, which offers extremely tight tolerances in both cutting repeatability and accuracy evenat high cutting rates. These machines are built for high to extreme production needs. Ideal for job shops or production facilities requiring long term reliability. AH series band saws offer dependability, precision, and ruggedness at an affordable price.

Standard Features:

● Gantry type
● Infinite blade speed control with inverter
● Split front vise
● Idle wheel motion detector
● Precision pressure and feed rate dual valve
● Hydraulic blade tension device
● Self lubricating carbide and roller guide
● Independent control station
● Built in work light
● Double retracting vise

Optional Accessories:

● Mechanical stepless blade speed control device
● Full stroke hydraulic front/rear vises
● Vibration damper
● Hydraulic nesting fixture
● Power roller table
● Roller table (2M) with side roller
● Vise pressure regulator
● Hydraulic chip conveyor
● Deviation detector

COSEN AH-320H
Capacity Round	320 mm (12.6")
Capacity Square	320 mm (12.6")
Capacity Rectangle (HxW)	320 x 380 mm (12.6"x15")
Blade Speed	15-100 m/min (49.5-330 fpm)
Blade Size (LxWxT)	4240x34x1.1 (167"x1.3"x0.042")
Blade Motor	5HP (3.75kW)
Hydraulic Motor	1HP (0.75kW)
Coolant Motor	1/8HP (0.1kW)
Automatic Indexing Length	403 mm (15.9"), Max. 3627 mm (142.8")
Workbed Height	790 mm (31")
Gross Weight	1700 kgs (3740 lbs)
Floor Space (LxWxH)	2180x2200x1990 mm (85.8"x86.6"x78.3")
＊Design and specifications are subject to change without notice & obligation. ＊Machines may be shown with some options.
