Chiron DZ 12W Magnum Machining center - vertical (Chiron DZ 12W Magnum Machining center - vertical)

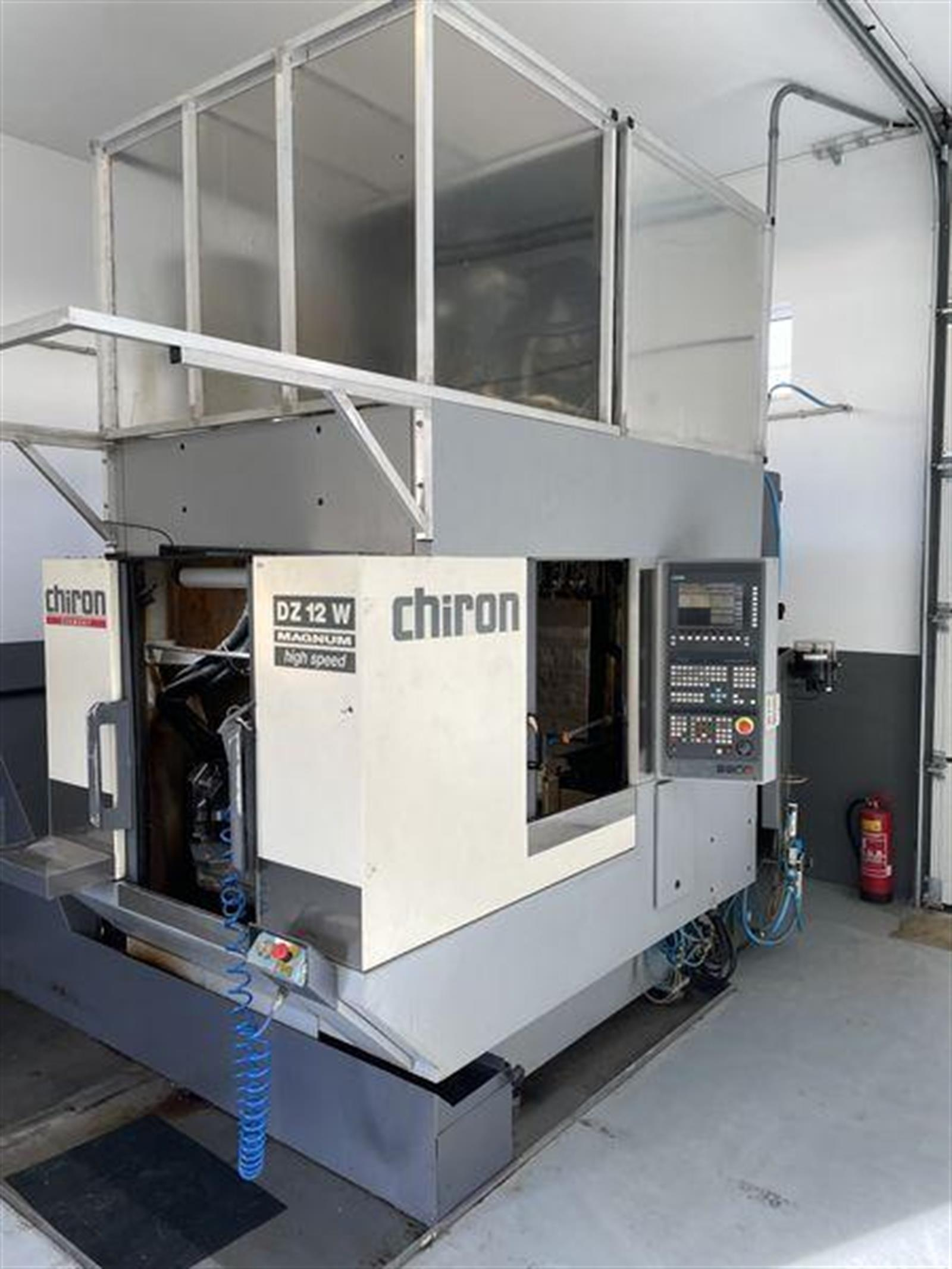

It is a two-spindle with two Peiseler 360-degree rotary tables - the machine has Filtermist mist extraction (see photo), central lubrication of the X, Y, Z axes from SKF, an air-conditioned switchboard and a dismantled laser tool length measurement, approx. 70 tool holders SK40. - the machine comes with some spare parts and 2x new tool arm pistons worth 46,000,- + 2x spare arm - the machine is in good condition, it was well taken care of by a small family business and all repairs were carried out by an authorized service from DE, minor leaks air and necessary replacement of one piston rod and tool arm (new part included).

Axis X	550 mm
Axis Y	300 mm
Axis Z	425 mm
Rotary table (4th axis)	no
Type of CNC
Table length	660 mm
Table width	350 mm
Max. part weight	149.7 kg
Number of tool pockets	70
Spindle taper	SK40
Max. spindle speed	10500 rpm
Spindle motor power	9.5 kW
-------------------
Worked hours
Hours under power
State	good
At local norms	yes
Status	visible
Datasheet	Chiron FZ 12 W Magnum
