Cbc PL3 Socket Fusion Machines (CBC PL3)

Socket fusion machines

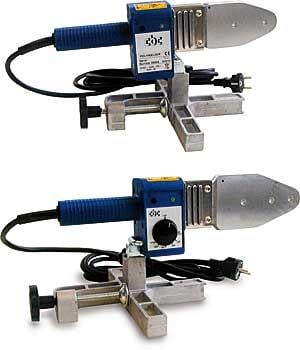

The line of the socket fusion machines PL 3 and PL 3-S were designed and manufactured for the socket welding of pipes and fittings in PP and PVDF exclusively; the bushes are coated with Teflon (PTFE). The socket fusion machines are equipped with thermostat for fixed temperature (TF) or for adjustable temperature (TR). They are supplied in a metal case with support for workbench/ ground, spanners for the fixing of the bushes from Ø 20 until Ø 32 for the model PL 3 and from Ø 20 until Ø 63 for the model PL 3-S.

WELDING CAPACITY
-The PL 3 welds until diam. 50


Welding capacity
ITEM
PL 3	up to diam. 50



Standard packages
ITEM	CODE	BUSHES FOR PIPES OF Ø	VOLT/HZ	W	°C	Kg.
PL 3 TF	32 9710332	20 25 - 32	230/50	550	260 ÷ 285	5,5
PL 3 TR	32 9710333	20 25 - 32	230/50	550	50 ÷ 300	5,5
