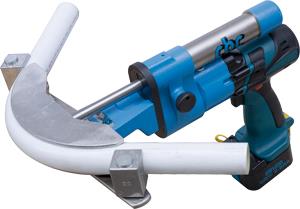

Cbc OB85/SB Portable Battery-Based Pipe Bender (OB85/SB)

Portable battery-based pipe bender

Hydraulic battery-based pipe bending machine to bend annealed copper pipes up to diam. 22mm and multilayer pipes up to diam. 32mm. All the accessories of the OB/85S pipe bender and the OB85/KIT can be applied.

TECHNICAL FEATURES
- Hydraulic double circuit stainless steel and die-cast aluminium body pump (2,9kg.);
-Motor with lithium battery 18V/2.0Ah tension in accordance with CEI dispositions;
- Wide working range thanks to the very long piston stroke;
- Die-cast aluminium formers;
- Steel counterformers with die-cast aluminium laterals with quick coupling.

TYPE OF PIPE	Ø ≤ mm.	Ø ≤ mm.
Annealed copper pipes	22	2,5
Double coated aluminium pipe (type Mepla, Alupex and similar ones) Tubo multicapa	32	3

The bender OB85/SB have the possibility to turn the machine body to adjust at every working situation.

The battery-based hydraulic pipe bender OB85/SB is the ideal tool even to bend copper pipes coated with a PE covering made specifically for the passage of liquid and /or gaseous fuels up to the diam. 22 mm.

STANDARD VERSIONS							Complete bending machine 12 - 22 Cod. 9060080
Body  c. 906000							•
PVC carrying case c. 010143							•
Former for		Ø 12			cod. 112120		•
		Ø 14-15			cod. 112121		•
		Ø 16-18			cod. 112123		•
		Ø 22			cod. 112124		•
Counterformers		Ø 12-14-15			cod. 0001095		•
		Ø 16-18-22			cod. 0001096		•
Peso/Weight/Peso							kg 13,5
STANDARD VERSIONS							Complete bending machine 12 - 22 Cod. 9060085
Body  c. 906000							•
PVC carrying case c. 010143							•
Former for		Ø 12			cod. 112130		•
		Ø 14-15-16			cod. 112131		•
		Ø 18			cod. 112133		•
		Ø 22			cod. 112123.1		•
Counterformers		Ø 12-14-15-16-18			cod. 0001092		•
		Ø 22			cod. 0001093		•
Peso/Weight/Peso							kg 13,5
