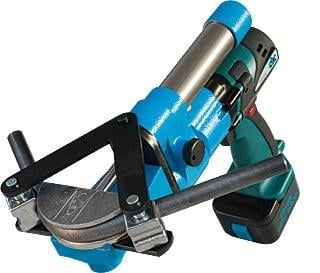

Cbc OB85/SB Hyd.Pipe Battery-Based Hydraulic Pipe Bender For Oil-Hydraulics (OB85/SB Hyd.Pipe)

Battery-based hydraulic pipe bender for oil-hydraulics

Battery-based hydraulic pipe bender for bending bonderized and stainless steel pipes from diameter 6 to 18mm.
Motor with lithium battery 18V/2.0Ah compliant with CEI standards.
For bending:

- Annealed copper pipes of max. diameter 22x1 mm;
- Annealed stainless steel pipes of max. diameter 18x1,2 mm;
- Bonderized steel pipes of max. diameter 18x2 mm.

STANDARD VERSIONS	A 6 - 22 Cod. 9050050	B 10 - 22 Cod. 9050055	C 1/4” - 7/8” Cod. 9050060
Pump body c. 906000-0	•	•	•
PVC carrying case c. 010143	•	•	•

Formers	A 6 - 22 Cod. 9050050	B 10 - 22 Cod. 9050055	C 1/4” - 7/8” Cod. 9050060
c.134005.1 Ø 6    R 31	•
c.134006.1 Ø 8    R 31	•
c.112035.1 Ø 10  R 31	•	•
c.112036.1 Ø 12  R 34	•	•
c.112037.1 Ø 14  R 41	•	•
c.112038.1 Ø 15  R 48	•	•
c.112065.1 Ø 16  R 63	•	•
c.112041.1 Ø 18  R 72	•	•
c.112042.1 Ø 20  R 80	•	•
c.112043.1 Ø 22  R 88	•	•
c.112086.1 1/4"   R 31  (6.35)			•
c.112087.1 5/16" R 31  (9.94)			•
c.112088.1 3/8"   R 31  (9.52)			•
c.112089.1 1/2"   R 34  (12.70)			•
c.112090.1 5/8"   R 49  (15.88)			•
c.112091.1 3/4"   R 80  (19,05)			•
c.112092.1 7/8"   R 88  (22.22)			•
Counterformers
c. 000003                 10-12	•	•	•
c. 000059                 14-17 rinf.	•	•	•
c. 000042                 18-22 rinf.	•	•	•
c. 613062            tie-rod 14-17
c. 613063            tie-rod 18-22
Weight	kg 14,5	kg 14,3	kg 14,3
