Cbc OB/2003 E Electrohydraulic Pipe Bending Machine (OB/2003 E)

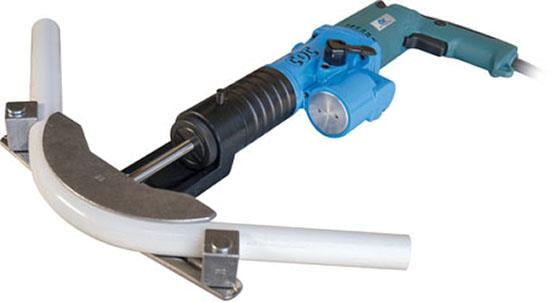

Electrohydraulic bender

Electrohydraulic bending machine to bend: annealed copper pipes up to Ø 22, stainless/ bonderized steel pipes up to Ø 22 and multilayer pipes up to Ø 50. You can use all the accessories of the bending machines OB/855 and OB/KIT.

- Aluminium body pump.
- CEI double isolation motor 230 V 56/60HZ - 600 W - 2,6A - RPM 600.
- Die-casted aluminium formers.
- Counterformers in galvanized steel with die-casted aluminium laterals for quick coupling.

Perfect to bend double coated aluminium (type Mepla, Alupex and similar) till Ø 50! The bender OB2003E is perfect to bend double coated aluminium (type Mepla,Alupex and similar) from Ø 40 (R.151) till Ø 50 (R.199).

TYPE OF PIPE	Ø ≤ mm.	Ø ≤ mm.
Annealed copper pipes	22	2,5
Double coated aluminium pipe (type Mepla, Alupex and similar ones) Tubo multicapa	50	4

- Aluminium body pump.
- CEI double isolation motor 230 V 56/60HZ - 600 W - 2,6A - RPM 600.
- Die-casted aluminium formers.
- Counterformers in galvanized steel with die-casted aluminium laterals for quick coupling.

STANDARD VERSIONS

A 10 - 22 Cod. 9070001

B 10 - 22 Cod. 9070005

C 10 - 26 Cod. 9070010

D 10 - 32 Cod. 9070015

E 16 - 26 Cod. 9070018

F 16 - 32 Cod. 9070025

G 14 - 32 Cod. 9070030

H 3/8" - 7/8" Cod. 9070040

I 1/4" - 7/8" Cod. 9070045

Body c. 907000

•

•

•

•

•

•

•

•

•

PVC carrying case  c. 010121

•

•

•

•

•

•

•

•

•

Formers

10 - 12 14 - 16 18 - 20 22

10 - 12 14 - 16 18 - 20 22

10 - 12 14 - 16 18 - 20 22 - 26

10 - 12 14 - 16 18 - 20 22 - 26 32

16 - 20 26

16 - 20 26 - 32

14 - 16 20 - 26 32

3/8" 1/2" 5/8" 3/4" 7/8"

1/4" 5/16" 3/8" - 1/2" 5/8" - 3/4" 7/8"

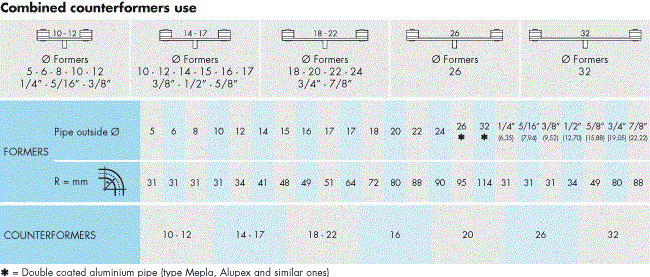

Counterformers

10 - 12 14 - 17 18 - 22

14 - 17 18 - 22

10 - 12 14 - 17 18 - 22 26

10 - 12 14 - 17 18 - 22 26 32

16 20 26

16 20 26 32

16 20 26 32

14 - 17 18 - 22

10 - 12 14 - 17 18 - 22

Weight

kg 12,2

kg 12,1

kg 12,8

kg 13,5

kg 12,8

kg 13,5

kg 13,7

kg 11,5

kg 12,2
