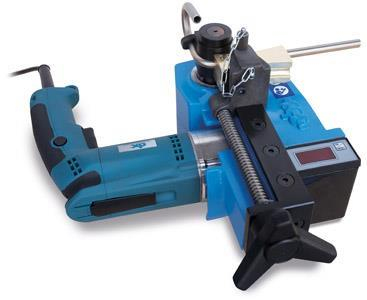

Cbc FLEX 22V Portable Pipe Bending Machine (FLEX 22V)

Portable pipe bending machine

Light and compact tool for pipe bending also on site. We created model FLEX22V, with a display for bending angle for having a more accurate bending results.

Practical transport case
(code 000738.1).

TECHNICAL FEATURES:

- Aluminium body
- Double-isulated motor CEI 220V/50 Hz 400W, (110V on request), 0-65 RPM
- Digital display (mod. Flex22/V) powered by four batteries 1,5 V
- Maximum bending angle: 180°
- Weight kg 7,5 (FLEX22) and kg 8 (FLEX22/V)

• Practical folding stand allows a confortable work and easy carriage.
• Aluminium standard formers with cast iron hook with bending radius 3 times pipe's diameter from Ø 10 up to 30 mm.

1.  Bronze twin grooved guide for pipes from 10 up to 30 mm.
2. Cast iron single grooved guide for pipes from 24 up to 30 mm.
3. Universal roller to be used with thick pipes (3 mm thickness) like gas pipes, with diameter bigger than 22 mm.
