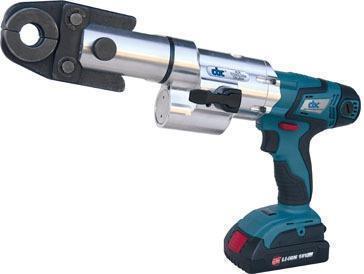

Cbc EP 3 TH (Henco - Brasstech - Bucchi Comap - Purmo Sitec PressGabotherm - Tiemme Cobrapress - Comisa) Automatic Pressfitting System (EP 3 TH)

Automatic press only with battery motor. Maximum pressing diameter 32 mm. Battery 18V - 2,0Ah. Battery charger included. Compatible with the following systems: H - HA - U - SV - TH - M - UC

• EP - CONTROL
  Instrument for checking the pressmachine’s perfect calibration.
• Expander for pipes in annealed copper: From diam. 8 to 42mm - thickness 1mm and from Ø 3/8” to 1”5/8 wht - thickness 1mm.
• Machine's head turns 360°

TH (Henco - Brasstech - Bucchi Comap - Purmo Sitec PressGabotherm - Tiemme Cobrapress - Comisa)
CODE	Ø	CODE	Ø
965514TH	14	965516TH	16
965518TH	18	965520TH	20
965526TH	26	965532TH	32



TECHNICAL FEATURES
- Aluminium hydraulic pump’s body.
- 18 V battery motor - 2.0 Ah.
- Jaws in tempered steel.
- Weight with battery: Kg 2,9.

STANDARD VERSIONS	TH C. 9690260
Machine c. 9690100	•
Battery 12 V - 2.0 Ah c. 008481	•
Battery charger c. 008482	•
Pressing tongs	16-20-26
	TH
Plastic carrying case	•
EP - Control Mini c. 965010	•
Weigh / kg	9,7
