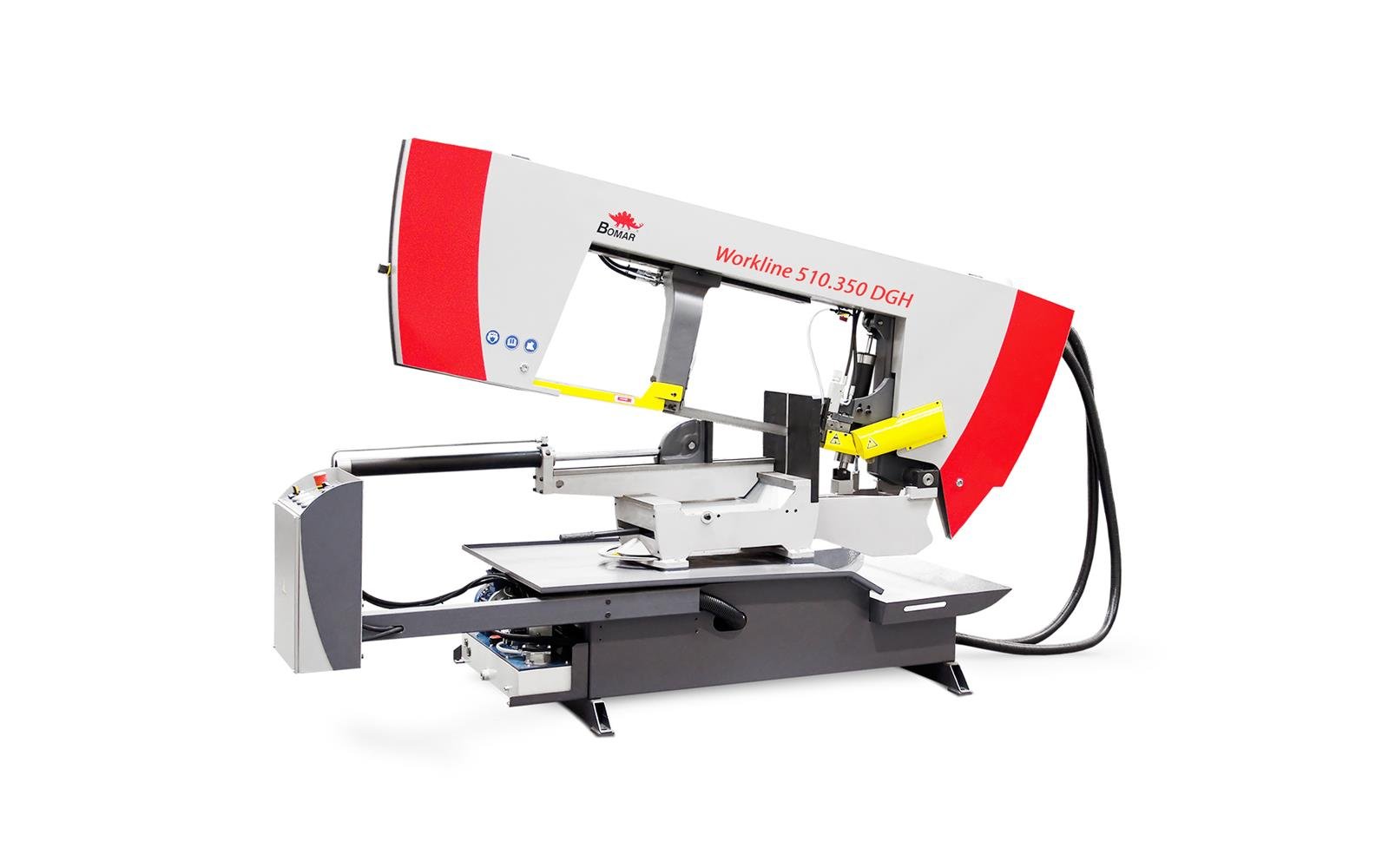

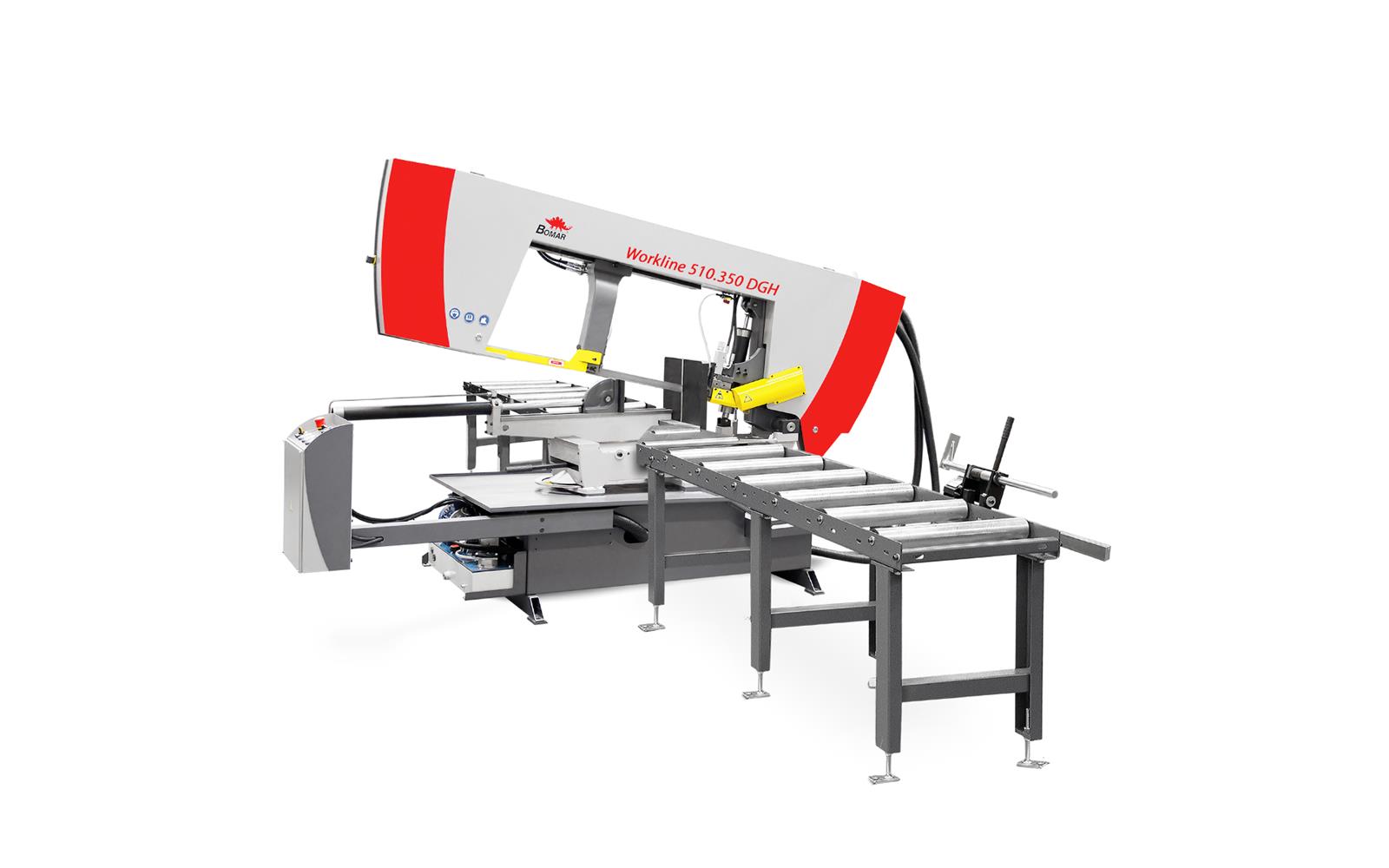

This semiautomatic bandsaw, designed for double-sided mitre cuts and for cutting material up to 350 mm in diameter, provides high quality at an affordable price.

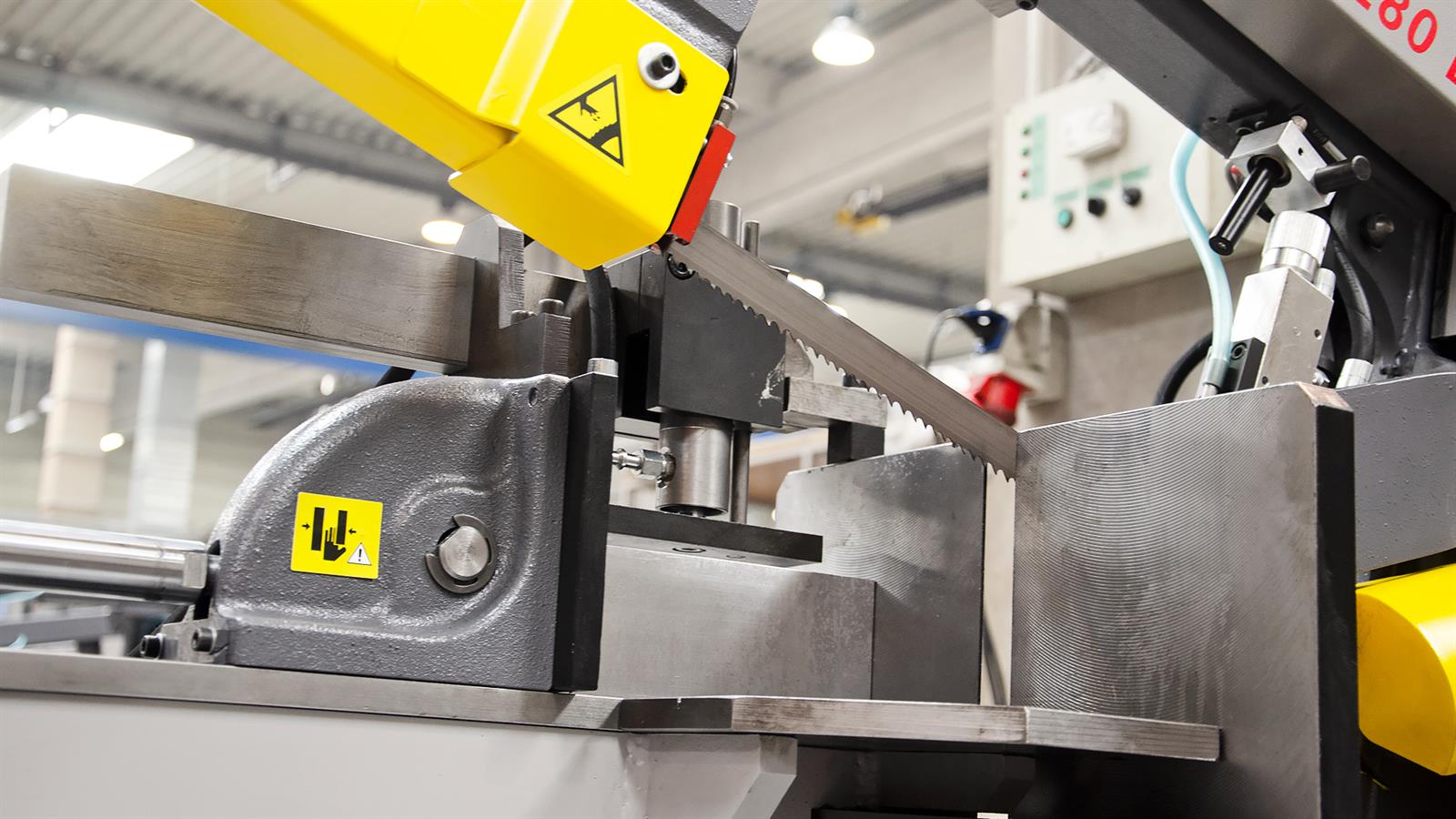

The excellent cutting power results from these features: a hardmetal band precision guide, an arm joint laid in slide bearings, a 34 mm high saw band, and a synchronous running brush for chips disposal.

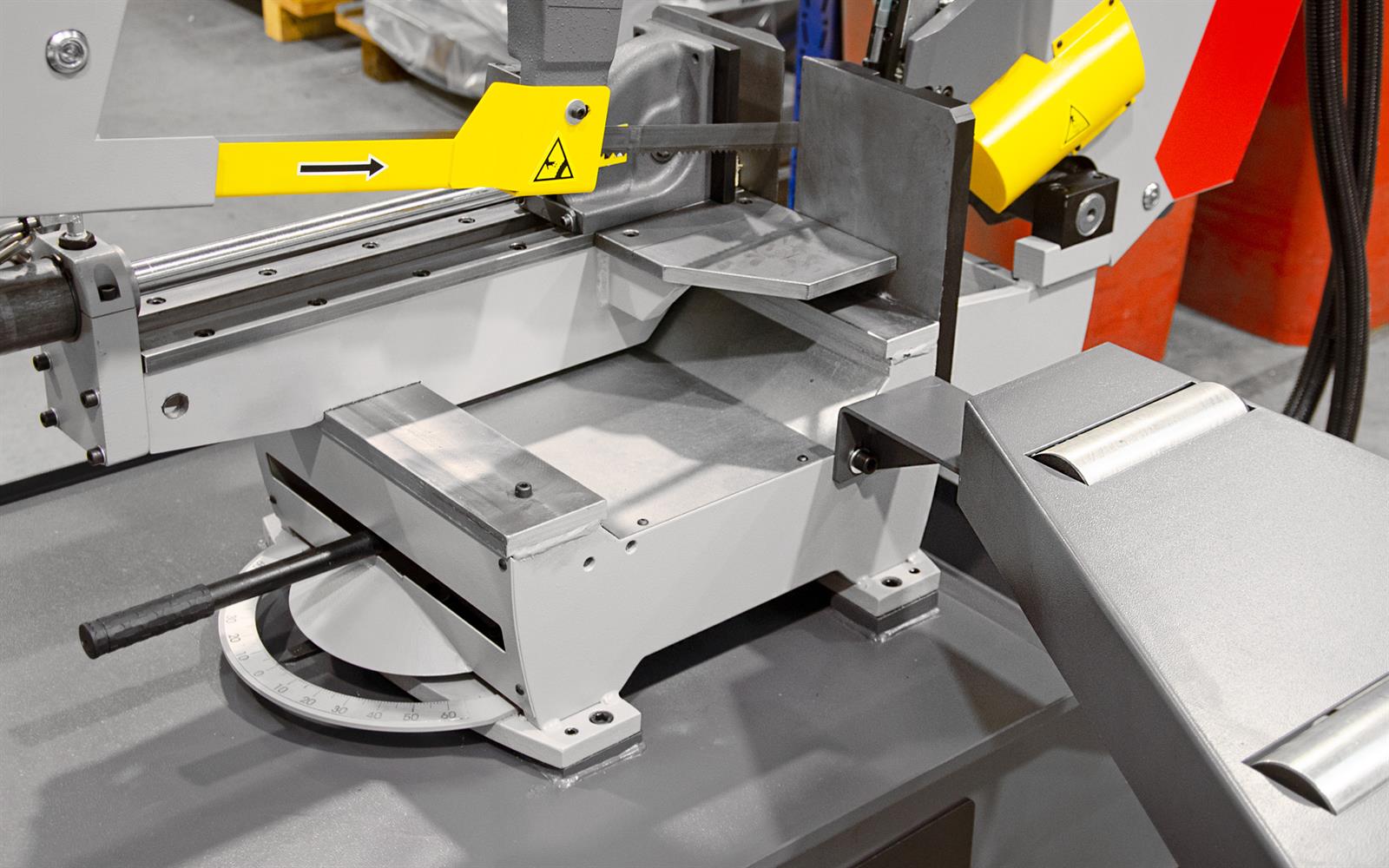

Material clamping and arm downfeed are controlled hydraulically, material feed is controlled manually.
The whole work cycle is completed at the press of the Start button: the material is clamped, the saw band starts up, cutting is carried out, the arm is raised to the default position, and the vice is opened.

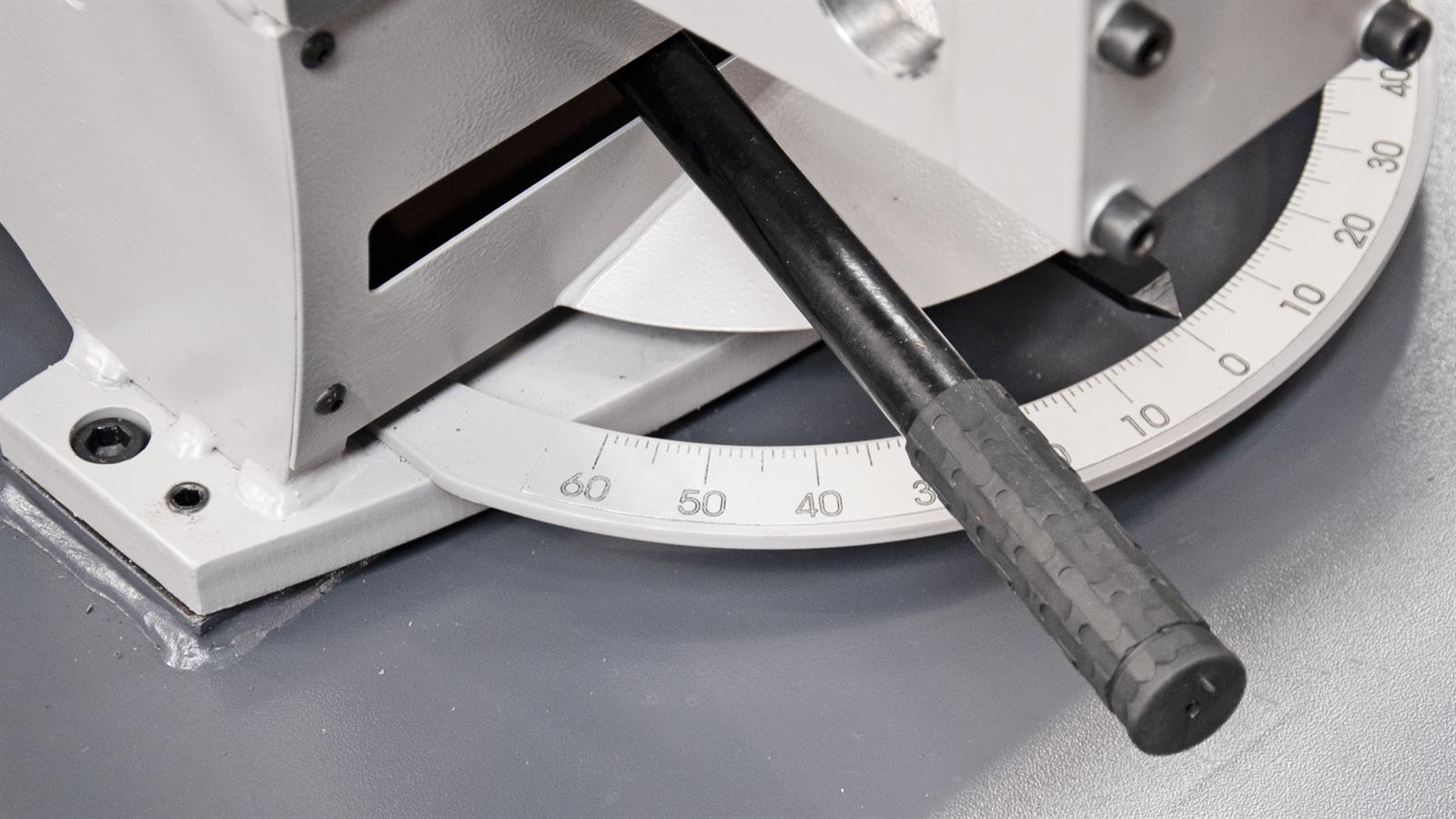

After switching the machine to the manual mode, all functions may be controlled separately. Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely.

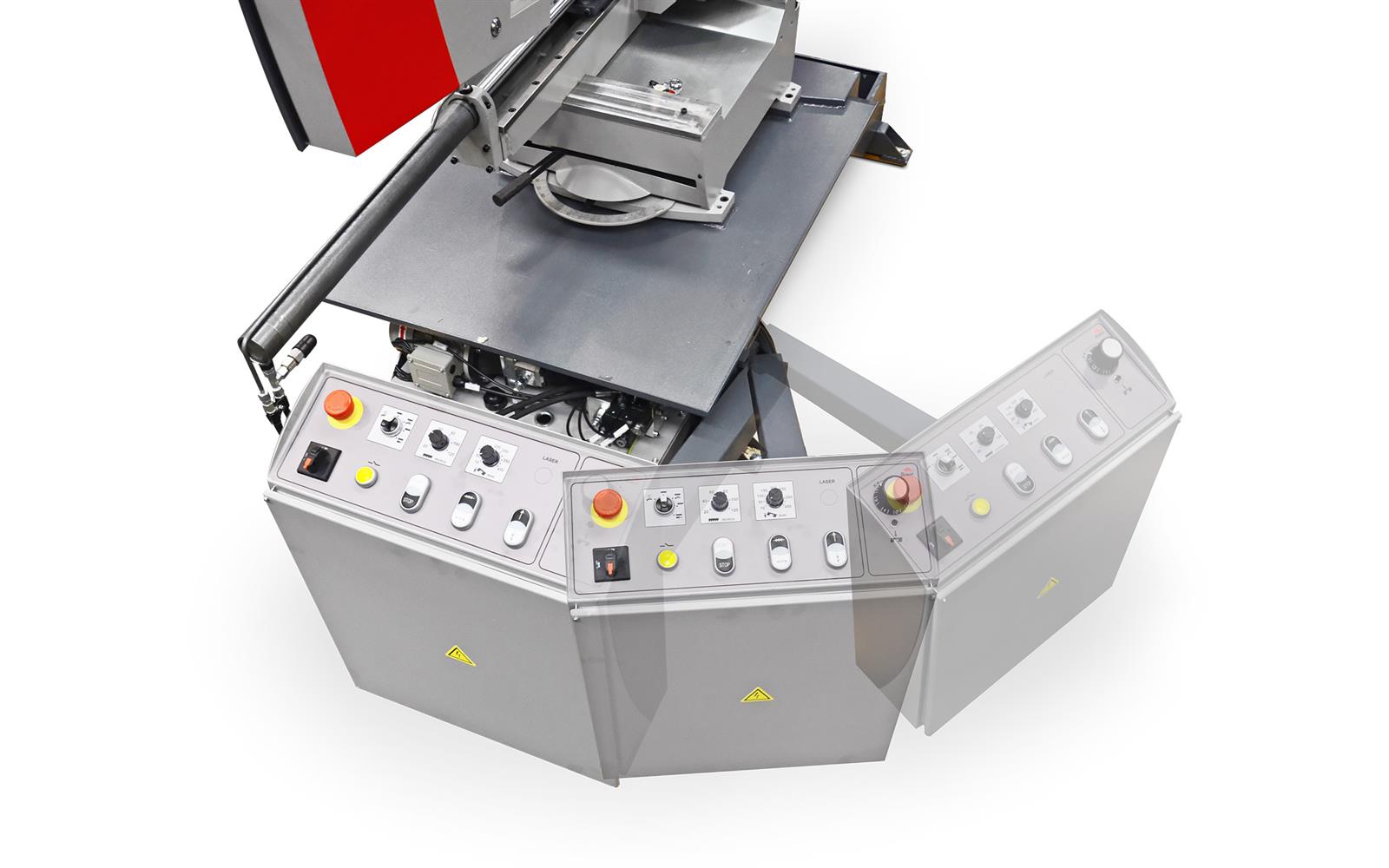

The saw band speed is set on the ergonomic control panel located in the front of the machine.
The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.
Standard equipment of Workline semiautomatic machines includes automatic downfeed pressure regulation dependent on the resistance of the processed material.
Key features
