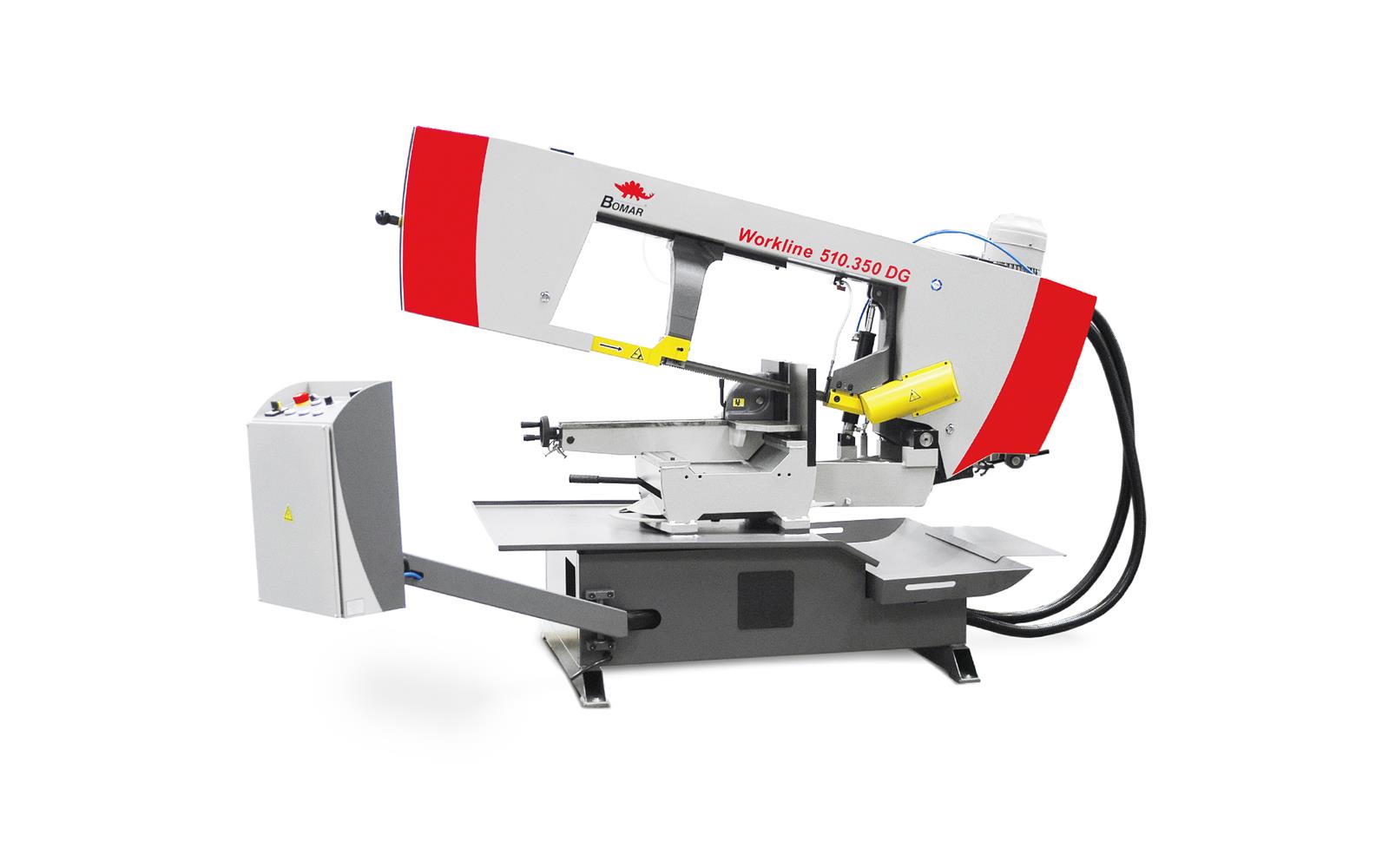

This gravity bandsaw is designed for both-sided mitre cuts and for cutting material up to 350 mm in diameter. The machine provides high quality at an affordable price. The excellent cutting power results from these features: a hardmetal band precision guide, an arm joint laid in slide bearings, a 34 mm high saw band, and a synchronous running brush for chips disposal.

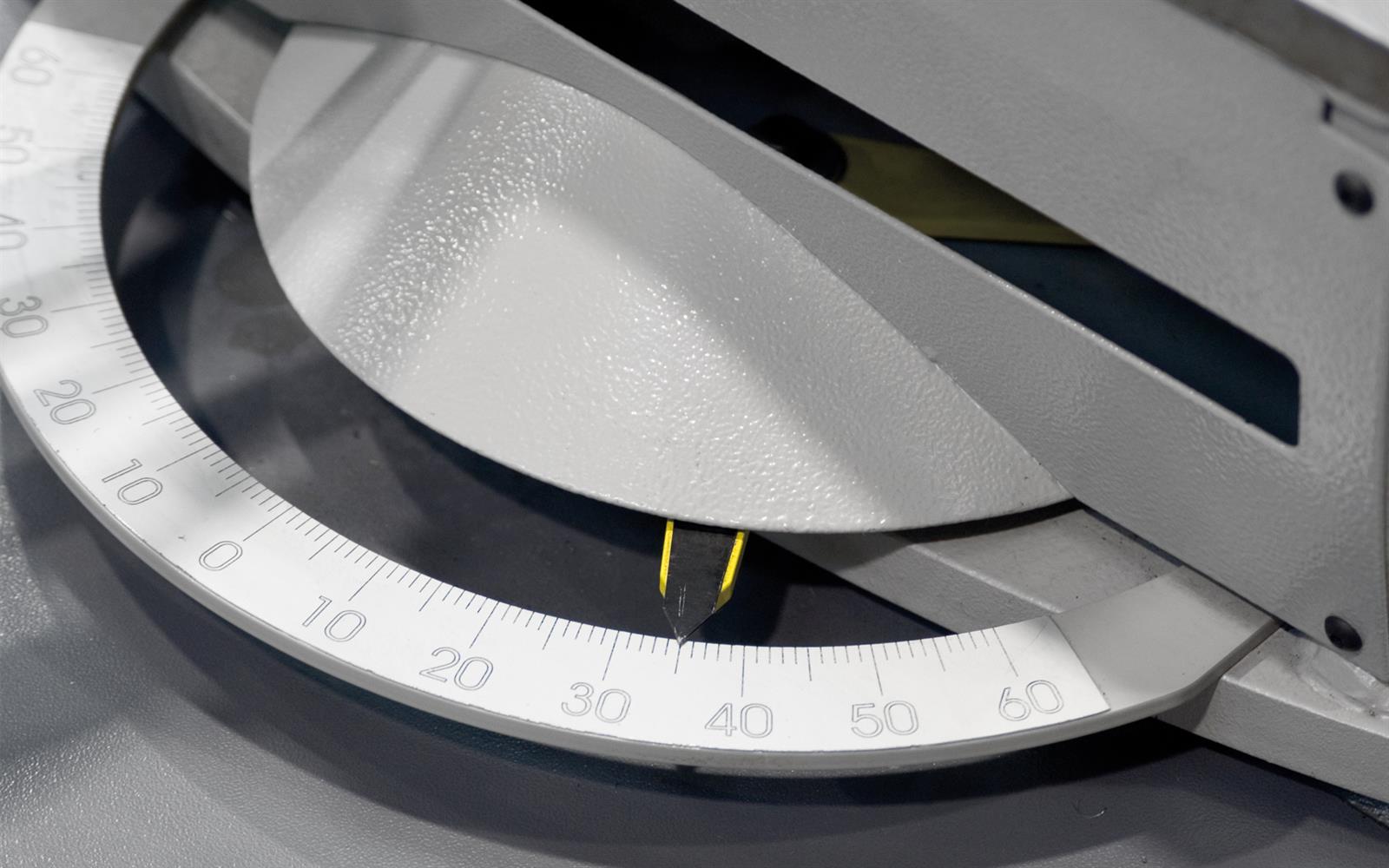

The work cycle starts with manual lifting of the arm to the required position and setting the angle for mitre cuts. Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely. The material is inserted and clamped.

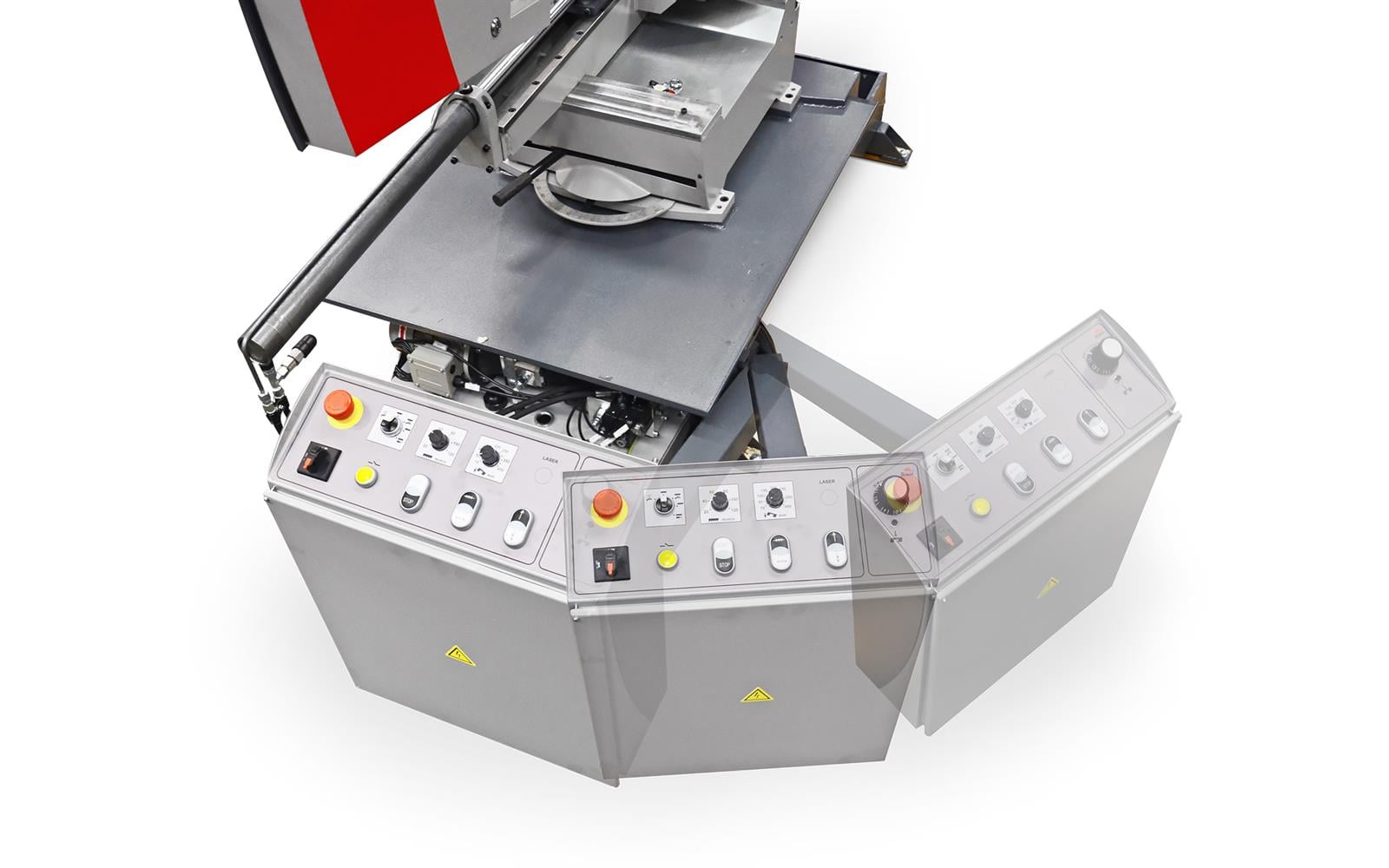

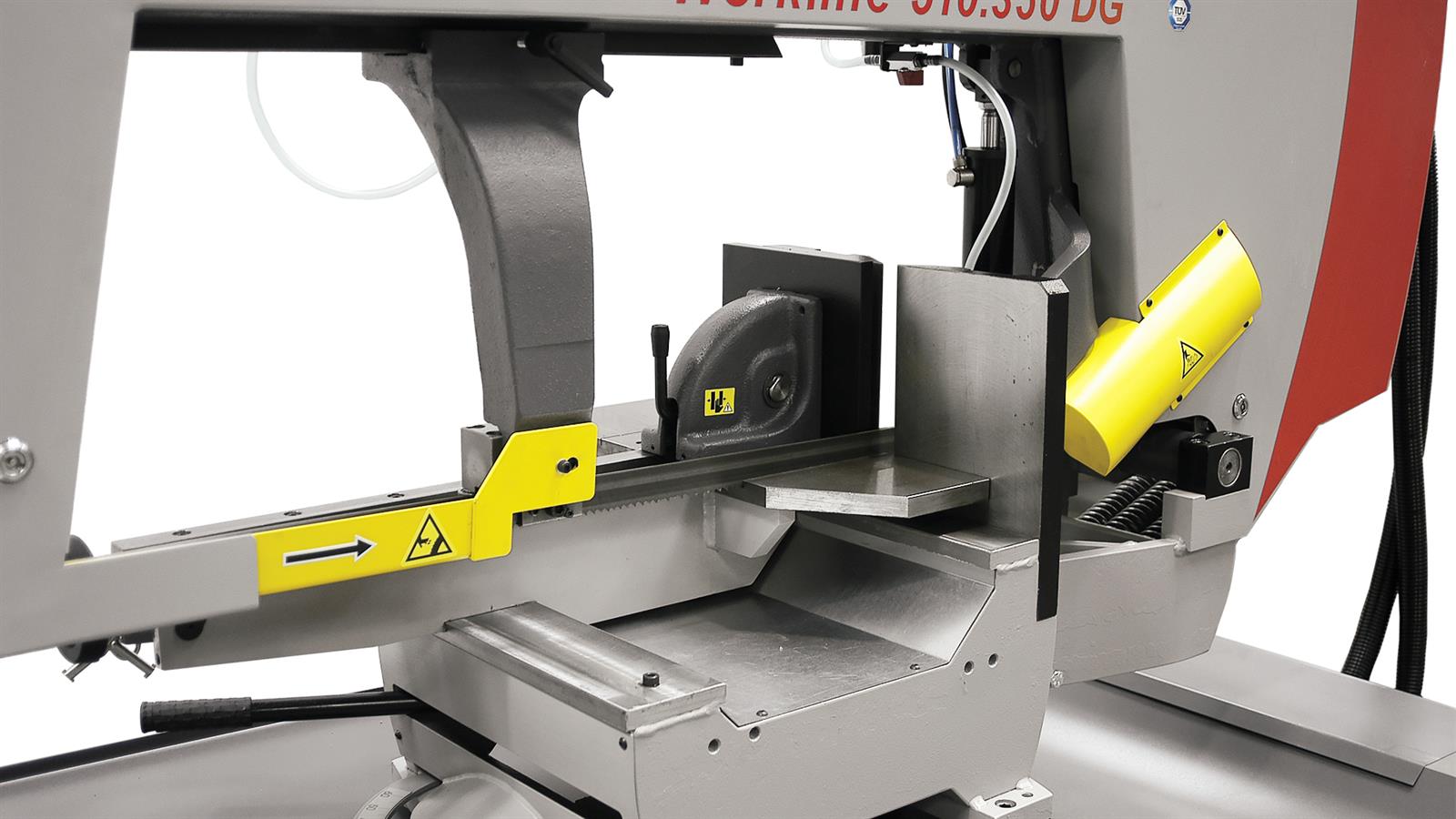

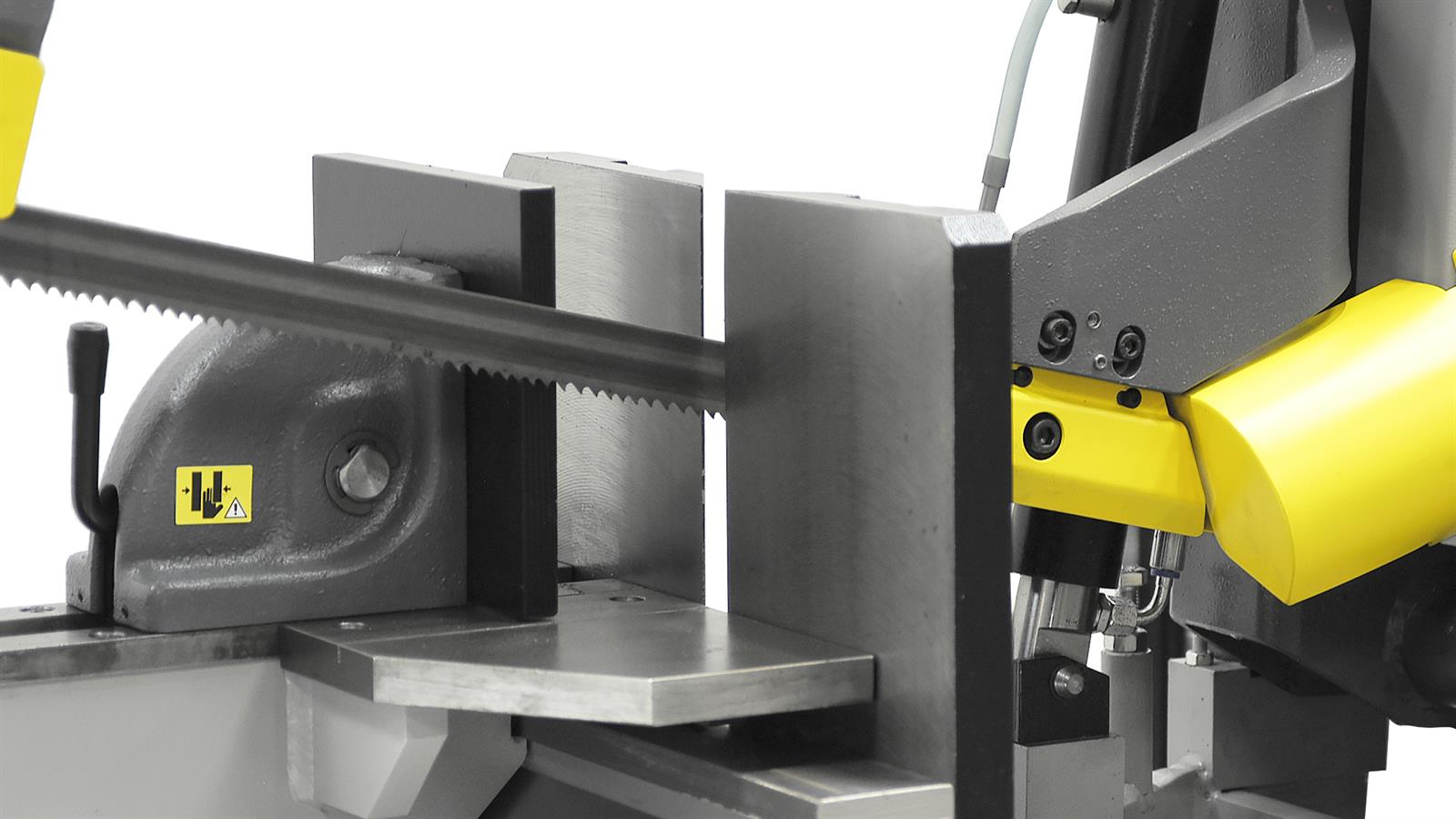

An innovated vice allows the material to be clamped in several ways. The saw band speed is set on the ergonomic control panel located in the front of the machine.
The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.
The machine is started by pressing the Start button, the arm downfeed speed is set with an overflow valve, and the cutting is performed. When the cutting is completed, the arm remains in the lower position and the band turns off. A wide range of accessories is available, such as oil mist cooling and lubrication (Micronizer), hydraulic saw band tension indicator, or laser liner marking the cut location.
The machine is intended for occasional cutting profile as well as full materials of smaller and medium diameters in one-shift operation workshops.
