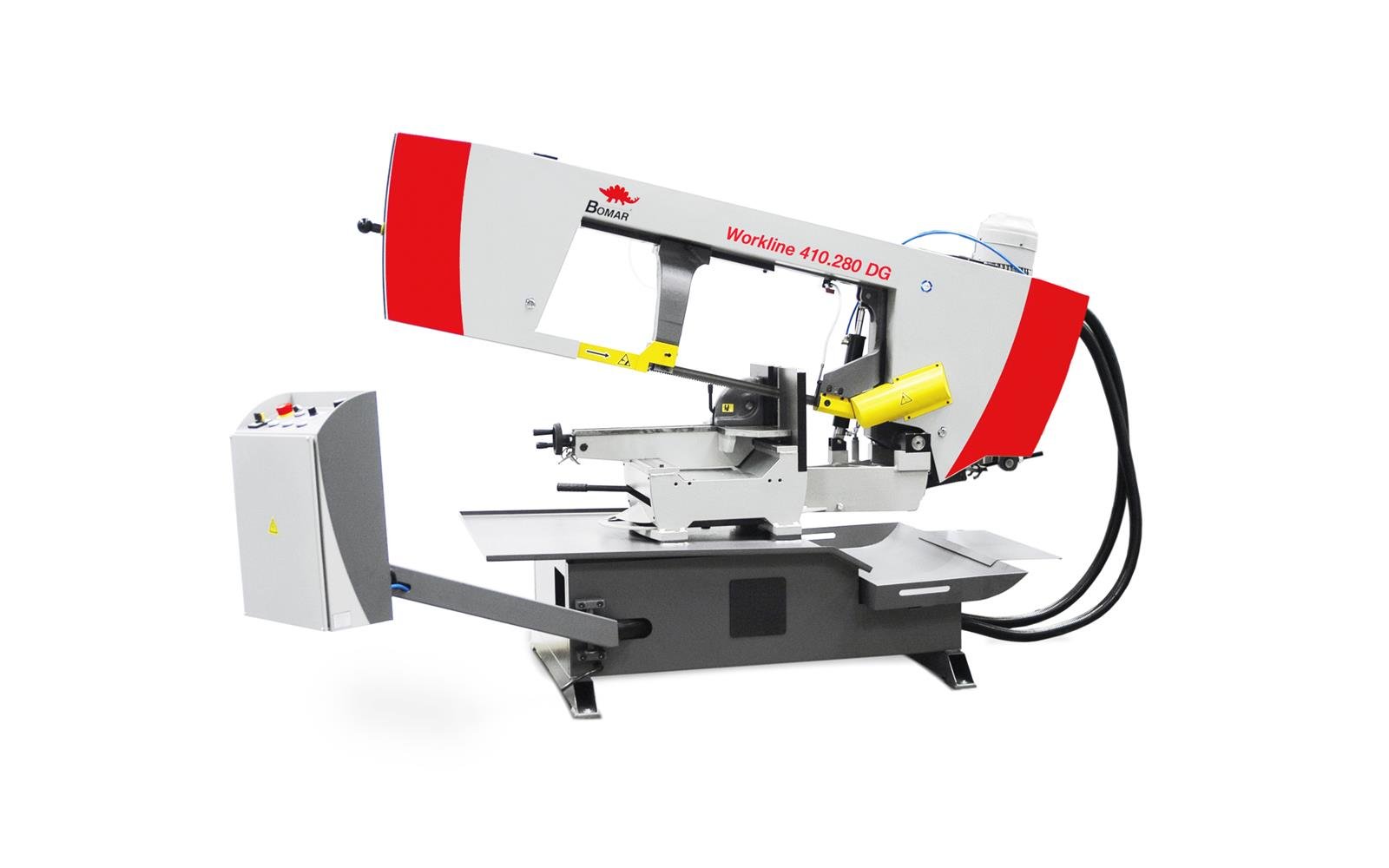

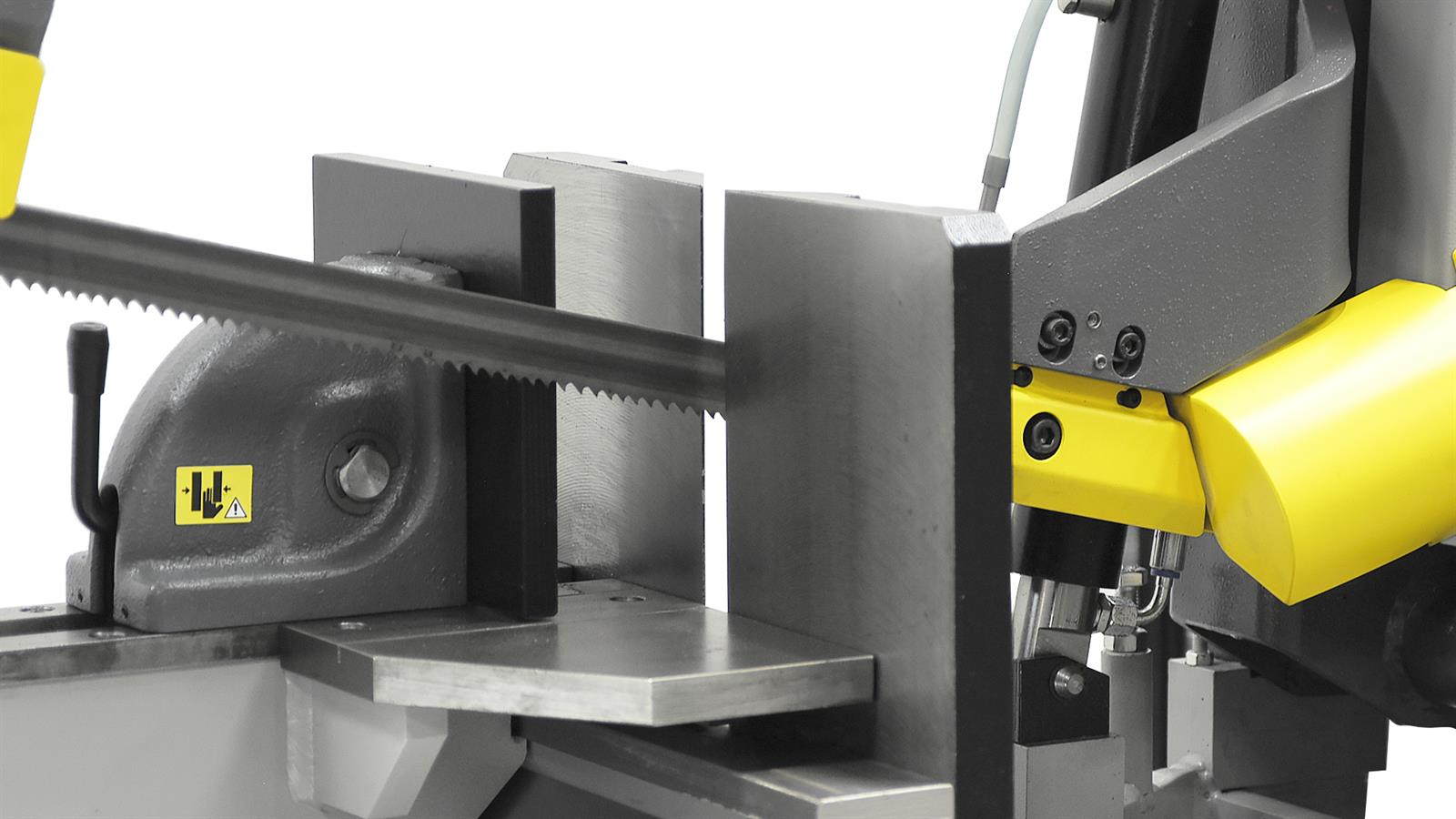

This gravity bandsaw, designed for both-sided mitre cuts and for cutting material up to 280 mm in diameter, provides high quality at an affordable price. Its excellent cutting power results from these features: a hard- metal band precision guide, an arm joint laid in slide bearings, a 27 mm high saw band, and a synchronous running brush for chips disposal.

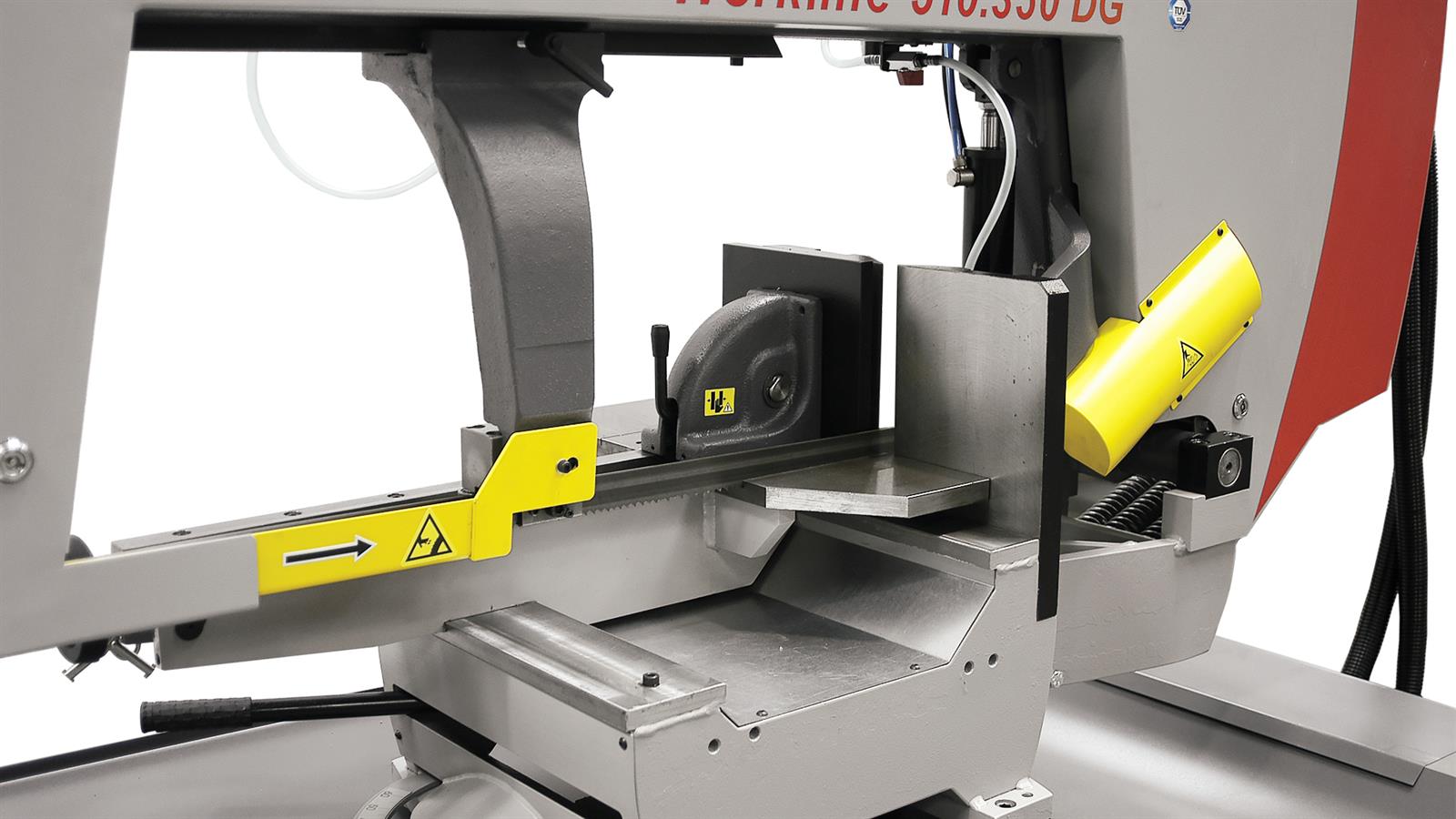

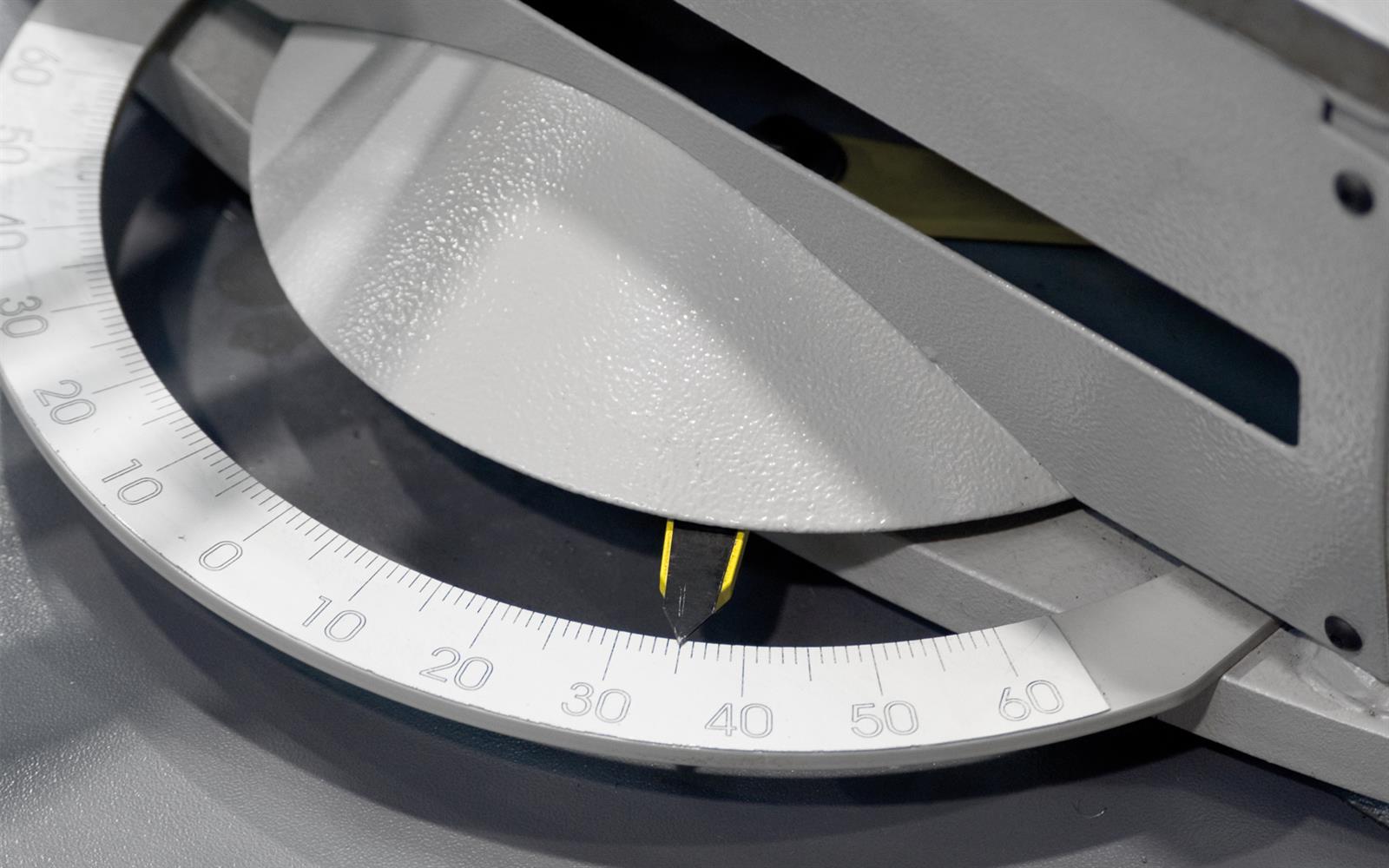

The work cycle starts with manual lifting of the arm to the required position and setting the angle for mitre cuts. Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely. The material is inserted and clamped. An innovated vice allows the material to be clamped in several ways.

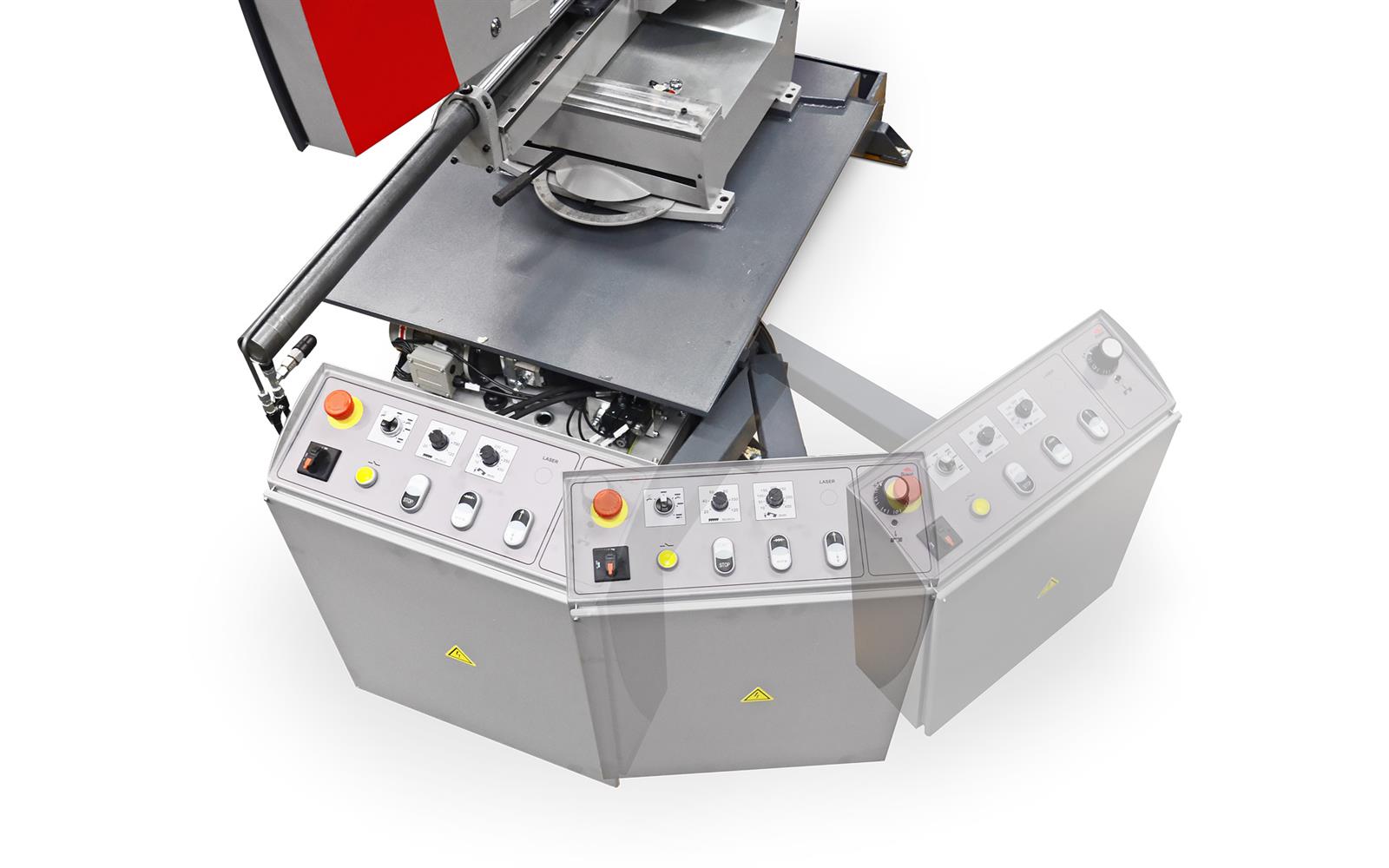

The saw band speed is set on the ergonomic control panel lo- cated in the front of the machine. The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.
The machine is started by pressing the Start button, the arm downfeed speed is set with an overflow valve, and the cutting is performed. When the cutting is completed, the arm remains in the lower position and the saw band turns off. The machine is intended for occasional cutting profile as well as full materials of smaller diameters in one-shift operation workshops.
Key features
