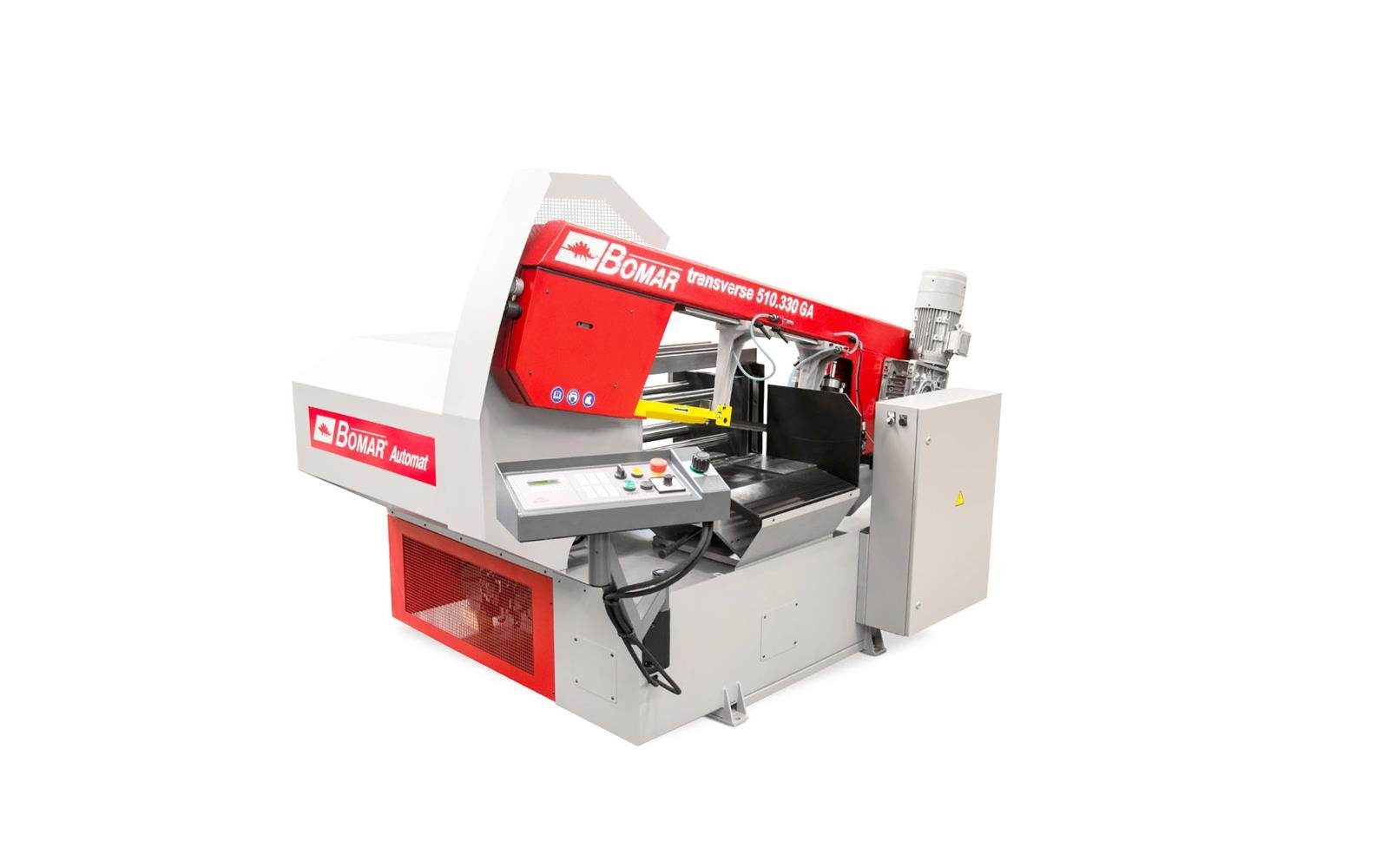

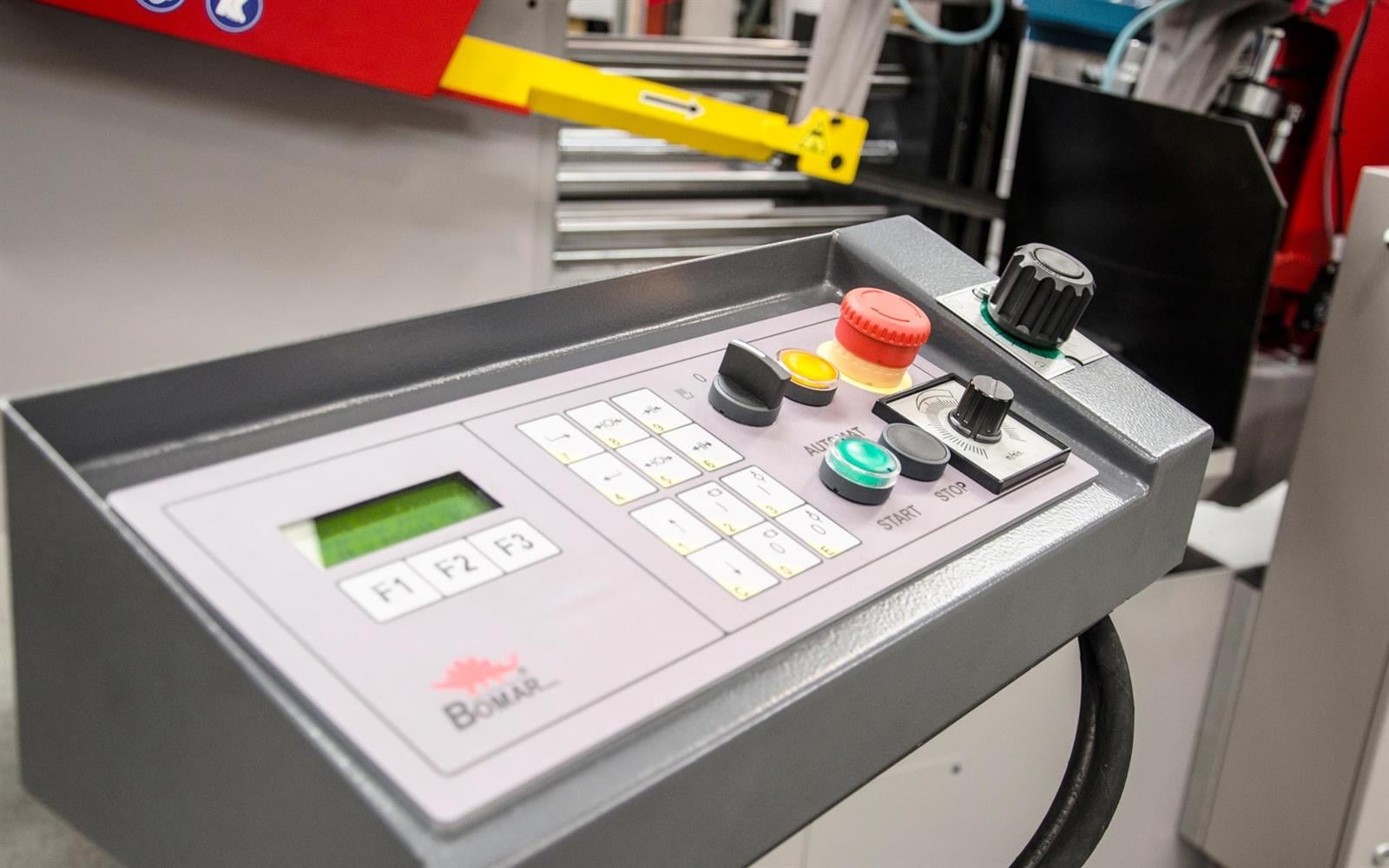

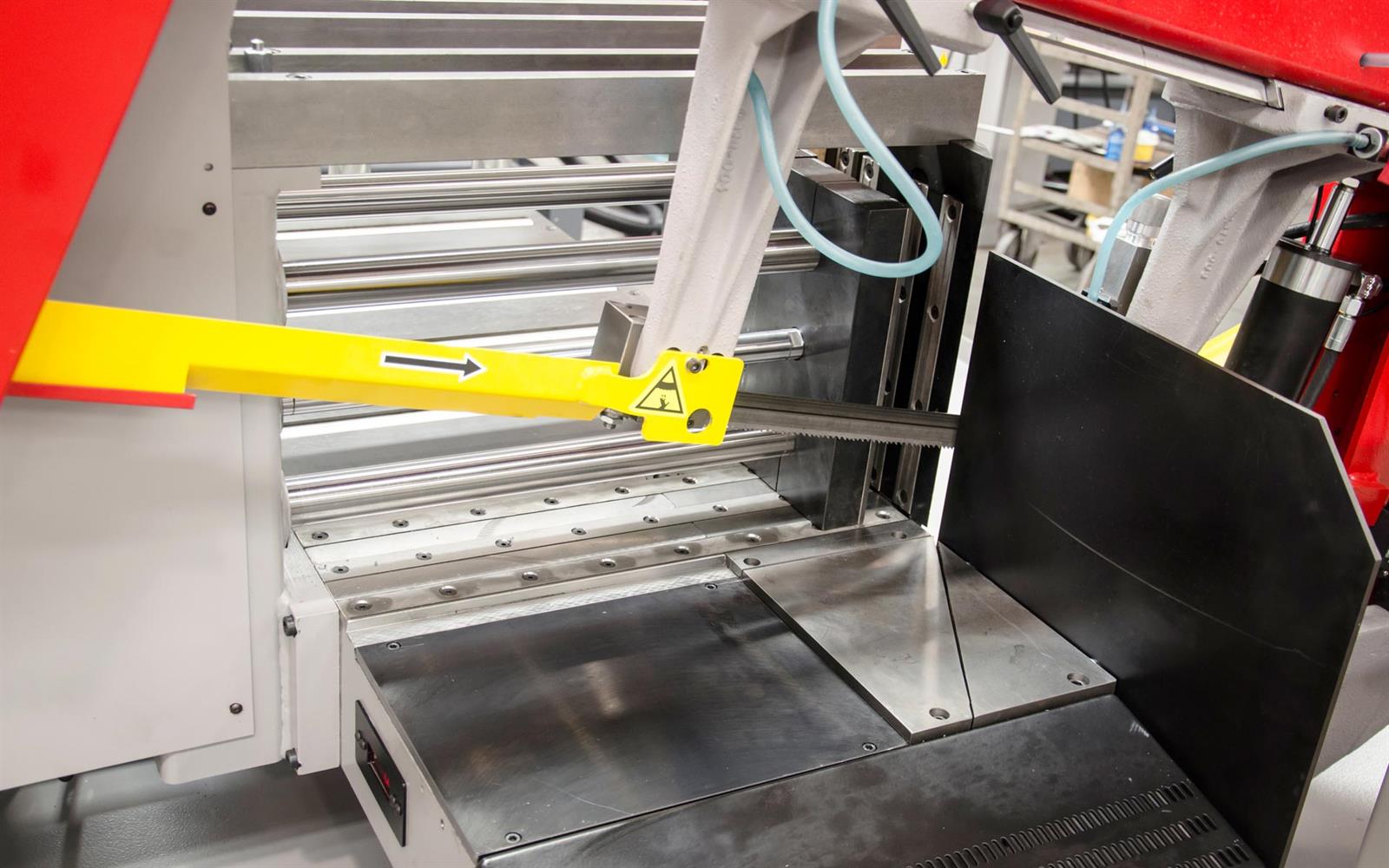

An automatic, single-side turning, hydraulic band saw for cutting material up to 330 mm in diameter. The articulated, robust welded arm utilizes a precise three-sided hardmetal guide for the 34 mm saw band and is laid in preloaded conical bearings; these two features are important for quality and precise cutting. Control elements concentrated on a panel located in the front guarantee comfortable operation of the machine; communication and programming is done via a lighted, easy-to-read display.

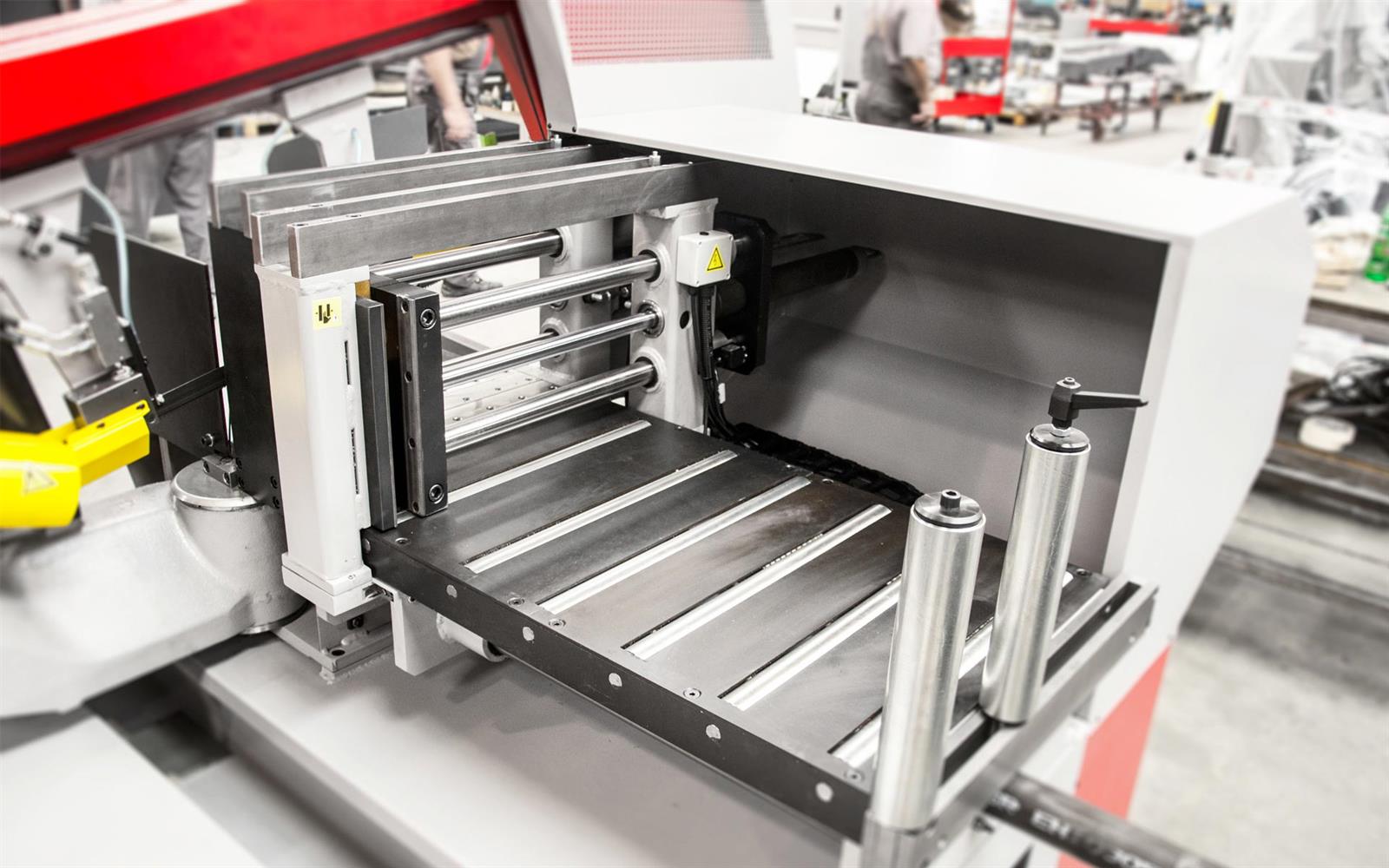

The oating feeding vice prevents pos- sible collisions with the material; the length of an individual feed is 600 mm. The standard version of the machine is tted with these additional devices: a digital indicator of the arm turning, a display of the band’s speed changed by a frequency convertor, saved preset positions of the arm and vice after cutting, and automatic change of the arm downfeed speed dependent on the material shape.
The working cycle starts by necessary preset- ting the machine to the operating position and by turning the arm for mitre cuts. When the material is inserted and the machine programmed, the material is clamped with the feeding hydraulic vice, fed in the required length and then clamped with the main vice, and the saw band starts running. Using an over ow valve, the operator selects the band’s optimal speed and the arm downfeed speed.

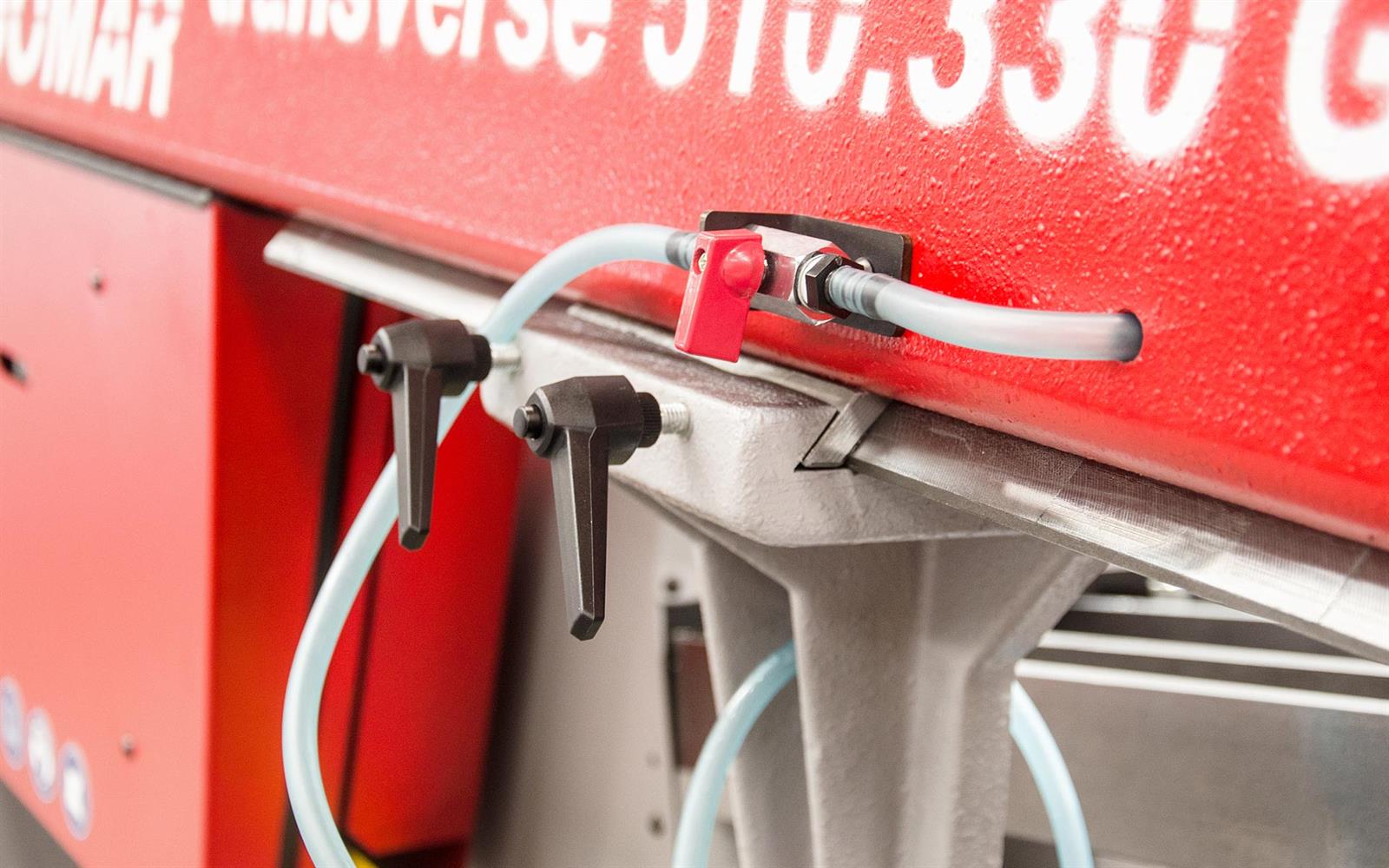

When the cutting is completed, the arm returns to its top position and the vice opens to the preset position. Then the cycle repeats until the task is completed or all the material processed. Thanks to the system of input and output roller conveyors the cutting line may be assembled as required by the customer. Further, a wide range of additional equipment is available: oil mist cooling and greasing (Micronizer), a hydraulic bundle clamping device for both vices, a hydraulic band tensioning indicator, a laser liner showing the future cut location, and many other devices supplied upon request.
Key features
