Bomar ProfiCut 275.230 DG Bandsaws (Bomar ProfiCut 275.230 DG Bandsaws)

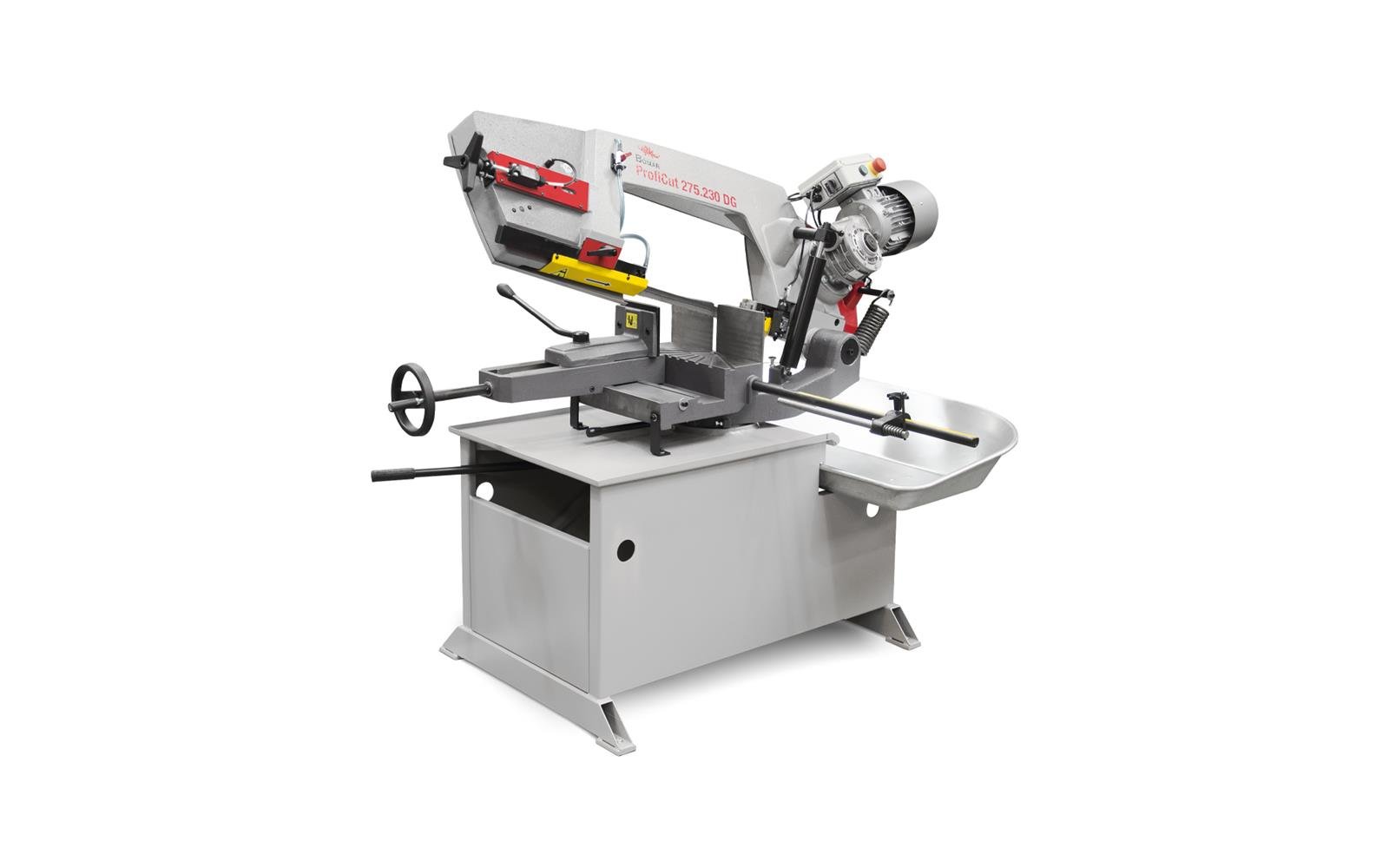

ProfiCut 275.230 DG is a gravity bandsaw with a robust cast-iron arm and 27 mm high saw band. Hardmetal band precision guide, an arm joint laid in preloaded tapered bearings, and synchronous running brush for chips removal providing the best and effecient productivity and keep the saw band in good condition for a long time. Band downfeed is ensured by the arm’s self-weight.

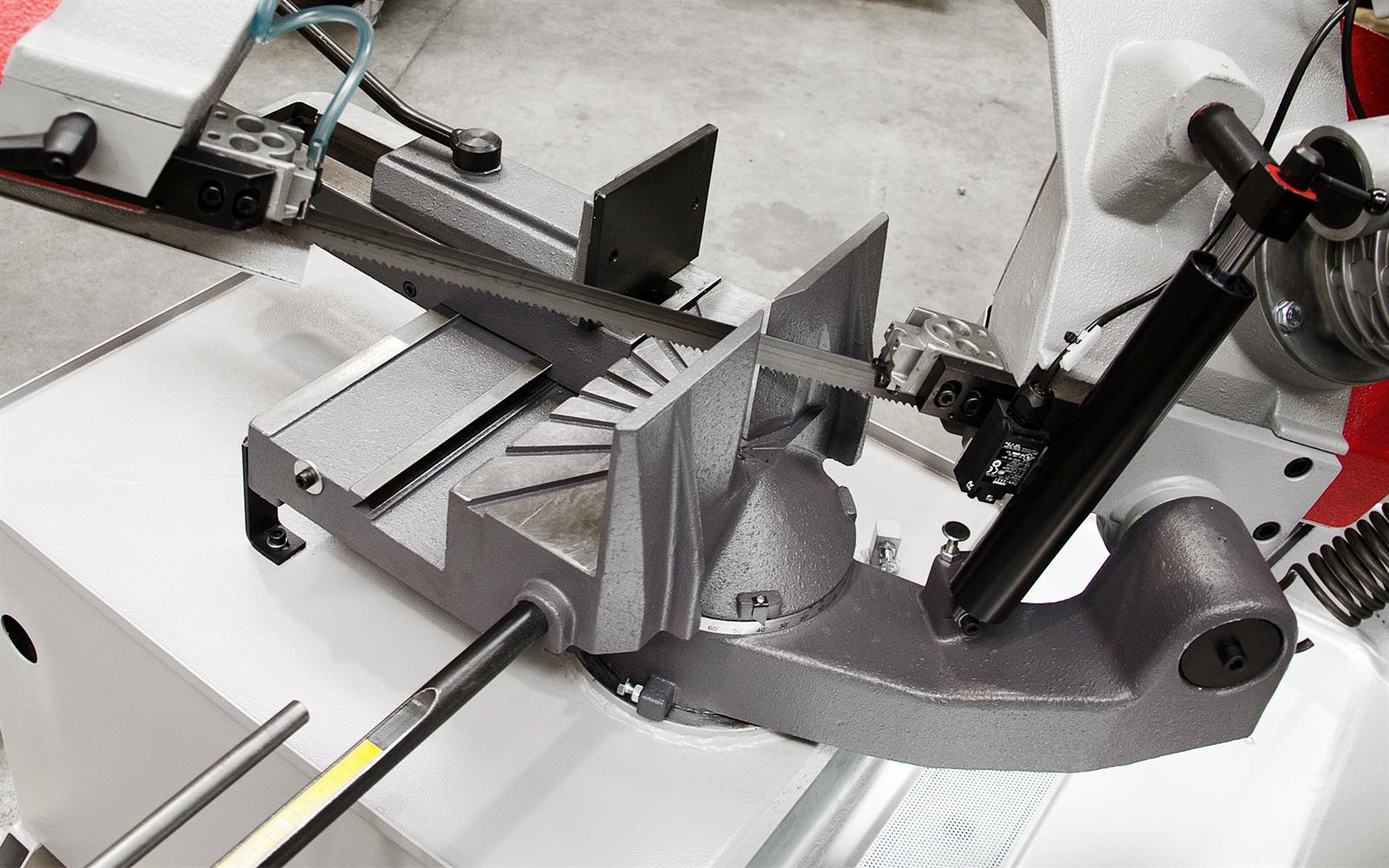

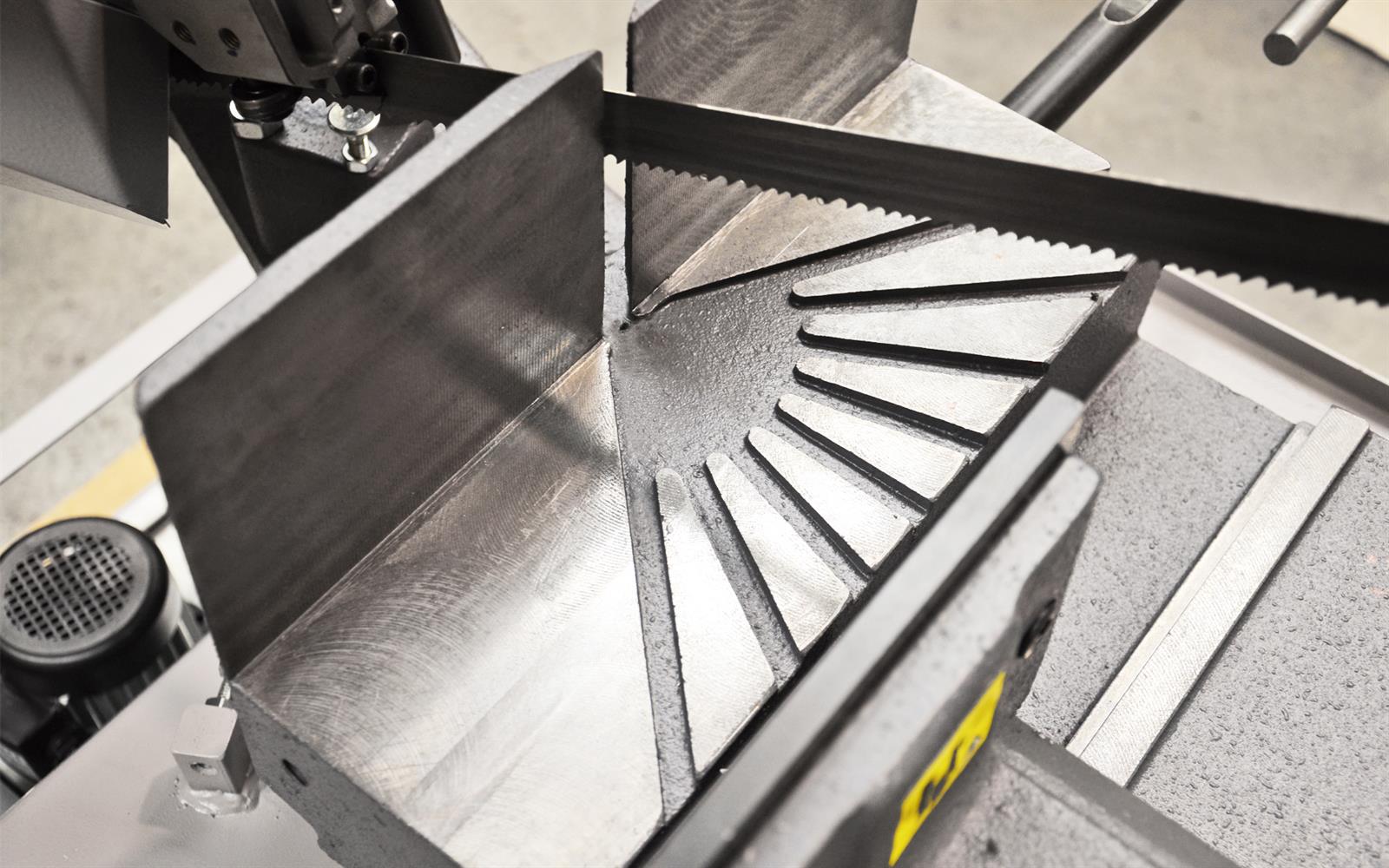

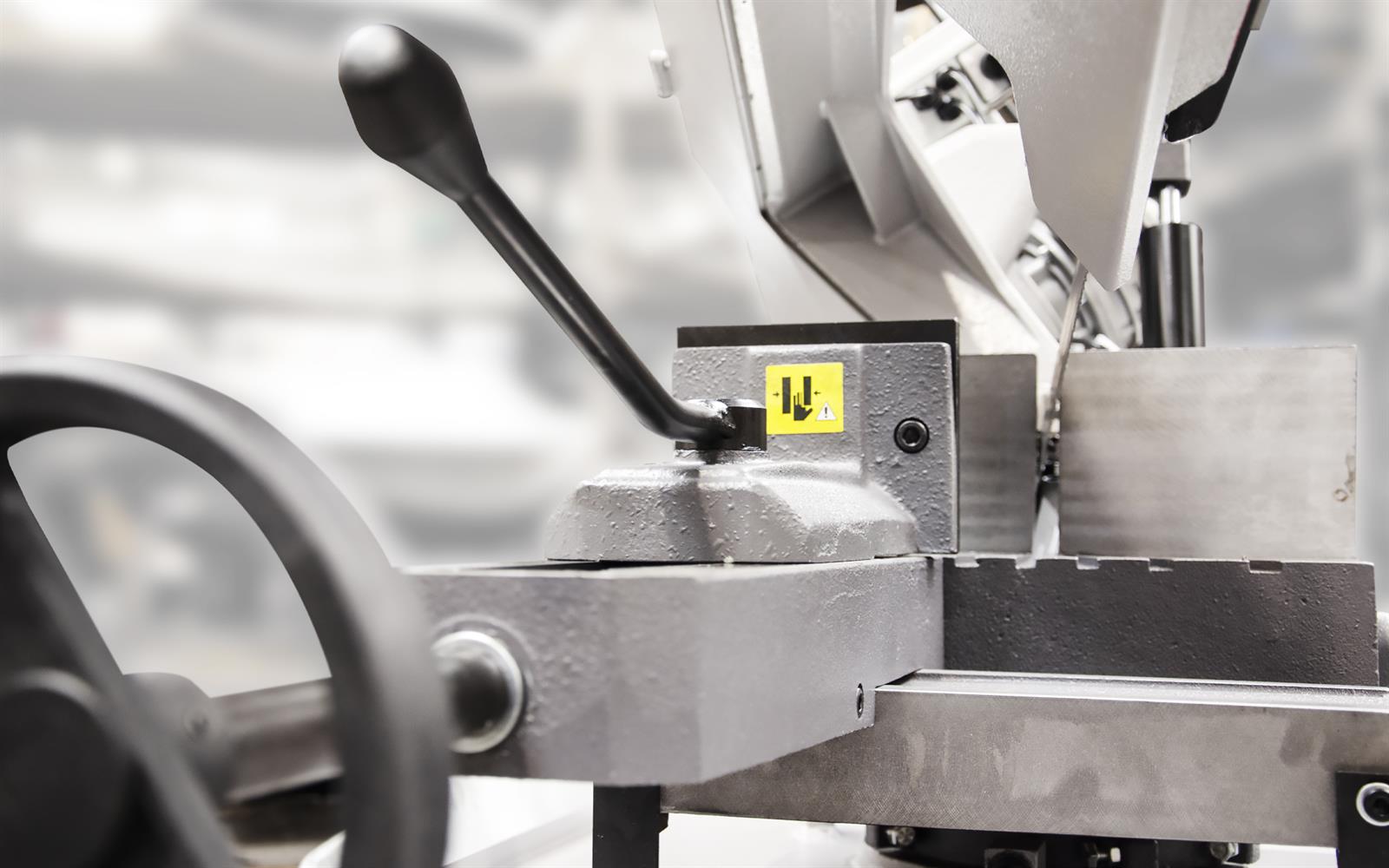

Saw arm is after cutting lifted by the hand. The machine offers two-sided angle cuts. The saw band is driven by a double-speed industrial motor and an oil-bath worm gearbox. The double-sided swivelling arm with the 45 °– 60 ° range (at a stable position of the clamped material) and a robust vice ensure a universal use of the saw.

• Powerful band saw for versatile use
• Excellent cutting precision
• Double-speed industrial motor
• Simple operation and maintenance

0 °	230	270 x 190	210 x 230	230
45 ° R	190	190 x 150	170 x 220	180
60 ° R	120	120 x 110	100 x 110	100
45 ° L	170	190 x 100	100 x 220	150

Working mode:	Manual
Machine type:	Horizontal bandsaw
Cut:	Mitre cut
Mitre cuts range:	0° - 60°
Drive:	0,7 / 1,1 kW, 3 x 400 V/ 50 Hz
Saw band speed:	35 - 70 m/min.
Saw band dimensions:	2 720x27x0,9 mm
Material loading height:	760 mm
Shortest remainder length:	40 mm
Smallest sawing diameter:	Ø 5 mm

Length:	1 150 mm
Width:	1 520 mm
Height:	1 670 mm
Weight:	330 kg

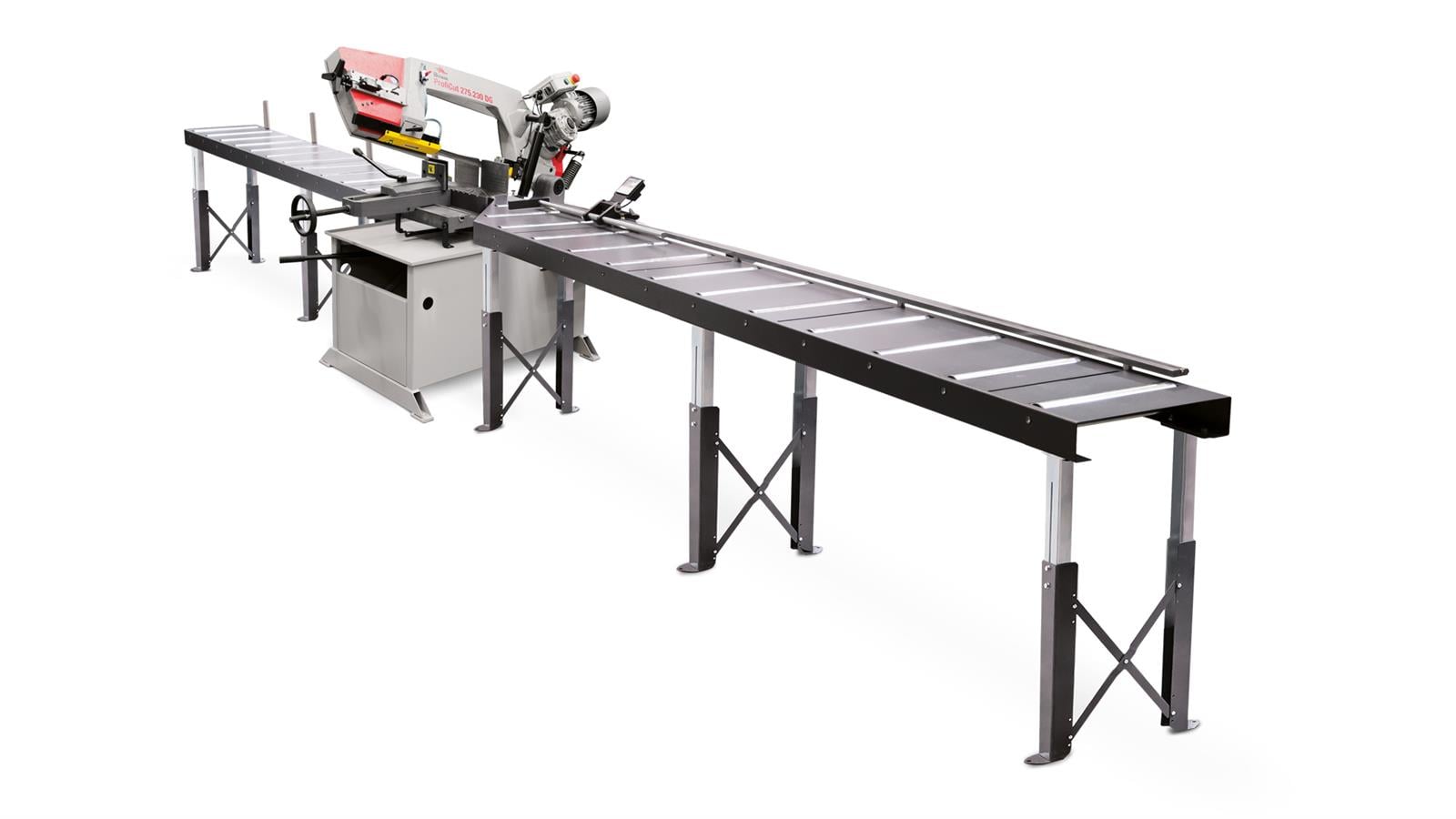

Handling System M: Highly flexible handling solution for feeding medium weight materials. Thanks to a unique profile system, “M” System roller tracks may be easily adjusted to customer’s requirements. With the bearing capacity up to 150 kg and a wide range of accessories and connection pieces of BOMAR bandsaws, the “M” System is an ideal partner for handling material in your workshop.

1. Micro-spray-system: For ideal cutting of pipes and profiles, the micro-spray unit applies a grease film on the teeth points and lateral sides of the saw band.
2. Laser liner: The laser unit copies the exact line in the saw band axis to the material. Laser liner allows precise adjustment of the marked material.
3. Additional cooling supply: Additional coolant supply is used for extra wide materials and wherever normal cooling would not be enough.
4. Workspace lighting: A LED lamp for lighting the workspace, adjustable and mounted on the flexible arm.
5. Tenzomat: A precise measuring tool for the control of the saw band tension when a new band is installed.
