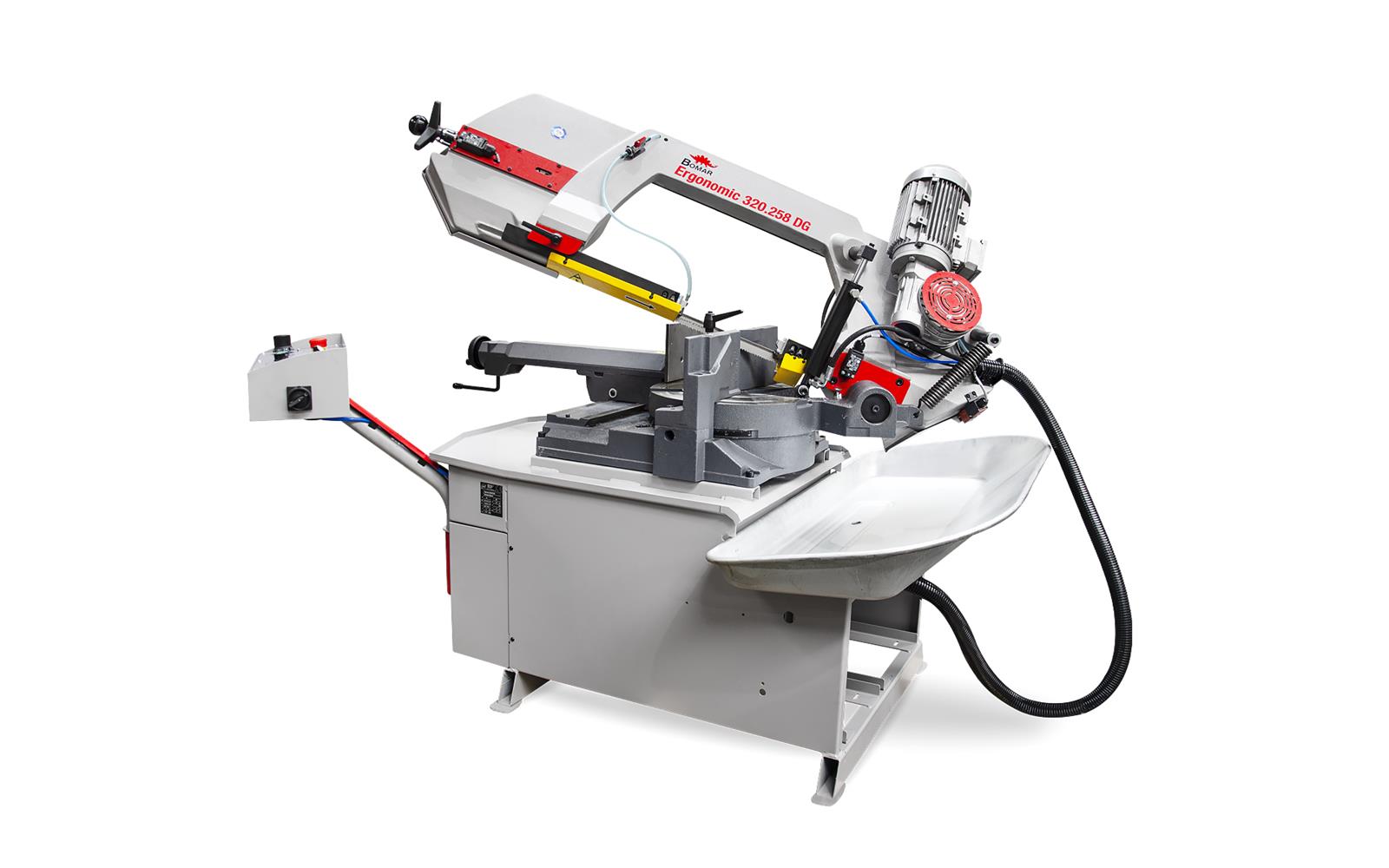

Bomar Ergonomic 320.258 DG Bandsaws (Bomar Ergonomic 320.258 DG Bandsaws)

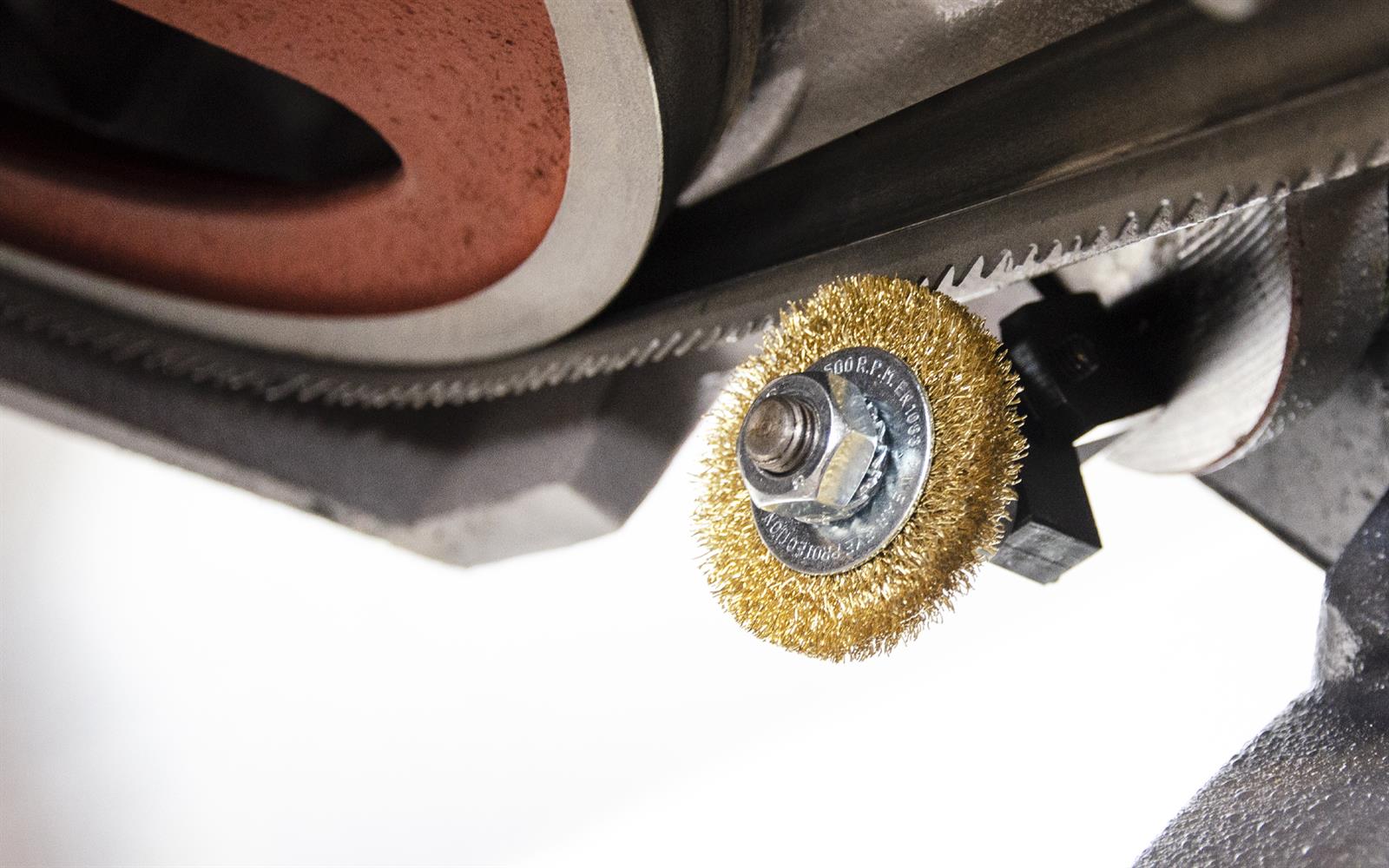

A gravity bandsaw with a robust cast-iron arm and 27 mm high saw band. The machine is equipped with a large rotary table, which is a good basis for processing short pieces of material. Table synchronously rotated with the arm and so there is no initial cut of the belt to the underlying surface. The excellent output of the machine and long lifetime of the band result from these features: a saw band precision guide, an arm joint laid in preloaded tapered bearings, and synchronous running brush for chips removal. Saw band downfeed is ensured by the arm’s self-weight. The descending speed is regulated by a hydraulic cylinder with an overflow valve. Saw arm is after cutting the lifted by hand.

The machine offers two-sided angle cuts. The basic version of the machine is equipped with a frequency converter, which provides infinitely variable belt speed ranges from 20 m/min. to 120 m/min. This significantly increases blade life and productivity of the machine.

• Robust cast-iron arm

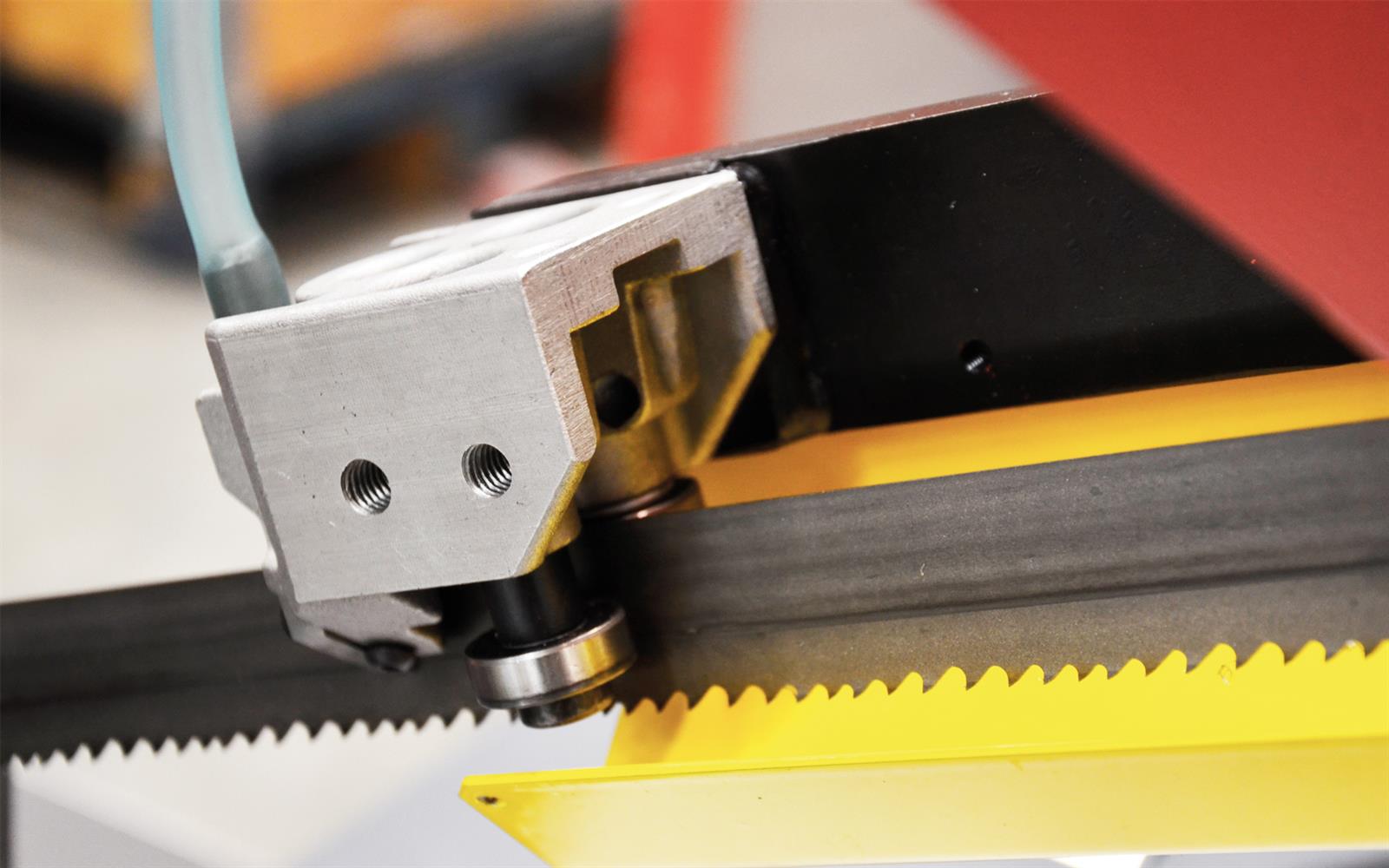

• Hardmetal band precision guide

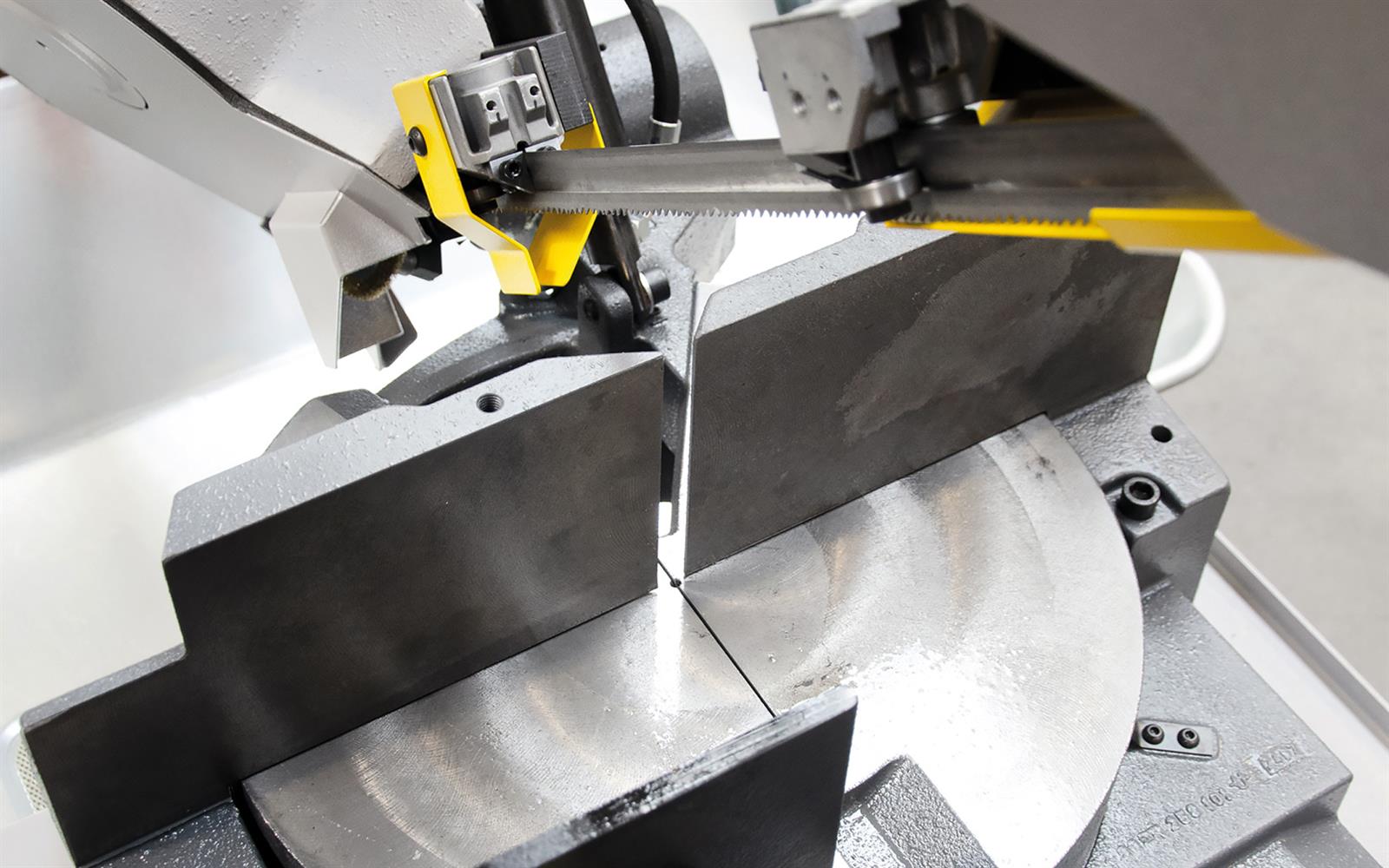

• Quick-action vice lever
• Worm gearbox with industrial motor

0°	258	320x100	250
45°R	210	210x100	195
60°R	135	135x100	170
45°L	185	195x100	150

Working mode	Manual
Machine type	horizontal bandsaw
Cut	mitre cut

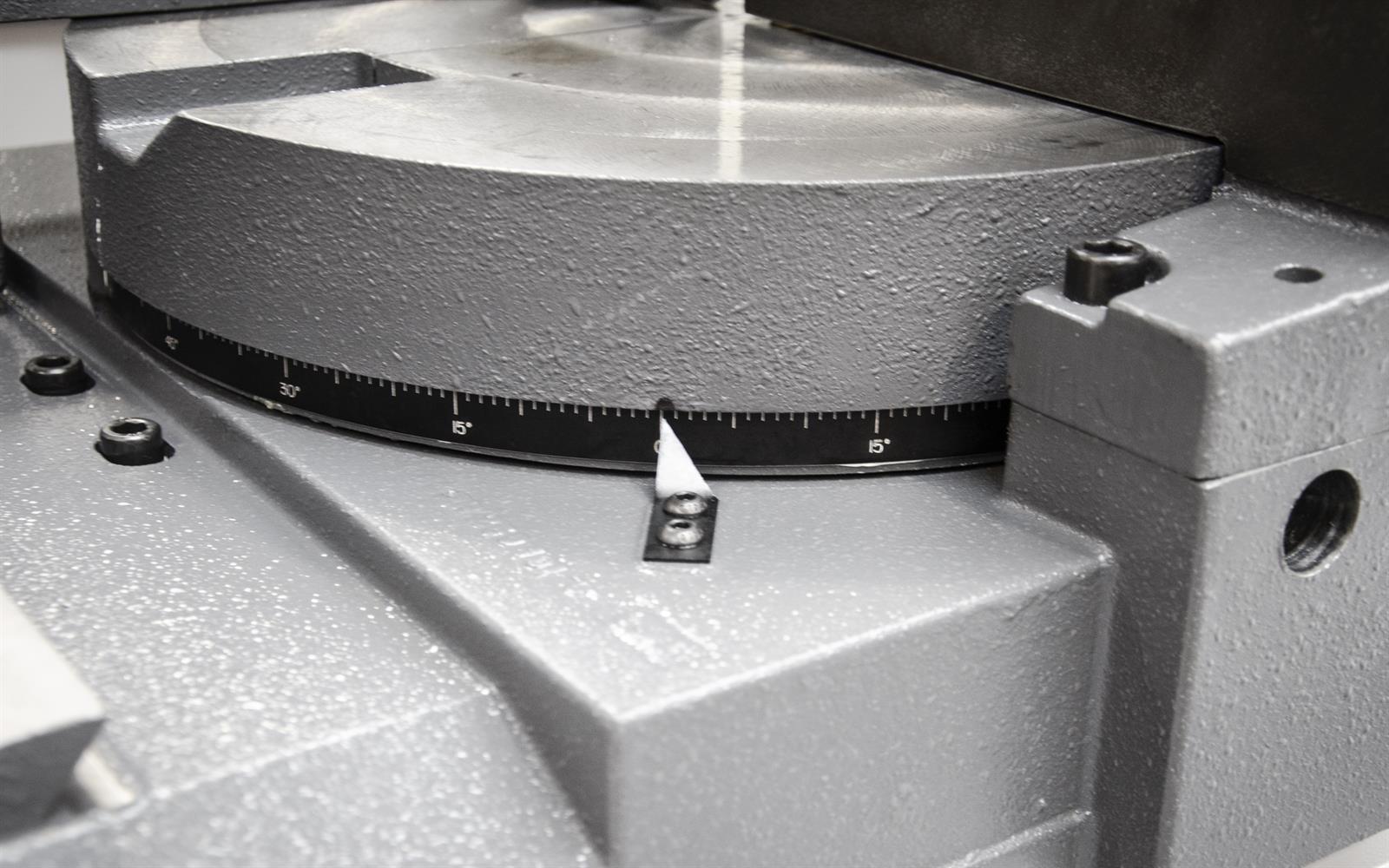

Mitre cuts range	-45° to +60°
Drive	1,8 kW, 3x400 V/ 50 Hz
Saw band speed	20 - 120 m/min.
Saw band dimensions	2 910x25(27)x0,9 mm
Material loading height	760 mm
Shortest remainder length	20 mm
Smallest sawing diameter	Ø 5 mm

Length	1 700 mm
Width	1 480 mm
Height	2 000 mm
Weight	390 kg

Handling System M: Highly flexible handling solution for feeding medium weight materials. Thanks to a unique profile system, “M” System roller tracks may be easily adjusted to customer’s requirements. With the bearing capacity up to 150 kg and a wide range of accessories and connection pieces of BOMAR bandsaws, the “M” System is an ideal partner for handling material in your workshop.

1. Micro-spray-system: For ideal cutting of pipes and profiles, the micro-spray unit applies a grease film on the teeth points and lateral sides of the saw band.
2. Laser liner: The laser unit copies the exact line in the saw band axis to the material. Laser liner allows precise adjustment of the marked material.
3. Additional cooling supply: Additional coolant supply is used for extra wide materials and wherever normal cooling would not be enough.
4. Workspace lighting: A LED lamp for lighting the workspace, adjustable and mounted on the flexible arm.
5. Tenzomat: A precise measuring tool for the control of the saw band tension when a new band is installed.
6. Pistol for machine cleaning: Tool for fast and easy cleaning of the machine from chips and burrs.
