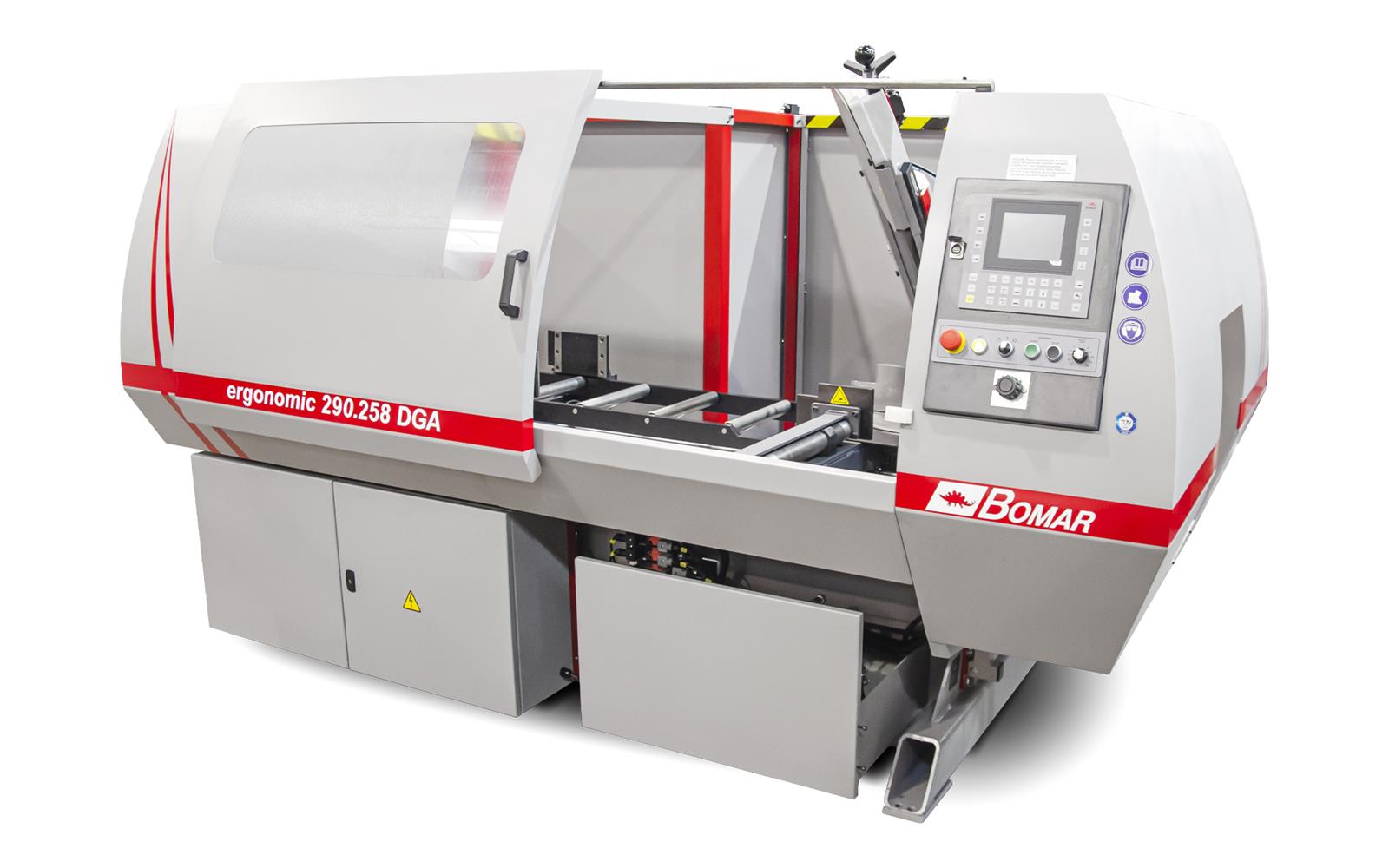

Universal automatic bandsaw with a robust cast-iron arm and 27 mm high saw band. Material clamping and arm downfeed are controlled hydraulically. The material feeding is manual. The complete cutting cycle is started by pressing the Start button. A fully automatic band saw for double-sided mitre cuts with automatic arm positioning. Material downfeed and clamping and arm downfeed are controlled hydraulically. The maximum length of an individual feed is 1,500 mm. The whole work cycle is completed after the length and number of pieces and angles on each side of a piece have been programmed. The control unit is equipped with a large display. The programming is performed in simple steps, and thanks to a large graphic display of individual sections it is easy to control for the user. Up to 60 programs may be saved in the unit. After switching the machine to the manual mode, all functions of the machine may be controlled separately.
The robust arm is made from grey cast-iron, which means better vibration absorption during cutting than with a welded arm. The outstanding cutting power of the machine results from the following features: a hardmetal band precision guide, an arm joint laid in preloaded conical bearings, a 27 mm high saw band and lastly, a synchronous running brush for chips disposal. The vices are laid solid on preloaded linear guiding. The movable vice opens to both sides, which eliminates collisions with uneven materials. A continuous roller track ensures simple and safe feeding of short materials. The angles are set electromechanically from -45° to +60° within approx. 3 sec.
Key features
