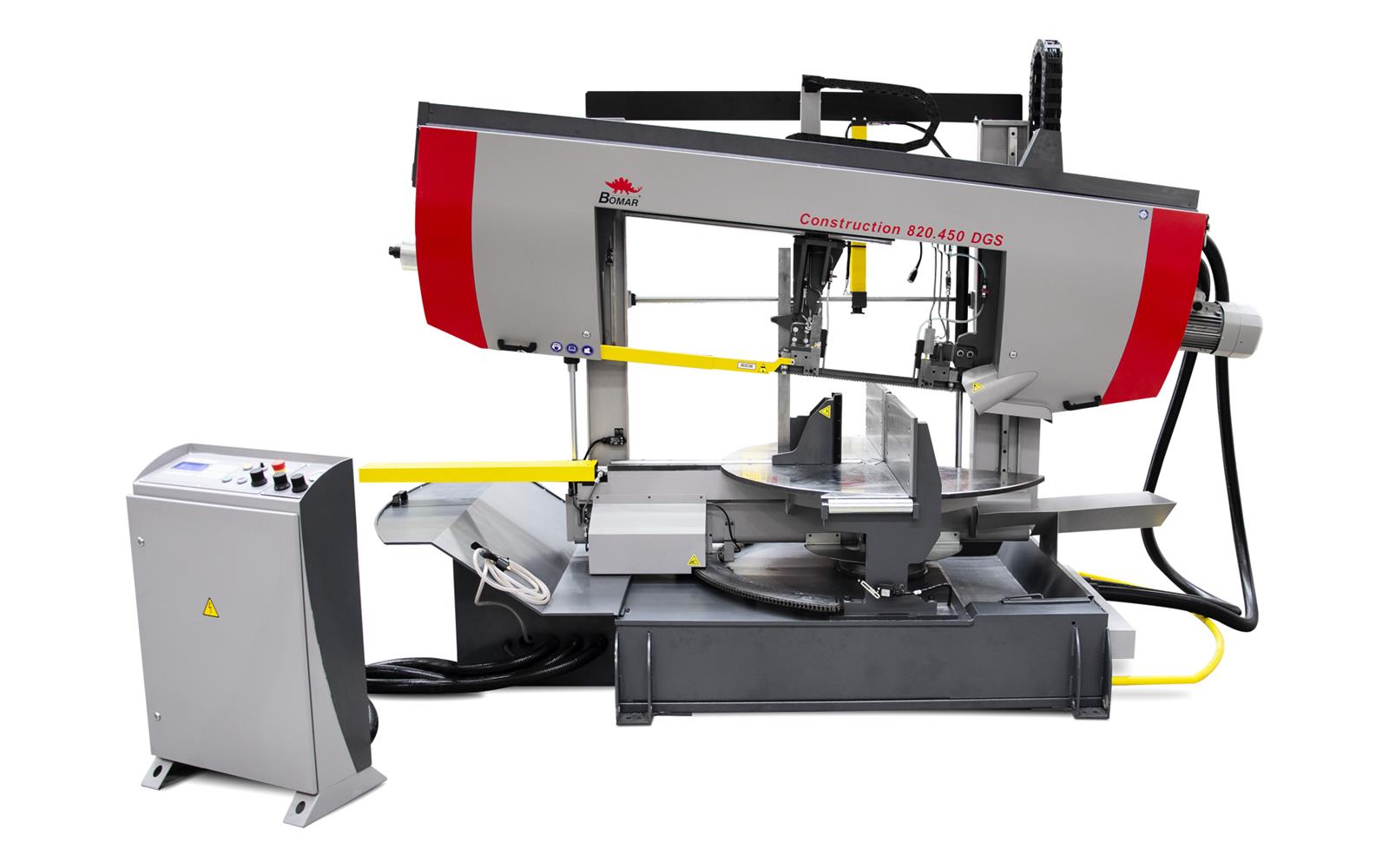

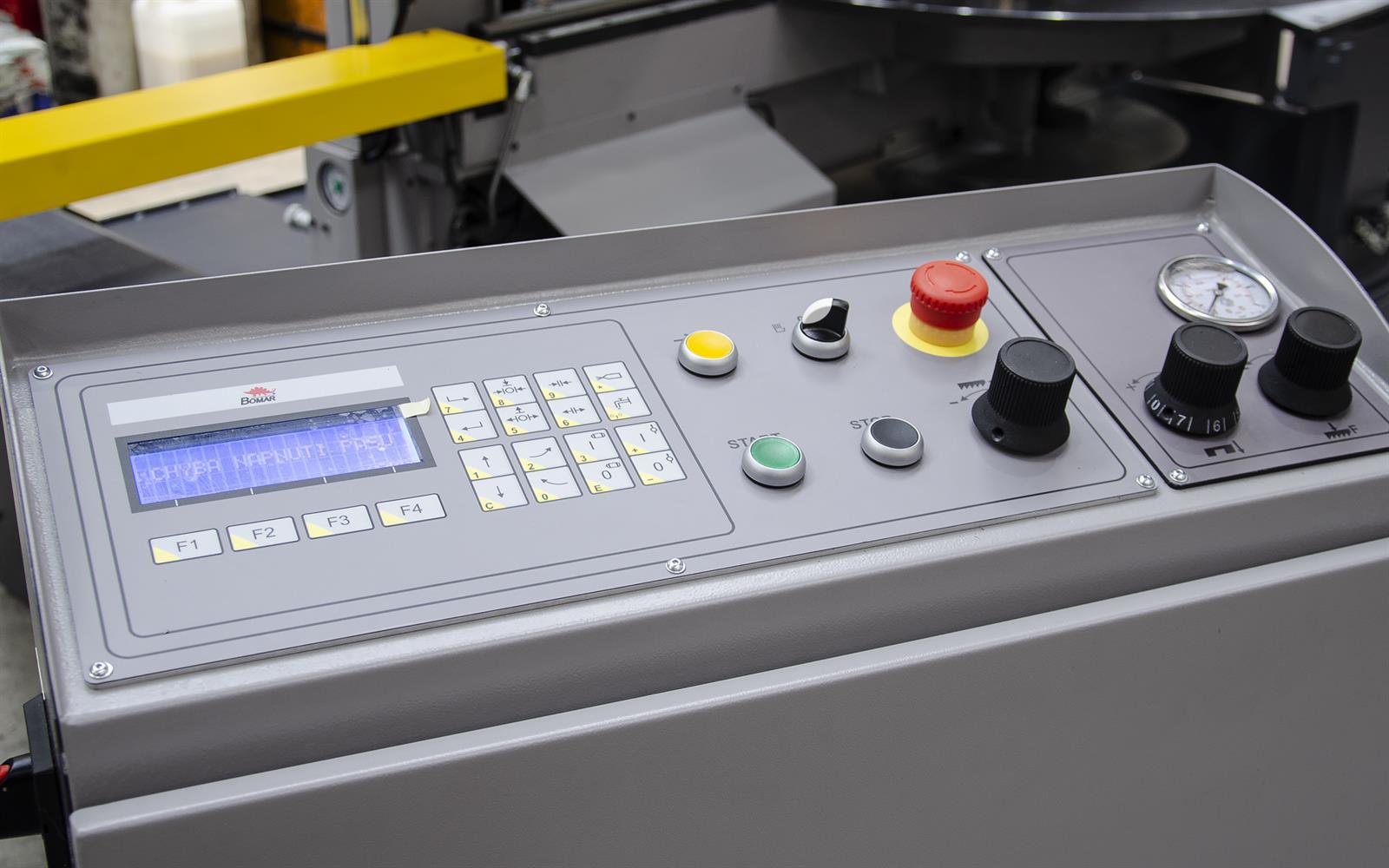

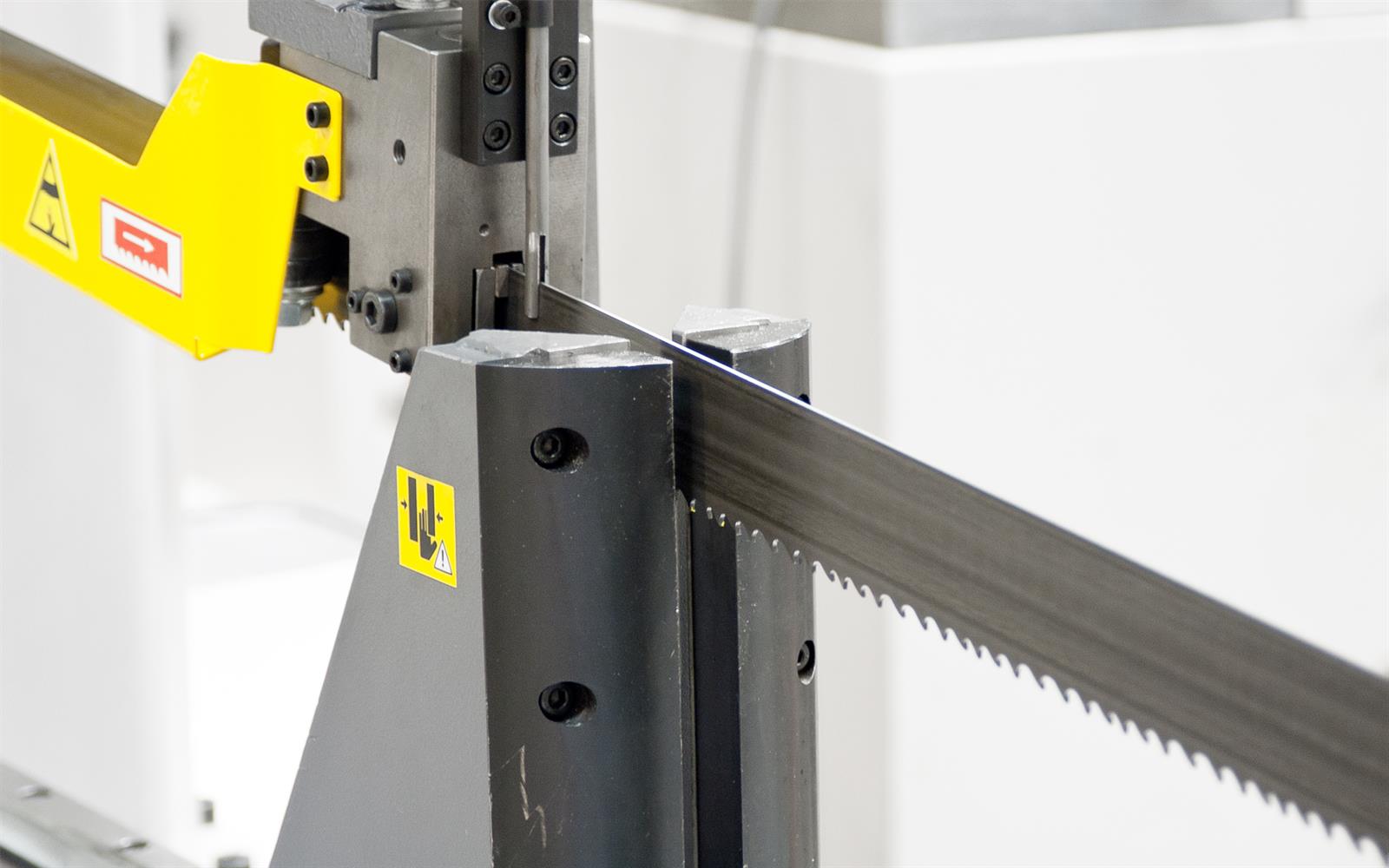

A hydraulic semiautomatic machine of a double- column construction, designed for cutting steel pro les and supports and for double-sided mitre cuts up to 60°. Its offers high-quality and quick cutting with perfect absorption of vibrations thanks to preloaded linear arm guiding on both sides and to the use of a polymer-concrete mixture which lls the arm, columns and pedestal. The 41mm saw band and arm laid under 6° present the main advantages for cutting pro le materials. Control elements concentrated on a movable panel guarantee comfortable operation of the machine; communication is done via a lighted, easy-to-read four-line display.
The standard version of the machine is tted with these additional devices: a digital indicator of the arm automatic angle turning, upper auxiliary clamping of the material, a display of the band’s speed changed by a frequency convertor, saved preset positions of the arm and vice after cutting, automatic presetting of the movable guiding cube, and automatic change of the arm downfeed speed dependent on the material shape.

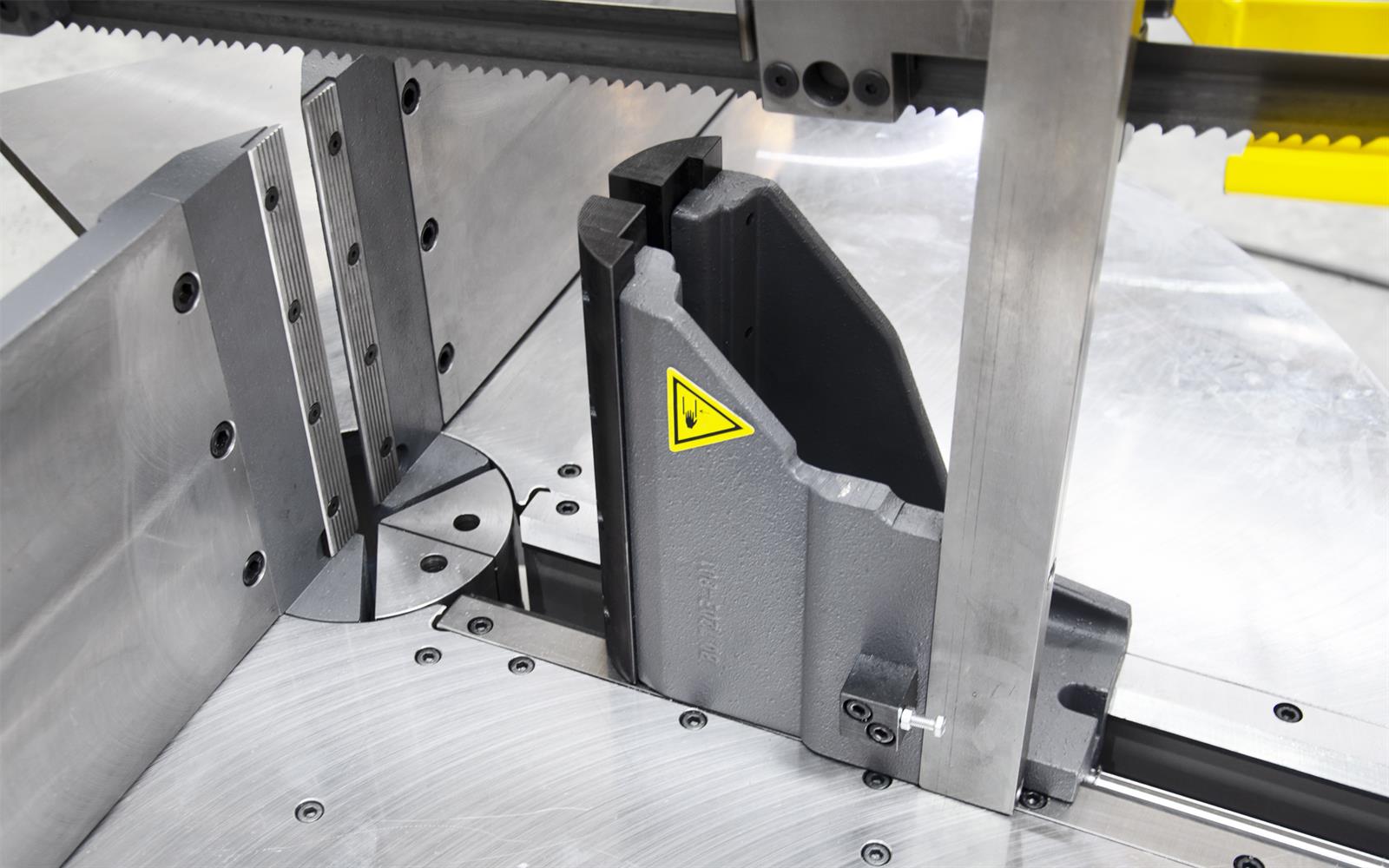

The working cycle starts by necessary presetting the machine to the operating position and by turning the arm for mitre cuts. When the material is inserted and the START button pressed, the material is clamped with a full- stroke hydraulic vice, the movable guiding cube is set, and the saw band starts running. Using an over ow valve, the operator selects the band’s optimal speed and the arm downfeed speed. When the cutting is completed, the arm returns to its top position and the vice opens to the preset position. Then the cycle repeats.
Thanks to the system of input and output roller conveyors, transverse material feeders, and measuring length stops the cutting line may be assembled as required by the customer. Further, a wide range of additional equipment is available: oil mist cooling and greasing (Micronizer), a hydraulic band tensioning indicator, a laser liner showing the future cut location, and many other devices supplied upon request.
Key features
