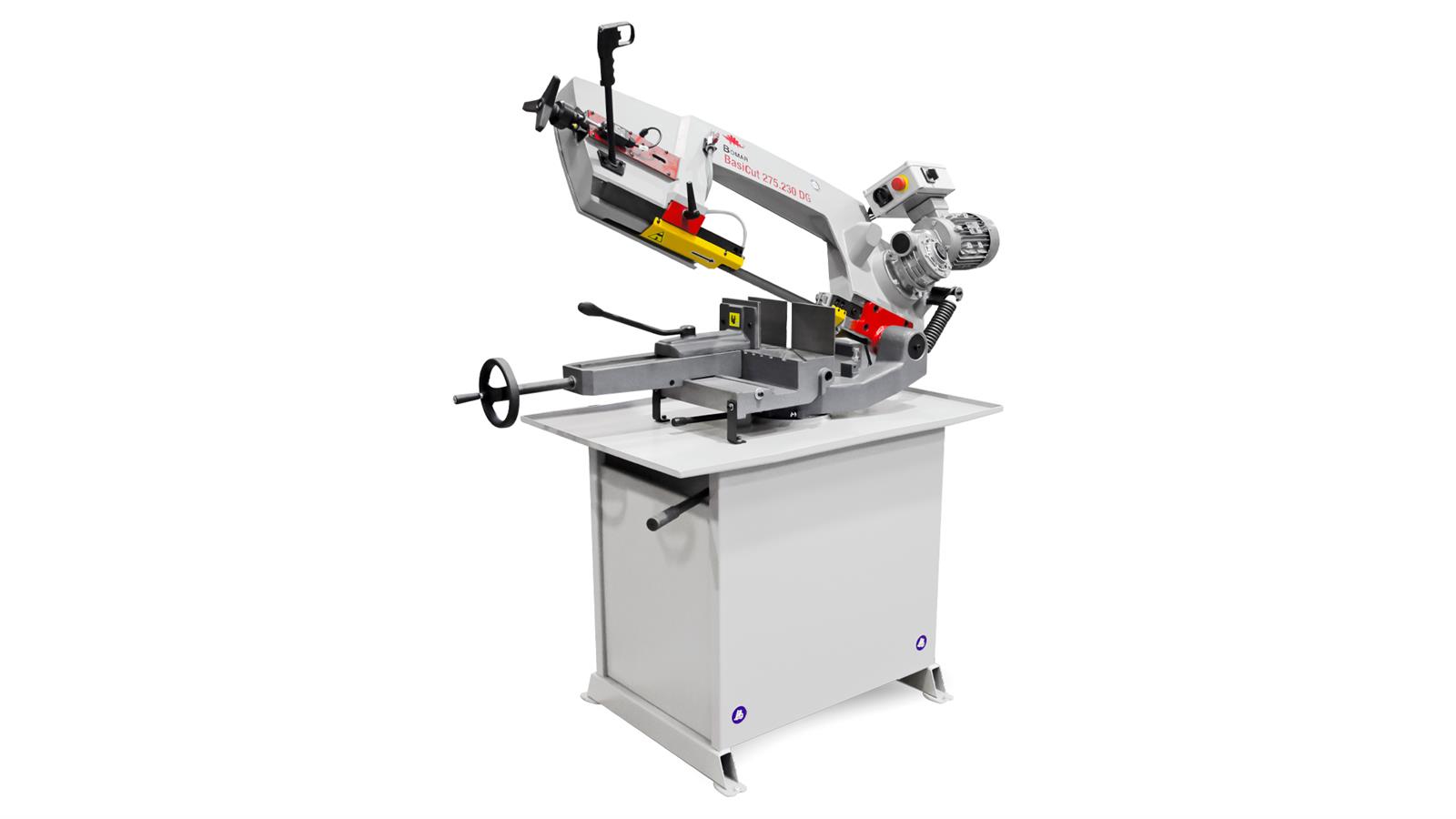

Bomar BasiCut 275.230 DG Bandsaws (Bomar BasiCut 275.230 DG Bandsaws)

BasiCut 275.230 DG is simple and universal manual bandsaw, which is used mainly in locksmith shops and smaller operations. Cast iron arm provide a better absorption of vibrations during cutting than the arm from a welded construction.

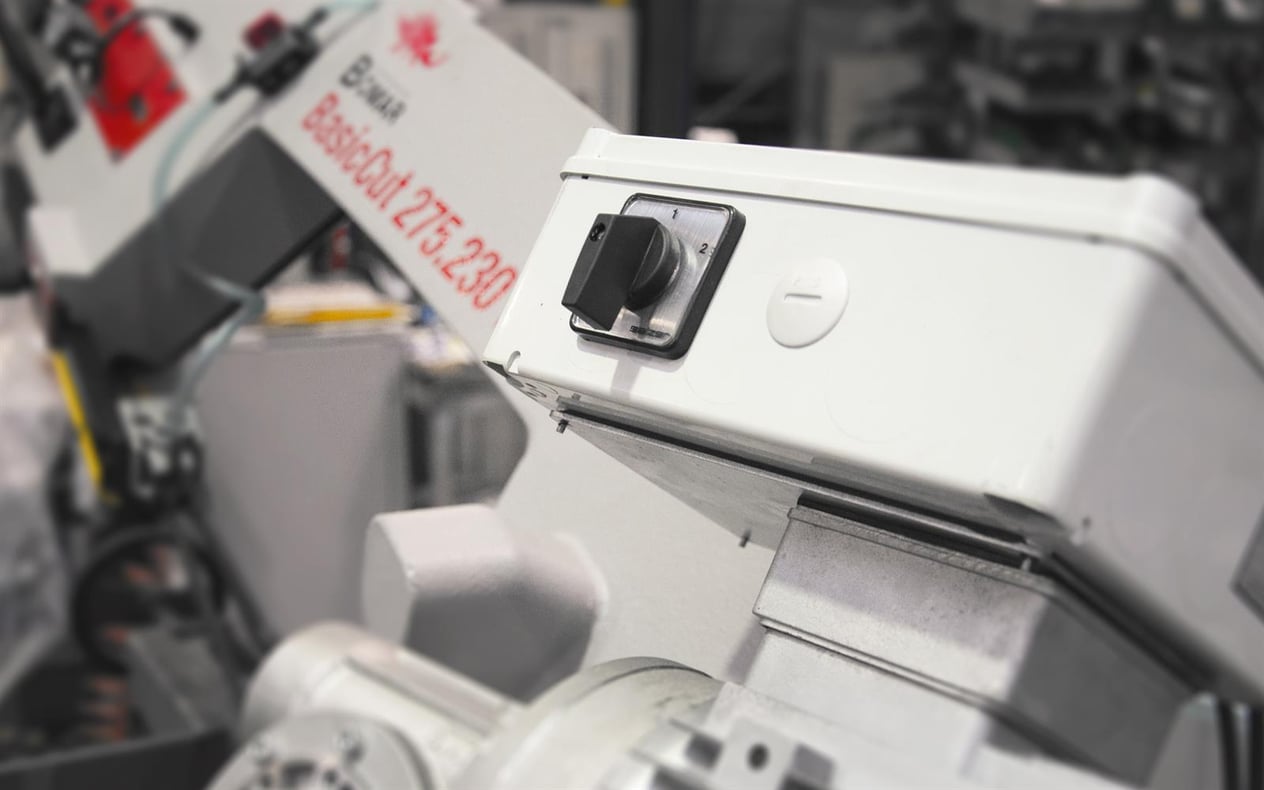

The saw band is driven by a double-speed industrial motor and an oil-bath worm gearbox.

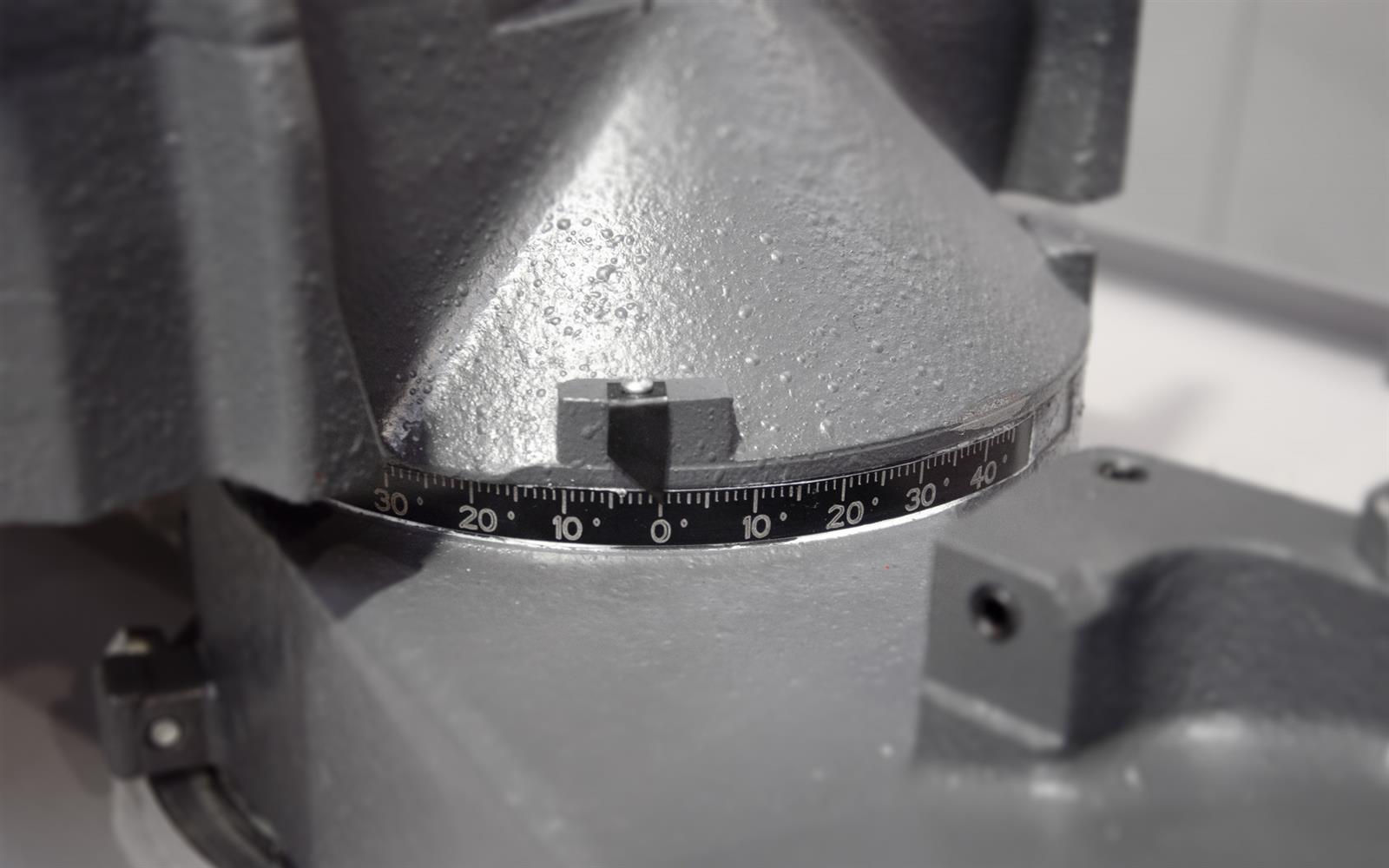

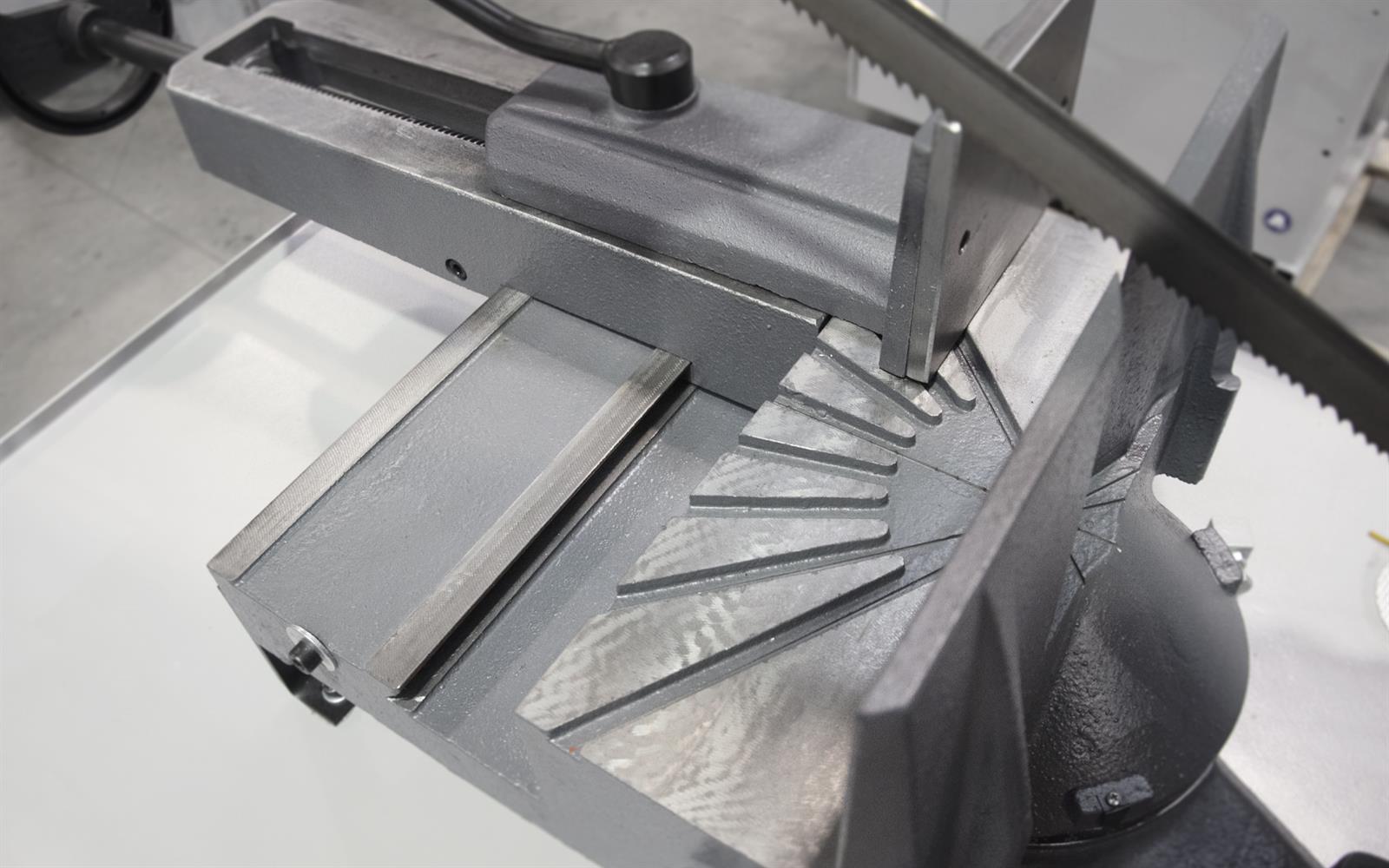

Machine is equiped with the double-sided swivelling arm with angle positioning 45° to the left and 60° to the right (at a stable position of the clamped material) and a robust vice ensure a universal use of the saw.The material clamping is done very easily by using a vice, whose movable jaw is guided by trapezoi- dal screw. During serial cutting, the material can be effectively clamped by using a fast (eccentric) lever. Material feeding is carried out manually, by the arm of the operator.

• Cast iron arm
• Excellent cutting precision
• Double-speed industrial motor
• Simple operation and maintenance

0°	230	275x180	250x230	230
45°R	190	190x150	170x230	180
60°R	120	120x100	120x100	100
45°L	170	185x100	90x230	150

Working mode:	Manual
Machine type:	Horizontal bandsaw
Cut:	Mitre cut
Mitre cuts range:	-45° - 60°
Drive:	1,1 / 1,5 kW, 3x400 V/ 50 Hz
Saw band speed:	35 - 70 m/min.
Saw band dimensions:	2 720x27x0,9 mm
Material loading height:	978 mm
Shortest remainder length:	20 mm
Smallest sawing diameter:	Ø 5 mm

Length:	1 574 mm
Width:	700 mm
Height:	1 485 mm
Weight:	370 kg

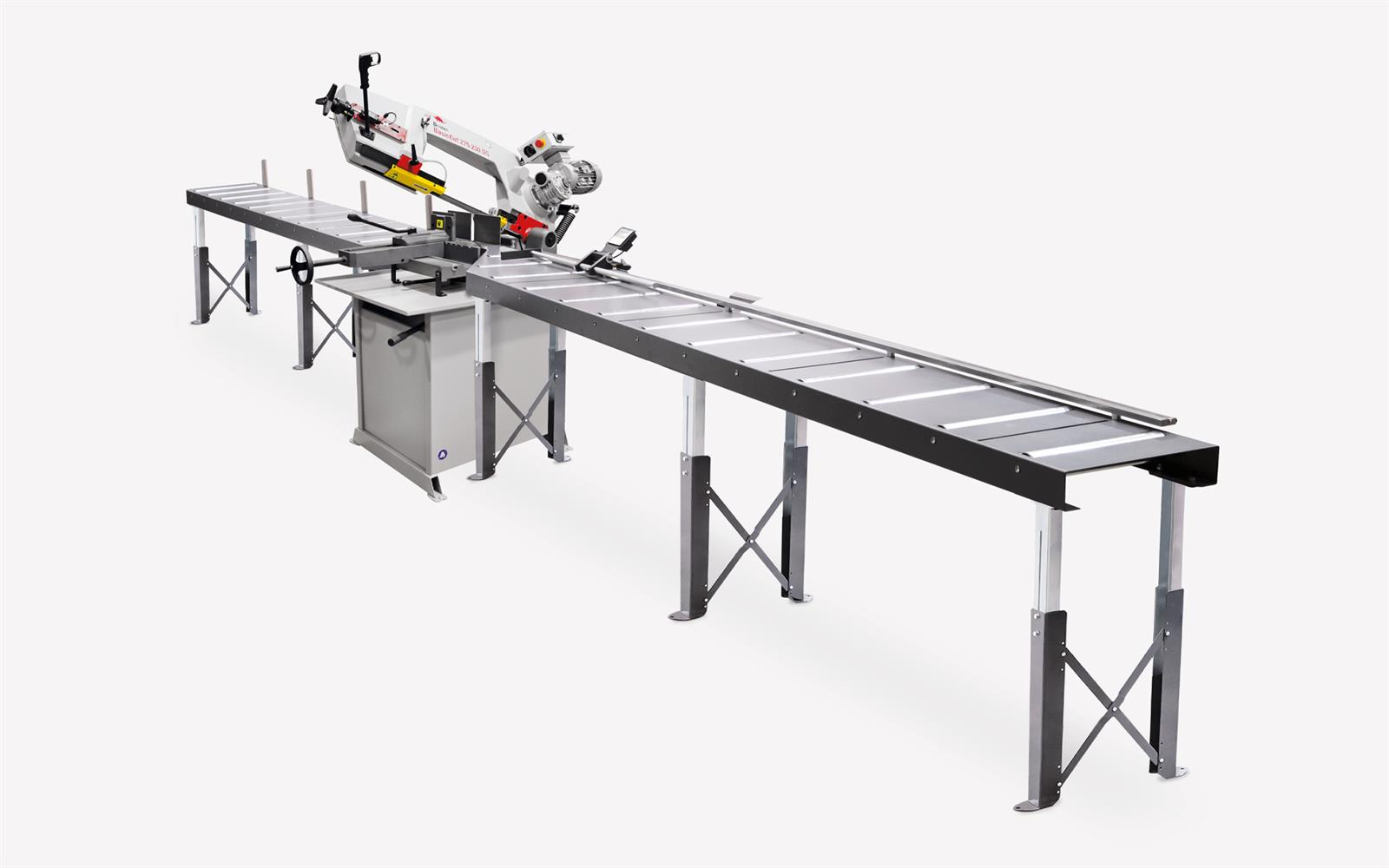

Handling System M: Highly flexible handling solution for feeding medium weight materials. Thanks to a unique profile system, “M” System roller tracks may be easily adjusted to customer’s requirements. With the bearing capacity up to 150 kg and a wide range of accessories and connection pieces of BOMAR bandsaws, the “M” System is an ideal partner for handling material in your workshop.

1. Laser liner: The laser unit copies the exact line in the saw band axis to the material. Laser liner allows precise adjustment of the marked material.
2. Additional cooling supply: Additional coolant supply is used for extra wide materials and wherever normal cooling would not be enough.
3. Workspace lighting: A LED lamp for lighting the workspace, adjustable and mounted on the flexible arm.
4. Tenzomat: A precise measuring tool for the control of the saw band tension when a new band is installed.
