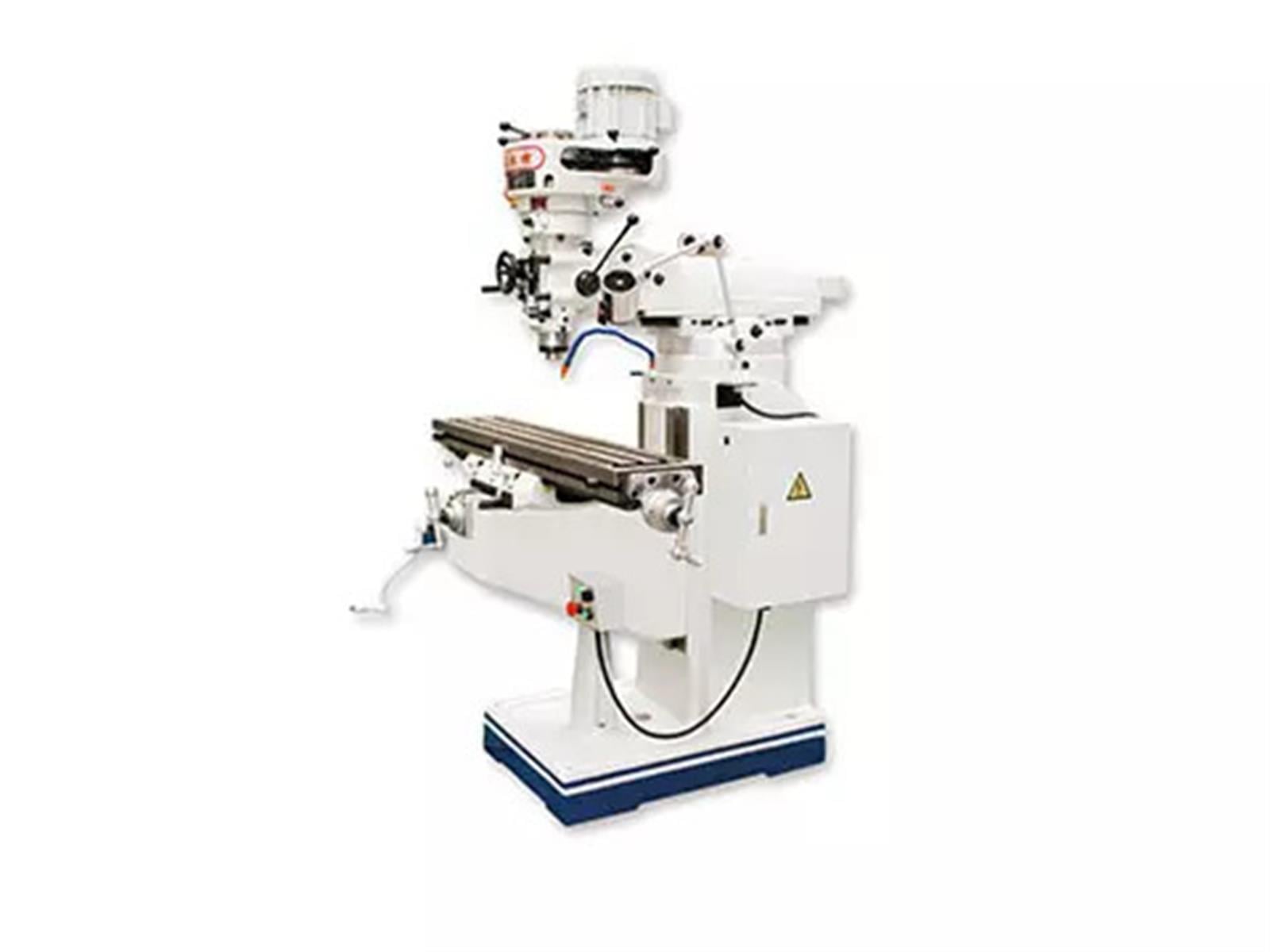

Bochi X6323A Turret Milling Machine (X6323A)

Universal turret milling machine
Our milling machines has passed the strict CE certification and had already got the CE certificate. Our factory also get the ISO certificate.
Our universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.

Item/Model		X6323A
Table size		230 x 1067 (9”x42”)
Long travel		650
Cross travel		305
T-slot No. and size		3 x 16
Ram travel		315
Distance from spindle nose to table surface		0-350
Spindle hole taper		Standard: R8    optional: ISO30/ISO40
Spindle travel		127
Spindle Speed		Standard：shiftgrade 50HZ:66-4540; 60HZ:80-5440
		Optional: variable 60-4200
Auto.quill feed		Three steps : 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)mm/revolution
Spindle moto		2.25kW/3HP
Head swivel		90°
Head tilting		45°
Dimension of package	One miller per case	1400x1476x2030
	Two miller per case	1450x1570x2080
	Three miller per case	1450x2180x2080
G.W/set		1000
