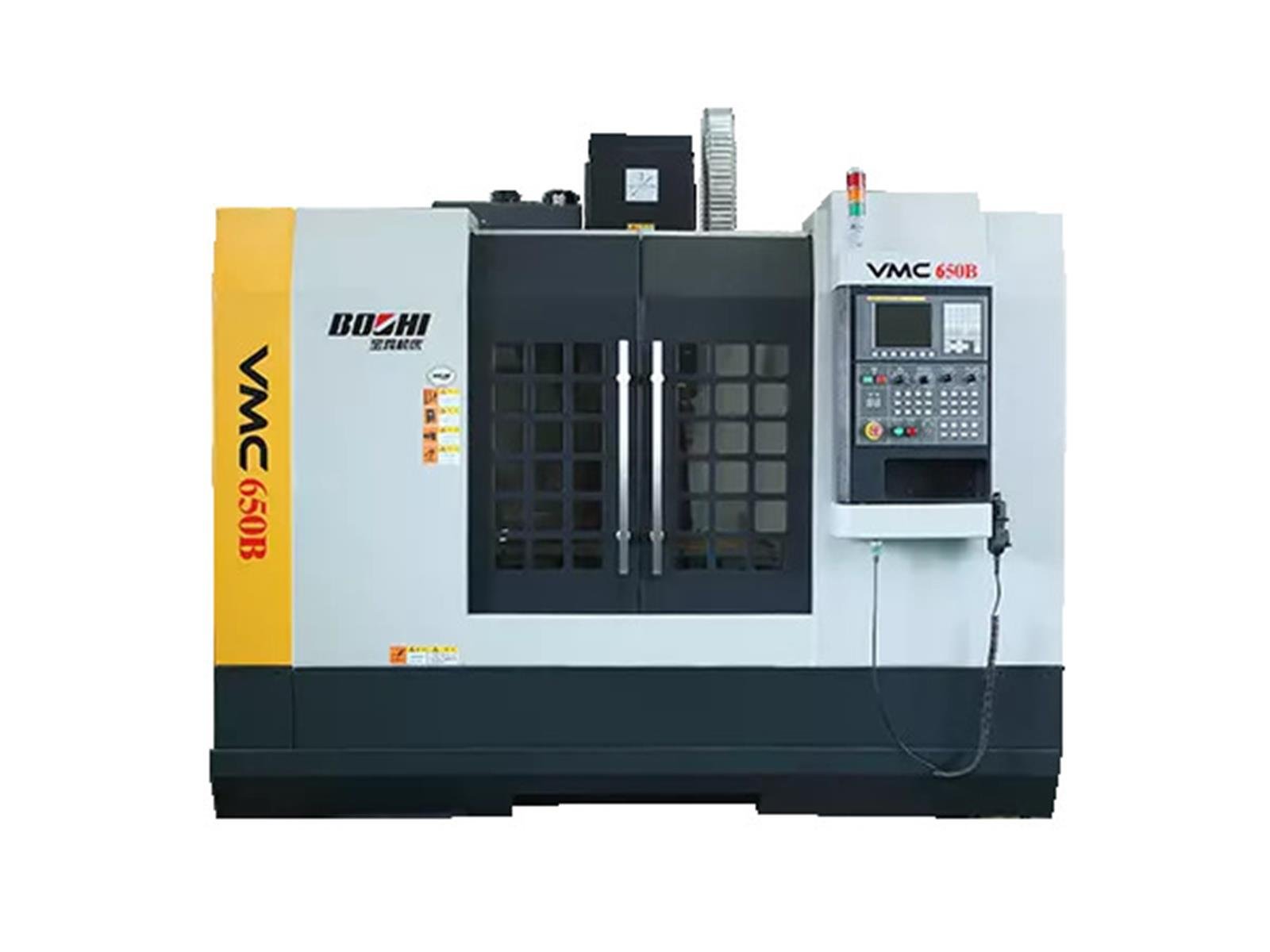

Bochi VMC650 Machining Center (VMC650)

High rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range.
These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity.
VMC650：Rectangular hardened sliding guideways of 3-axes.
VMC650L：Linear guideways are used in X and Y axes while rectangular hardened sliding guideways in Z-axes.
VMC650H：Linear roller ways and silence lead screws from famous makers are used for X, Y and Z axes.

Spec.		Unit	VMC650
Work table	Dim. of table(W×L)	mm	420×800
	T-slot (num.-size × space)	mm	3-18×135
	Permissible load	kg	600
Spindle	Spindle taper hole	/	ISO 40
	Power of main motor (cont./15min overload)	kW	7.5/11
	Top speed of spindle	r/min	8000
Travel	X-axis right and left travel	mm	650
	Y-axis back and forth travel	mm	400
	Z-axis up and down travel	mm	480
	Distance of spindle nose to table face	mm	80-560
	Distance of spindle center to column way	mm	480
Feed	X/Y-axis rapid traverse	m/min	12
	Z-axis rapid traverse	m/min	10
	Max. cutting federate	mm/min	10000
Magazine	Capacity of magazine	pcs	16/20/24
	Max. tool weight	kg	8
Accuracy	Repeatability (JIS)	mm	±0.008
	Positioning accuracy (JIS)	mm	±0.003
Others	Air source	L/min	250
	Air pressure	MPa	0.6
	Gross weight of machine	kg	5000
	Net weight of machine	kg	4500
	Dimensions of machine (L×W×H)	mm	2340x2270x2250
