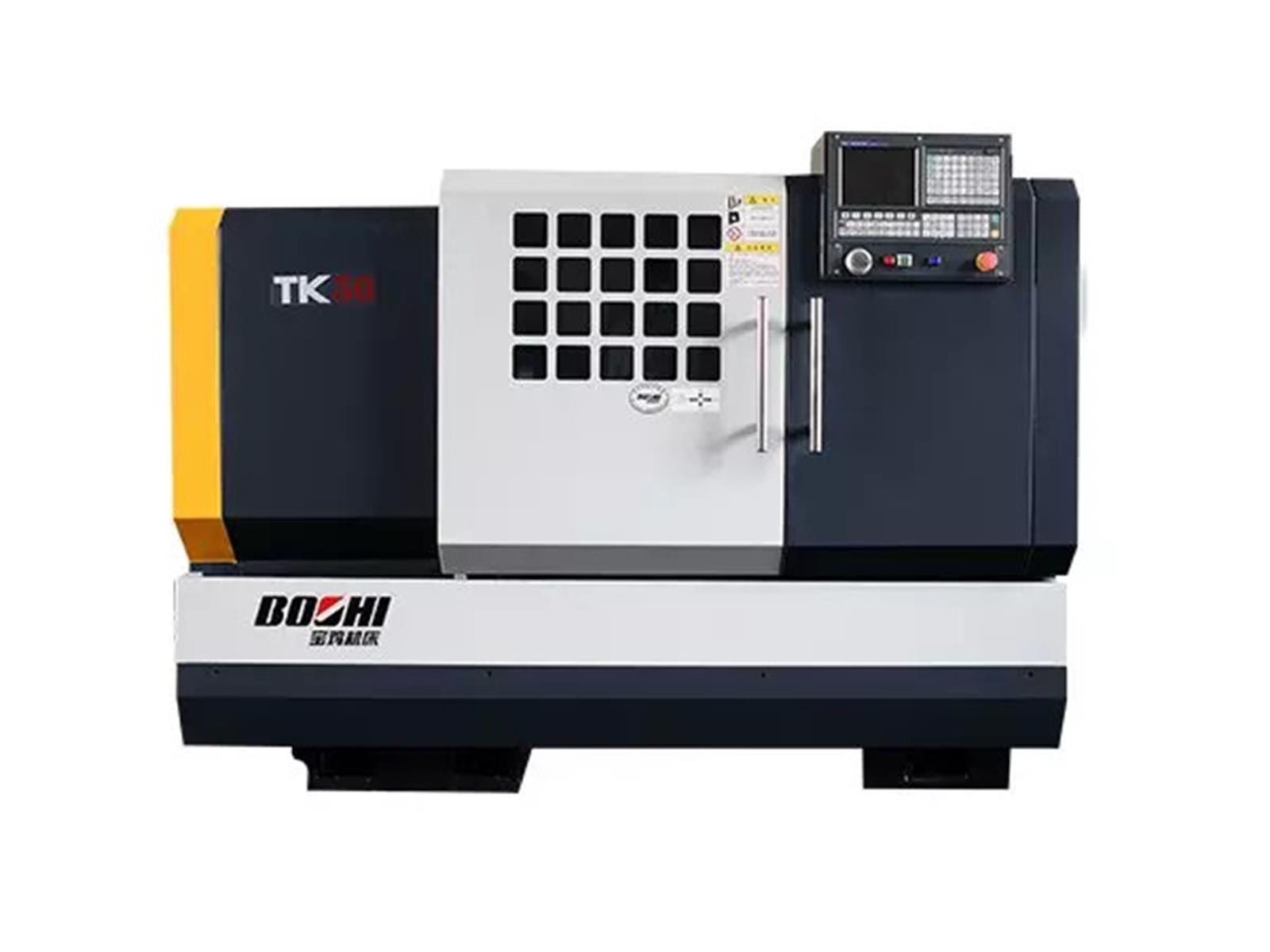

Bochi TK50 CNC Lathe (TK50)

Brand : Bochi

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

CNC Lathe

TK50 is an easily-operated CNC lathe and driven by a main servo motor. This machine features an independent spindle structure and outputs infinite variable speed. Controlled by GSK control the lathe has two controllable axes. It can perform OD and ID turning, taper and arc turning, facing, metric and inch threading automatically. Suitable for chuck work and shaft work of multi-specification medium/small batches, especially those complicated and high accuracy workpieces.

Item		Unit	TK50
Capacity	Max. swing over bed	mm	φ500
	Max. swing over slide	mm	φ280
	Max. turning dia.	mm	φ500
	Max. work length	mm	1100
	Max. turning length	mm	1000
Spindle	Spindle bore	mm	φ87
	Spindle nose		ISO702/ⅠA₂8
	Spindle speed	r/min	30-2500
	Spindle rated/max. torque output	N.m	286/354 （GSK control）
Turret	Rapid traverse (Max.)	m/min	X axis：6 Z axis：8
	Lead screw pitch	mm	X-axis: 5 Z-axis: 6
	Capacity of turret		4(standard)/6(optional)
	Max. section of tool	mm	□25×25
	Travel of carriage	mm	X axis: 275 Z axis: 1000
Tailstock	Dia. of tailstock quill	mm	φ75（φ80 hydraulic tailstock）
