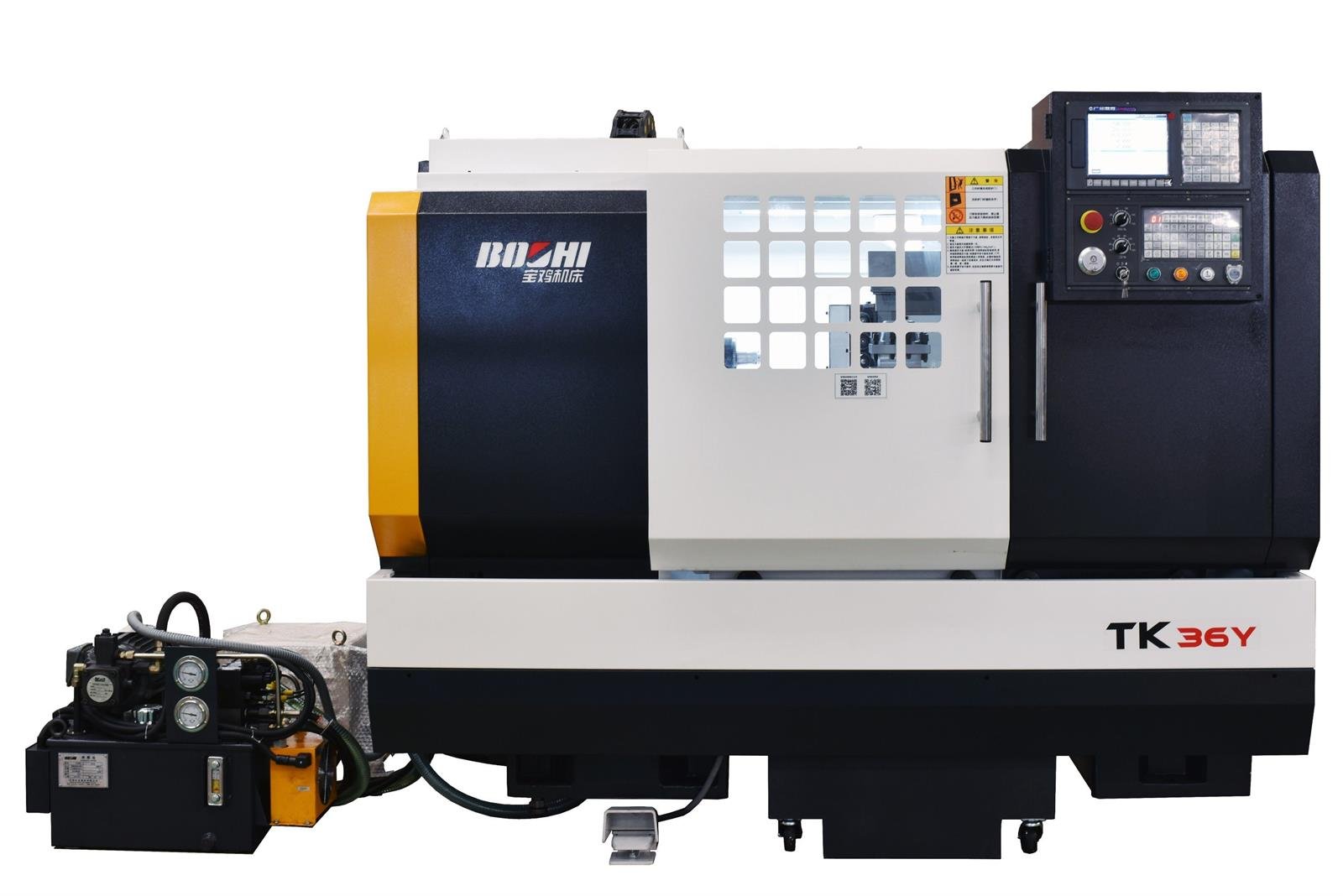

TK36Y is a turning and milling integrated CNC lathe specially developed for small non-ferrous metal processing. It can complete various turning functions, and well as milling, drilling, tapping and other processing of workpiece with Y-axis power unit. Performance Characteristics Independent spindle structure, stable running, stepless speed regulation. Equipped with power unit, it can realize milling, drilling, tapping and other processing The separated cooling water tank is easy to maintain and clean. Accuracy Refer to the executive standard: GB / t25659.1-2010 simple CNC horizontal lathe Part 1: accuracy inspection. Positioning accuracy: X/Y/Z(mm)-0.032/0.032/0.040 Repeatable positioning accuracy: X/Y/Z(mm)-0.009/0.009/0.011 Roundness / cylindricity(mm): 0.004/0.027(300mm)
Items
Unit
TK36Y
Capacity
Max. bar diameter
mm
Φ42
Max. turning length
500
Spindle
Spindle bore
Φ57
Spindle nose
ISO702/Ⅰ A2-5
Spindle speed
r/min
140-3000 (Step-less)
Max. output torque
N·m
83
Hydraulic collet
CR42A5
Spindle motor power
Kw
5.5
Tailstock
Quill dia/stroke
Φ65/120
Taper of center
MT No.4
Saddle
Stroke X/Y/Z(mm)
230/120/510
Rapid travel speed X/Y/Z
m/min
6/6/8
Toolpost
Tool number/type
4, vertical
Tool section
20×20
Power tool
Collet
ER20
Max. tool capacity
pc
3
Max. speed
3500
Max. milling diameter
Φ10
Max. drilling diameter
Max. tapping diameter
M8
Others
Power capacity
kVA
12
Spindle motor belt
3V-710
Dimension (L*W*H)
2370×1280×1610
Weight
Kg
1700
