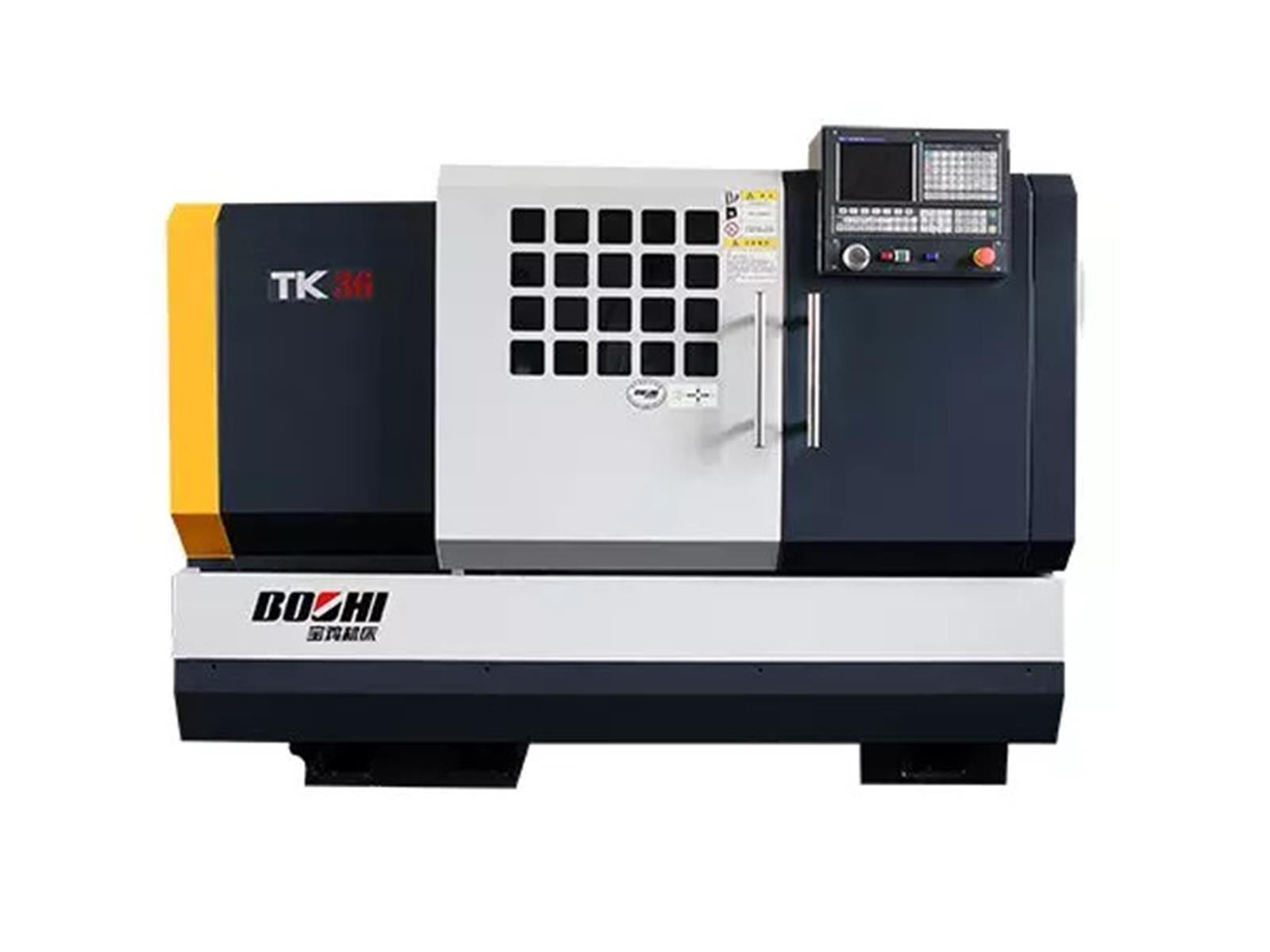

Bochi TK36S CNC Lathe (TK36S)

TK36 series CNC lathe is controlled by GSK control and driven by servo motors. It has two 2 controllable axes. Operations of internal and external turning, taper turning, circular surface turning, facing, inch and metric threading are performed. Standard equipment-4-station vertical power turret meets different cutting requirements. The sliding door and a variety of caution plates guarantee operator’s safety. The lathe applies to light and manufacturing engineer industries for speedy and efficient machining of small/medium size workpieces especially nonferrous metals, or for teaching and training purposes in colleges.

Description		TK36S
Capacity	Max. swing over bed (mm)	Φ360
	Max. swing over slide (mm)	Φ180 (4/6-station)/Φ105 (comb type tool rest)
		Φ120 (rear-mounted tool rest in case of 4-station)
	Max. turning dia. (mm)	Φ320 (4-station, comb type tool rest)/ Φ220 (6-station)
	Distance between centers (mm)	750/690(6-station)/650*
	Max. turning length (mm)	600/540(6-station)/500*
Spindle	Spindle thru-hole (mm)	Φ57
	Spindle nose	D type No.6 manual chuck
		ISO702/I A2-5 6″ hyd. chuck
		ISO702/I A2-6 8″ hyd. chuck
	Rotation sped of spindle (r/min)	140-3000(infinite variable speed)
	Max. output torque of spindle (N·m)	83
	Chuck dia. (mm)	Φ200
	Power of main motor (kw)	5.5/7.5
Tailstock	Dia./ travel of quill (mm)	Φ55/120 (100 hyd. tailstock); Φ75/150* (130* hyd. tailstock)
	Taper of center	MT No.4/ MT No.5*
Carriage	Travel X/Z (mm)	200(150 6-station)/610/550(6-station)/510*
	Rapid traverse X/Z (m/min)	6/8
Turret	Number of stations/type	4 (vertical)/6 (horizontal, optional)
	Dia. of boring tool (mm)	20×20
	Tool section (mm)	Φ32
Others	Power source (kVA)	12 kVA
	Belt of main motor	SPZ1987
	Dimension (L×W×H) (mm)	2150×1260×1600
	Total weight (kg)	1700
	Max. machining weight (supported by tailstock center) (kg)	550(Ф200 manual 3-jaw chuck), 360(6" hyd. chuck), 550(8" hyd.   chuck)
