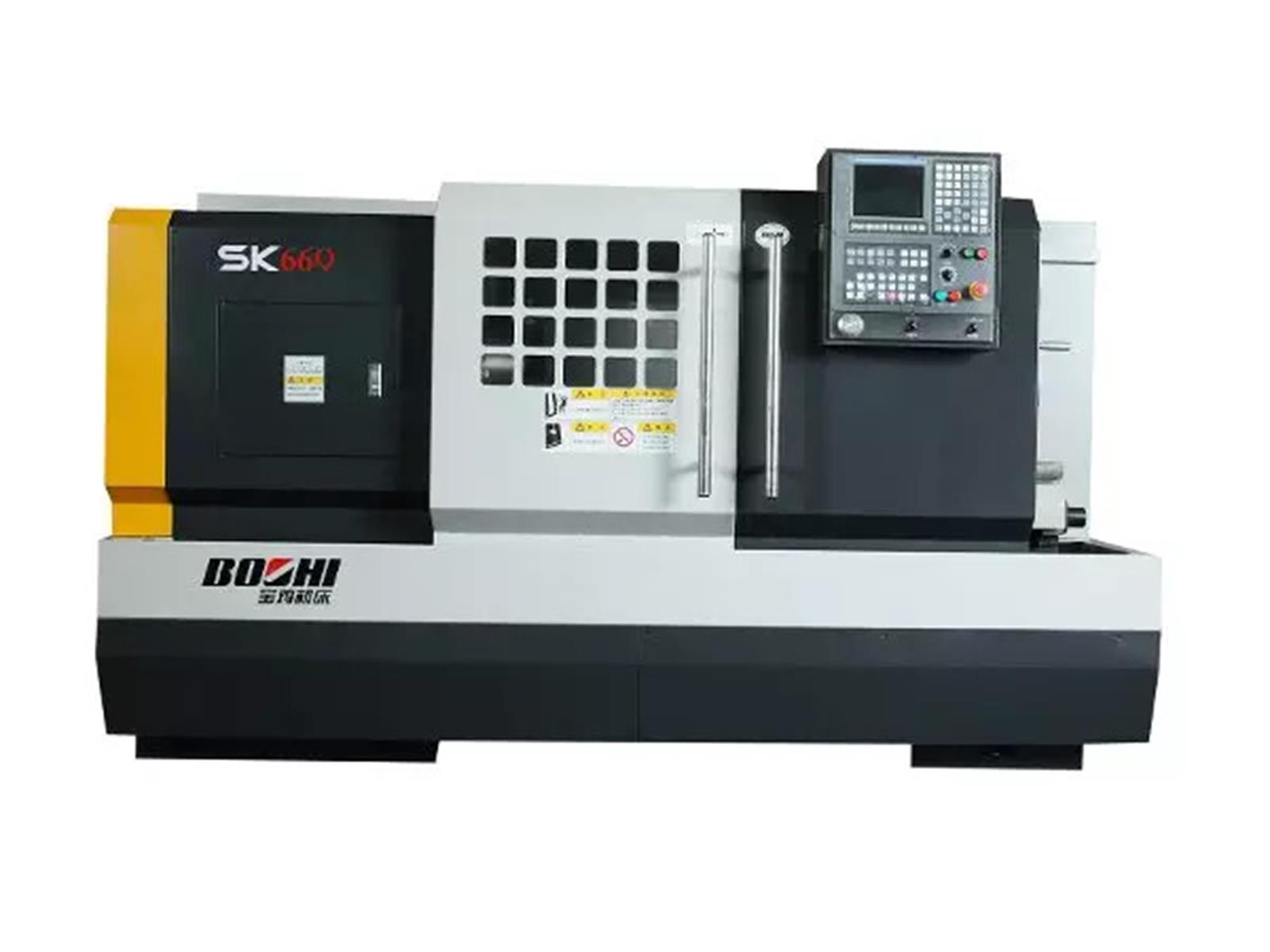

Bochi SK66Q Easy-operated CNC Lathe (SK66Q)

Max. swing over bed (mm)

φ660

Max. swing over slide (mm)

φ440

Max. turning dia. (mm)

φ550/350*

Max. work length (mm)

710/620*; 960/870*;   1460/1370*; 1960/1870*;

Max. turning length (mm)

570/500*; 820/750*; 1320/1250*;1820/1750*;

Spindle taper hole (mm)

φ77

Spindle nose

ISO702/ⅠA 28

Spindle speed (r/min)

3-gear stepless 21-1620

H:1620-1620 M:66-660   L:21-210

Max. output torque of   spindle (N.m)

800

Max. rapid traverse (m/min)

X-axis:6 Z-axis:8 (See OPERATOR’S   MANUAL---ELECTRICAL PARTS for details)

Pitch of screw (mm)

X direction: 5 Z direction： 6

Capacity of turret

4(standard)/6(optional)

Max. permissible tool section (mm×mm)

25×25

Travel of turret (mm)

X direction: 275/210（6-station）

Z direction:   600/850/1350/1850

Dia. of tailstock quill (mm)

φ75（φ80 hydraulic tailstock）

Taper of tailstock quill (MT   No.)

MT No.5（MT No.3 hydraulic tailstock）

Max. travel of tailstock quill (mm)

150（130 hydraulic tailstock）

Cross travel of tailstock (mm)

±15

Main motor

DP132M-4 7.5Kw frequency   inverting motor

Coolant pump

LDPB2-15 180W

V belt

B82(MITSUBOSHI) 4 pcs

Optional: 980T, FANUC   0i-MATE-TD

Note *: data after “/” is for lathe equipped with horizontal 6-station turret   (swing dia. of tool disk is assumed φ360).

Note **: data in parentheses is for lathe equipped with hydraulic station.

Dimension (L×W×H)mm× mm× mm

750

2420×1680×1850

1000

2670×1680×1850

1500

3170×1680×1850

2000

3670×1680×1850

Packing size (L×W×H)mm× mm× mm

750

2550(2870) ** ×1860×2370

1000

2800(3120) ** ×1860×2370

1500

3300(3620) ** ×1860×2370

2000

3800(4120) ** ×1860×2370

Net weight of machine kg

750

2050

1000

2100

1500

2150

2000

2200

Size of power chuck

8＂/10＂

Thru-hole of hollow chuck

φ52
