Item

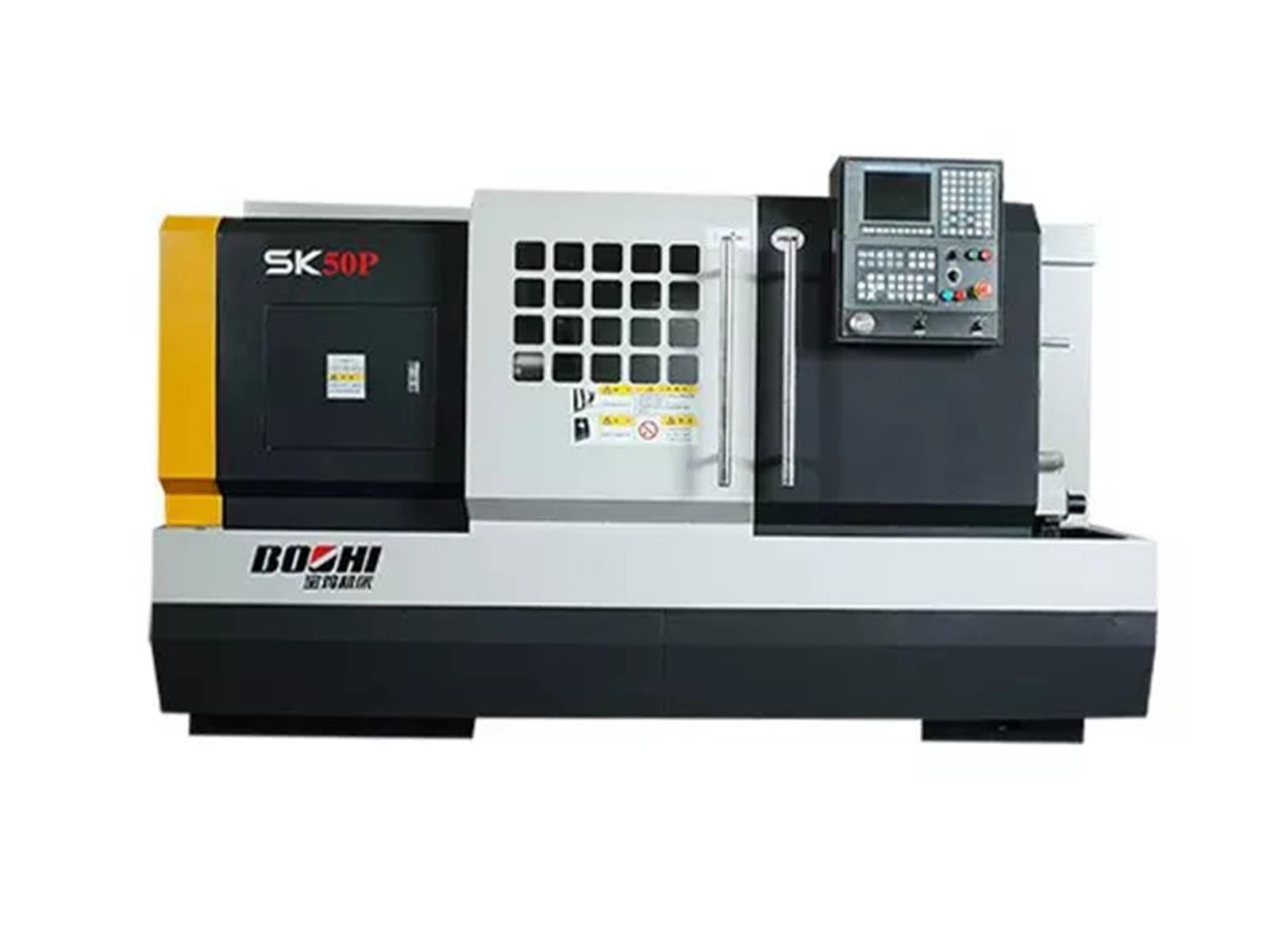

SK50P
Max. swing over bed (mm)
φ500
Max. swing over slide (mm)
φ280
Max. turning dia. (mm)
φ500/350 *
Max. work length (mm)
710/620; 960/870; 1460/1370; 1960/1870;2960/2870
Max. turning length (mm)
570/500; 820/750; 1320/1250; 1820/1750;2820/2750
Spindle taper hole (mm)
φ77
Spindle nose
ISO702/ⅠA2-8
Spindle speed (r/min)
3 gear stepless 21-1620
H:162-1620 M:66-660 L:21-210
Taper hole of spindle
Metric 1:20
Max. output torque of spindle (N.m)
800
Max. rapid traverse (m/min)
X-axis: 6(See OPERATOR’S MANUAL---ELECTRICAL PARTS for details)
Z-axis: 8(See OPERATOR’S MANUAL---ELECTRICAL PARTS for details)
Pitch of screw (mm)
X direction: 5 Z direction: 6
Capacity of turret
4(standard)/6(optional)
Width of tool block(mm)
200X200
Max. permissible tool section (mm ×mm)
25×25
Travel of turret (mm)
X direction: 300/235（6-station）
Z direction: 600/850/1350/1850/2850
Dia. of tailstock quill (mm)
φ75（φ80 hyd. tailstock）
Taper of tailstock quill (MT No.)
MT No.5（MT No.3 hyd. tailstock with live spindle）
Max. travel of tailstock quill(mm)
150（130 hydraulic tailstock）
Cross travel of tailstock (mm)
±15
Main motor
7.5kW frequency inverting motor
Coolant pump
LDPB2-15 180W 3m3/h
V belt
B1905 4 pcs
Note *: data after “/” is for lathe equipped with horizontal 6-station turret (swing dia. of tool disk is assumed φ360).
Dimension (L×W×H) mm× mm× mm
750
2450×1450×1670
1000
2700×1450×1670
1500
3200×1450×1670
2000
3700×1450×1670
3000
4700×1500×1690
Packing size (L×W×H) cm× cm× cm
308(325) **×186×225
313(330) **×186×225
363(380) **×186×225
413(430) **×186×225
504(536) **×186×230
Net weight of machine kg
Machine
2050
2100
2150
2200
3500
Thru-hole of hollow chuck
φ52（with reference to thru-hole of chuck）
Note **: data in parentheses is for lathe equipped with hydraulic station.
