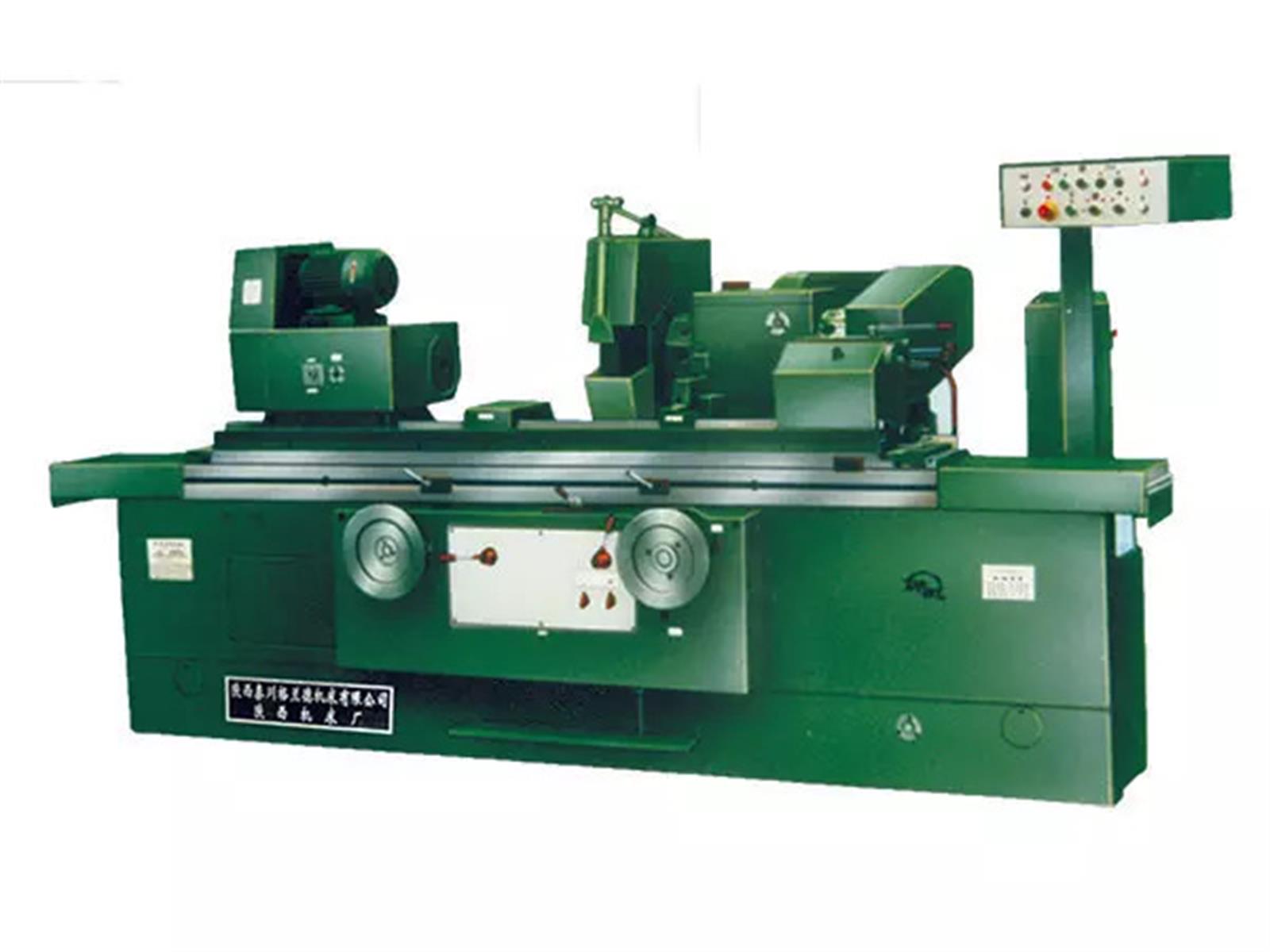

Bochi ME1332A Cylindrical Grinding Machine (ME1332A)

The machine is designed to grind the external surface of cylindrical and conic parts with accuracy of IT6. It is suitable to use in tool workshop, machinery repairing workshop and production workshop for mind-small batch process production. It has the following features: worktable reciprocating movement, wheelhead rapid approach and withdrawal, periodic feed, retractable sleeve of tailstock’s center, lubricating of worktable are all hydraulic controlled. Handlebar and Switch set in the front of machine so the machine is ease operated.

Main accessories
Cooling water tank
Grinding wheel dresser
Grinding wheel balancing
Parallels of the machine
Clamping
Grinding wheel (with flange)



Main accessories supplied on special order
Are dresser
End dresser
Grinding wheel balancer
Positioner




Grinding Dia. mm	With steady rest	Min	mm	Ф15
		Max	mm	Ф150
	Without steady rest	Min	Mm	Ф15
		Max	Mm	Ф320
Max grinding length		Mm		500、750、1000、1500
Max. workpiece weight		KG		150
Center hight		mm		180
Grinding wheel spindle speed		R/min		1100
Grinding wheel		Max	Mm	Ф600x63xФ305
		Min	mm	Ф450x63xФ305
Max wheel speed		m/s		35
Rapid movement of wheel speed		mm		50
Max movement of grinding wheel		mm		285
Max movement of sleeve of tailstock		mm		30
Max. longitudinal travel of worktable		mm		580、830、1100、1600
Max. swing angle of upper-worktable		Agreeable hour hand		3
		Negative hour hand		7, 6, 5, 4
Workstock center		Morse		4
Tailstock center		Morse		4
Total power of motors		Kw		9.475
Overall dimension of machine (LxWxH)		mm		(2249,2718,3238,4269) x 1779 x 1545
Packing case size		mm		(3450, 3450, 3530,4340) x 2000 x 1960
Net weight of the machine		kg		3500, 3800, 4000, 4700
Gross weight of the machine		kg		4000, 4300, 4600, 5500
