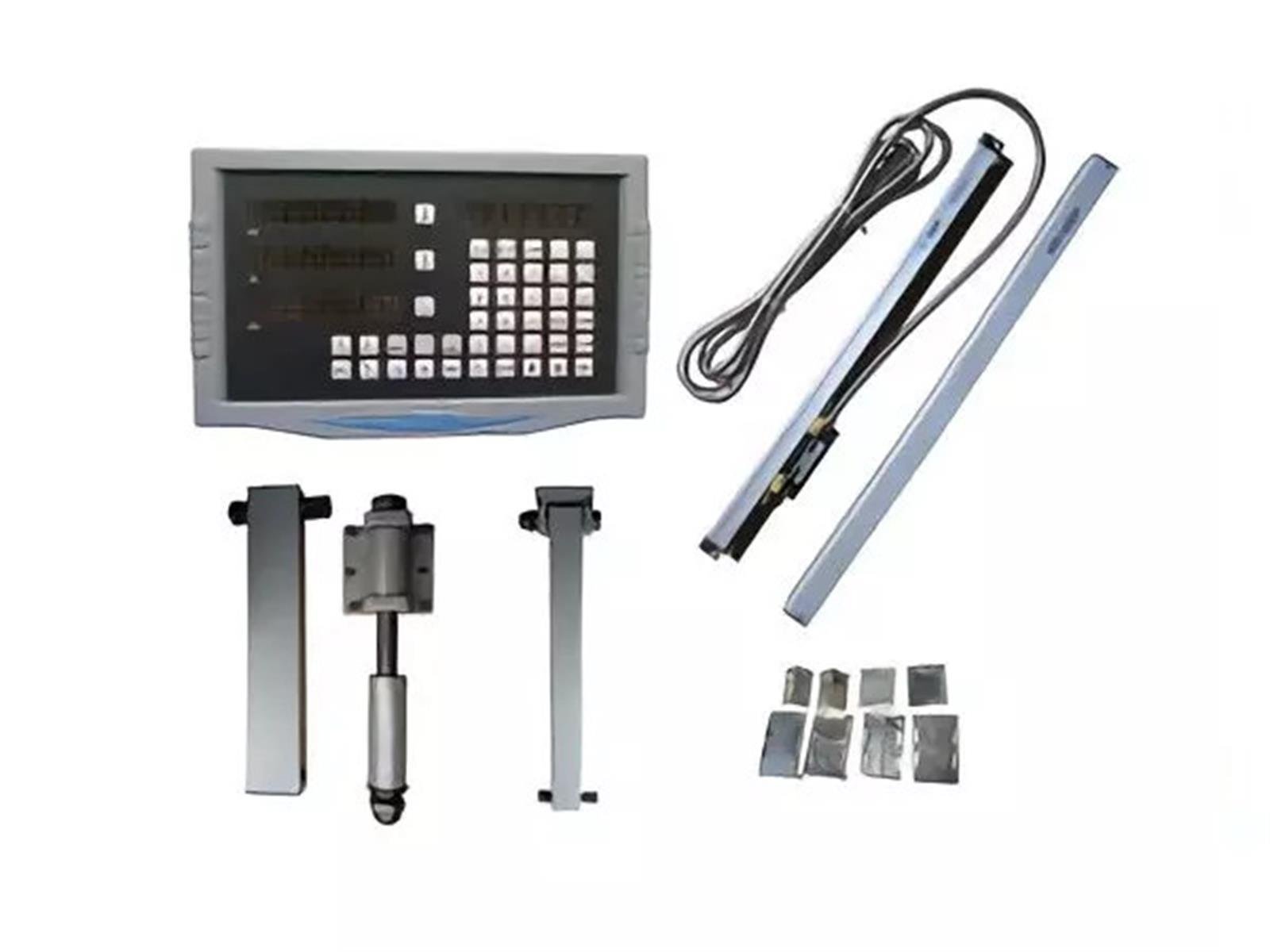

Bochi KA-900 Sino Brand Digit Read Out Dro

SINO brand digit read out DRO
Main features:
SDS6 digital readout employs the newest 16bit SCM technology, can substitute all kinds of basic function and special required function of SDS 2 series. An all-purpose DRO the speed of measurement is faster, and the control system is easier and smoother.Each axis can supply 40 points of non-linear compensations.We can get the compensated value through the double-frequency laser measurement machine, floor boring machine, floor boring machine, high accuracy boring machine, high accuracy grinding machine, lathe, EDM machine, milling machine and so onAnd it supplies special function that to control the processing speed of lathe.When you process the wokpiece's inside/outside in circle by lathe, the DRO can output relative simulative signal on the basic of the change of the radius of the workpiece to control the principal axis's transducer.

Model	KA-900
Code No.	904463
Measures length(mm)	50
Cross section(mm)	21x40
Accuracy	±3,±5,±10(20ºC,680F 1000mm)
Reference point	Each/50mm
Max of  measuring speed	60m/min
Protection	Lp53
Resolution	0.5/1/5
Output	TTL
