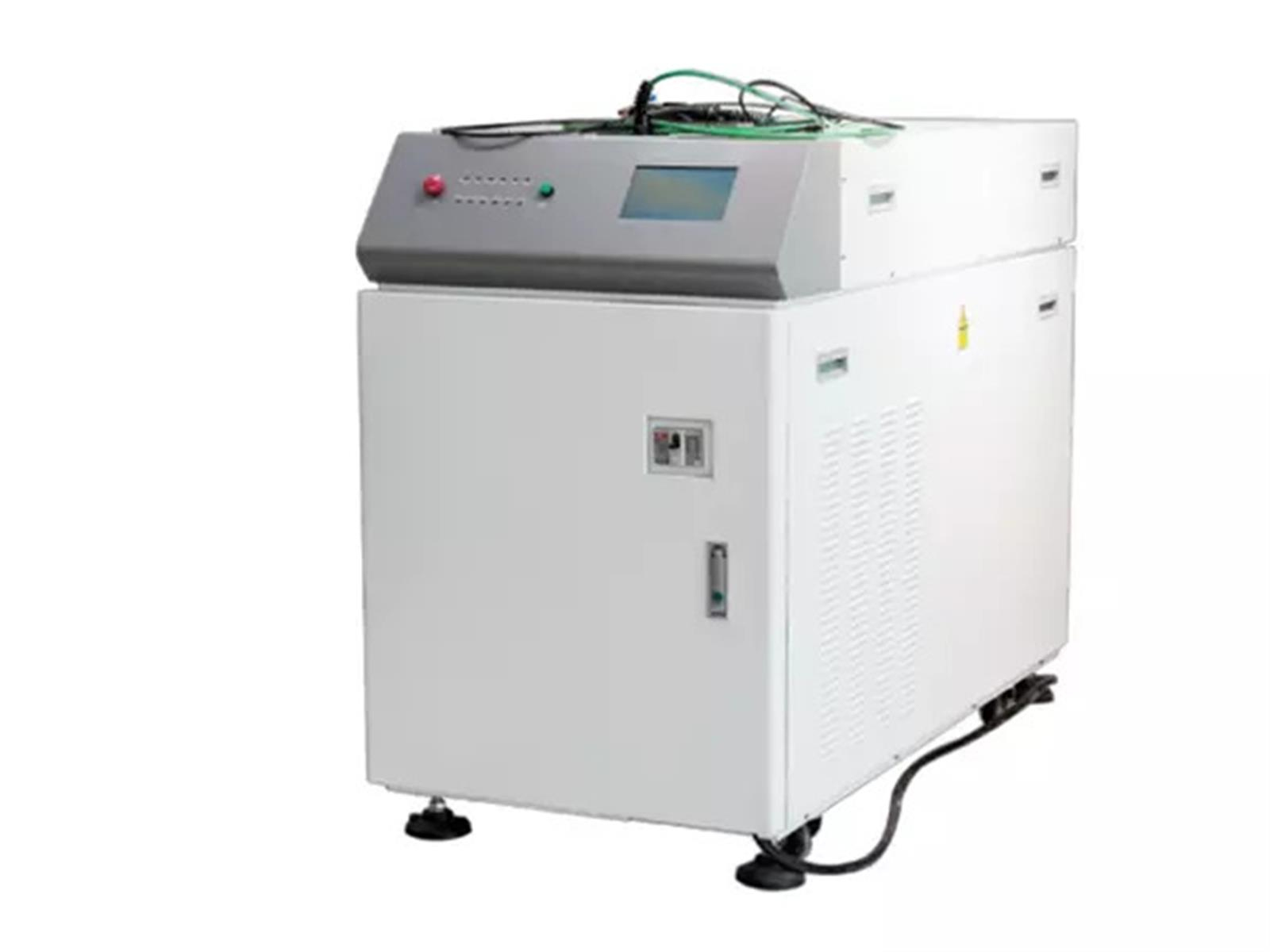

Bochi JHJ-G300 Fiber Laser Welder (JHJ-G300)

Introduction
Fiber laser welder adopts power feedback method ,which significantly improved energy stability comparing with traditional current feedback .Fiber laser welder does not have power decay due to power feedback technology
Advantages
High depth-to-width ratio,small welding seam
Little thermal distortion ,small heat affected zone
High welding speed
Non-contact welding,flexible transmission
CCD camera monitoring system
Uniform distribution of welding spot energy
Application
Used in optical communication devices, medical, microelectronic components, batteries, optical fiber couplers, picture tube gun, metal parts, vibration motor, precision parts, automotive steel and other precision welding.
Widely used in laser energy stability requirements more stringent Laser welding field.

Model	JHJ-G300
Laser types	YAG
Max.laser power	300W
Laser wavelength	1064nm
Max. Laser pulse energy	100J
Laser split method	Time split or energy split
Pulse width range	0.5ms-15ms
Successive pulse width ( 1sec. )	100ms/s
Welding depth	<3mm(Stainless steel)
Pulse frequency	1-100Hz
Power consumed	15KW
Power supply	AC 380V/50Hz
Cooling method	Water cooling
Dimensions ( W×L×H )	66cm×130cm×107cm
Fiber	Mitsubishi or domestic
