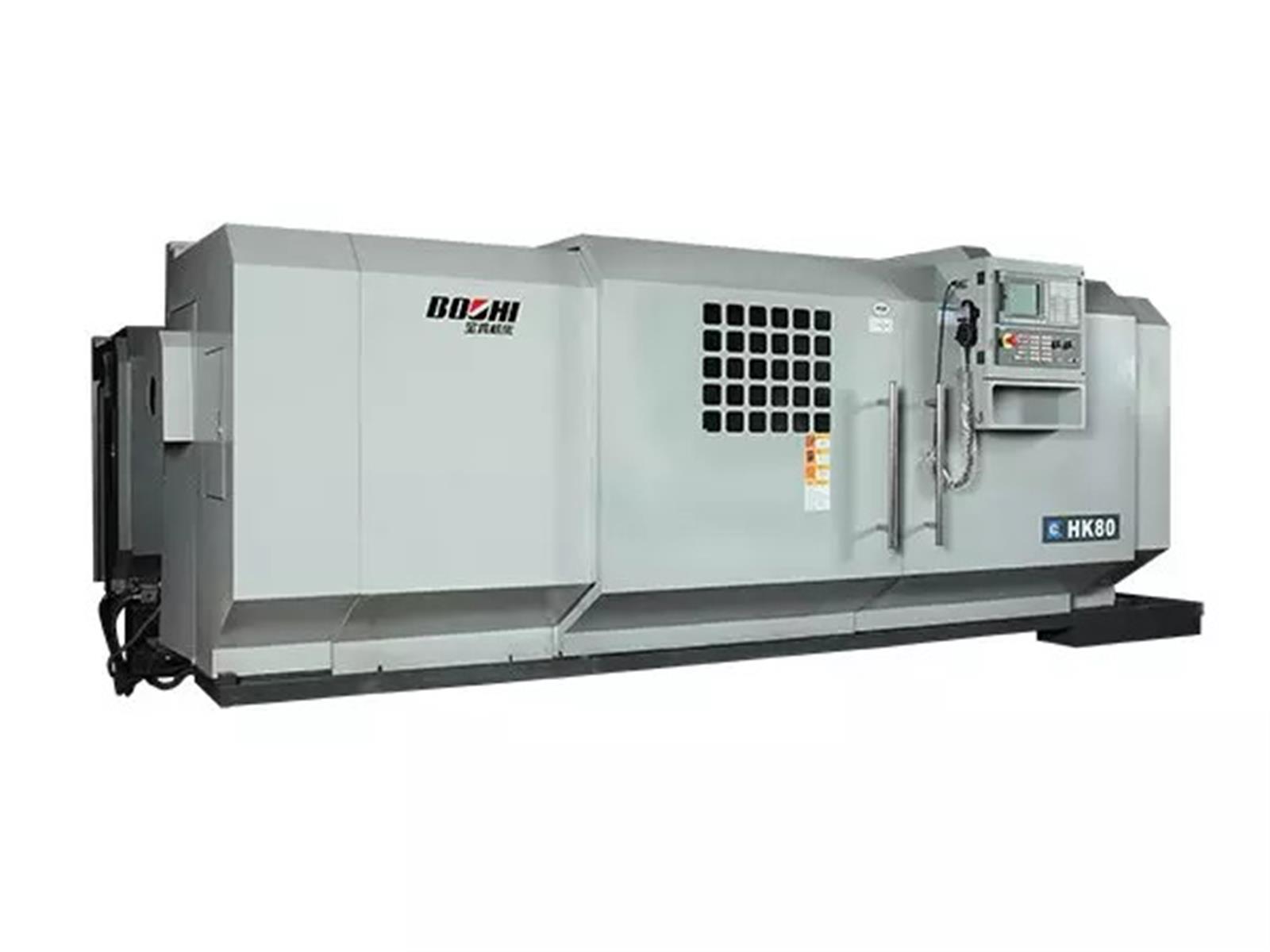

HK80 easy-operated horizontal CNC lathe is an economical lathe. It is suitable for cutting short shaft type and plate/ring type workpieces. Operations performed on the lathe are ID/OD turning, any taper turning, arc surface turning, facing and metric/inch threading.
A cartridge type main spindle rotates without vibration, and outputs 4-step speed hydraulically with infinite variable speed within each step. The high-grade cast iron bed is designed to damp vibration and assures high accuracy. Centralized machine operator’s panel 4-station power turret is equipped; 6-station turret is optional. It is recommended to use shockproof boring bar when ratio of boring bar’s length to diameter is larger than 3.
Item
Capacity
Max. swing over bed (mm)
φ800
Max. swing over slide (mm)
φ480
Max. turning dia. (4-station) (mm)
Distance between centers (mm)
1000/1500/2000/3000/4000
Spindle
Spindle bore (mm)
φ105
Spindle nose
A1-11
Chuck dia. (mm)
φ315 (manual chuck)
Bore of spindle bearing (mm)
φ160 /φ140 /φ130
Spindle speed (r/min)
I 20-204
II 39-354
III 71-642
IV 124-1000
Max. spindle torque (Nm)
2159
Carriage
Width of bed guideway (mm)
650
X/Z-axis motor and power (kW)
KND(4.7/5.5)；FANUC(1.4/2.5)；FANUC(1.4/3)
X/Z-axis rapid traverse (m/min)
6/7
X/Z-axis screw dia. and pitch (mm)
φ40×5/φ50×5（1000/1500）；φ40×5/φ63×8（2000/3000）；φ40×5/φ63×10（4000）
X/Z-axis travel (mm)
430，760/1350/1850/2850/ 3850
Turret
Tool section (turning mm)
32×32
4
Width of tool block (mm)
230×230 (standard equipment)
Tailstock
Tailstock quill dia. (mm)
φ100（1000/1500/2000）；140（3000/4000）
Tailstock quill taper (MT No.)
5（1000/1500/2000）；6（3000/4000）
Max. travel of quill (mm)
250（1000/1500/2000）；200（3000/4000）
Others
Power (kVA)
40
Main motor (kW)
15 kW frequency inverting motor
Dimension of machine (L×W×Hmm)
4280×2200×1900 （1000）
4880×2200×1900 （1500）
5800×2260×1900 （2000）
6850×2260×1900 （3000）
7700×2350×1900 （4000）
Net weight (kg)
7200/8000/8600/9600/11000
