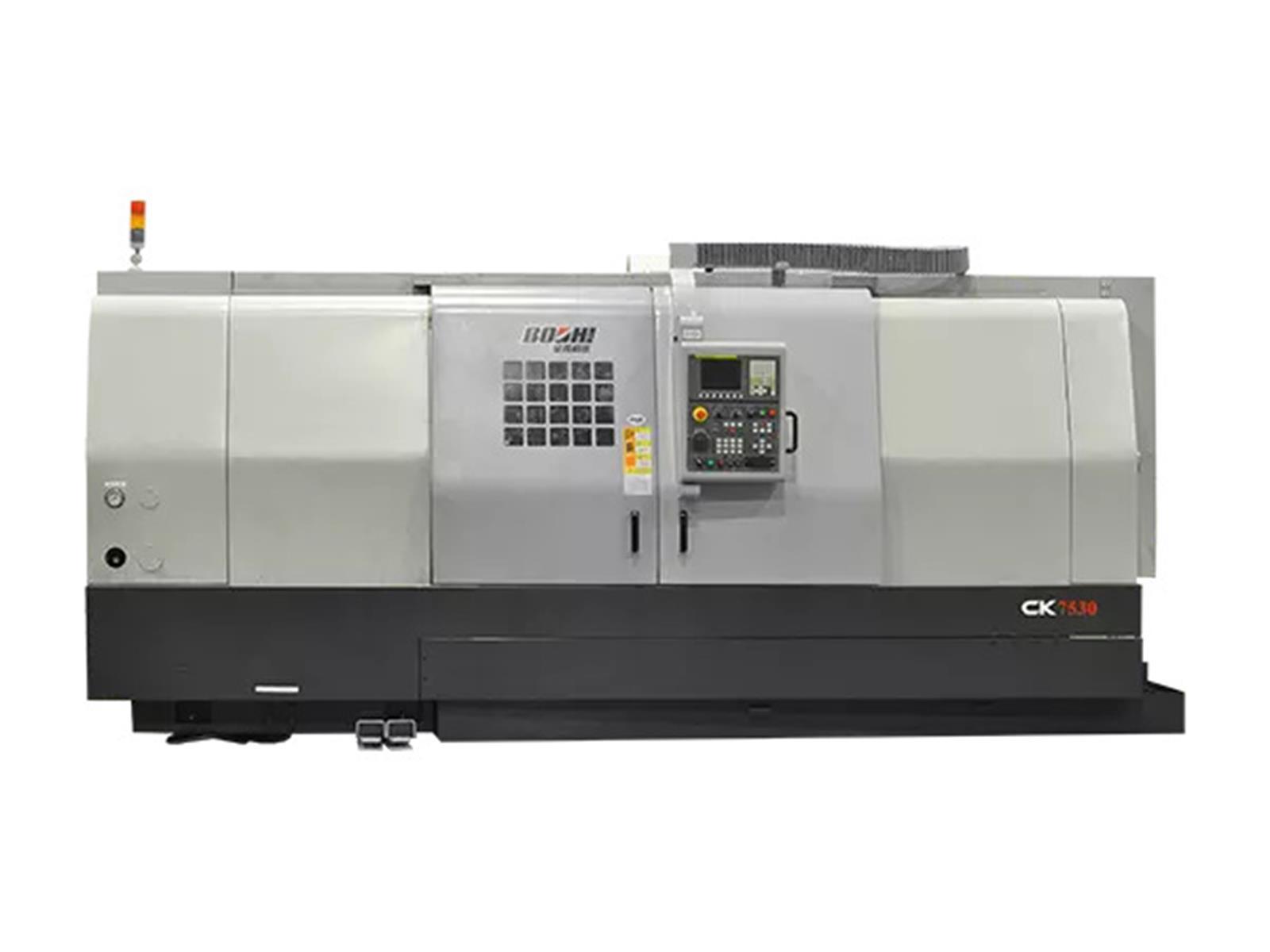

Bochi CK7530 CNC lathe (CK7530)

CK7530 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.


Item	Description	Unit	CK7530
			Power turret	Hyd. Turret
Capacity	Max swing over bed/slide	mm	Φ670/Φ470
	Max turning length	mm	1500(800)
	Max turning dia	mm	Φ600	Φ550
	Max bar dia	mm	Φ90
Spindle	Hydraulic chuck dia	mm	Φ305
	Spindle nose		A2-8（GB5900.1）
	Spindle thru-hole	mm	Φ105
	Spindle speed	r/min	25--2500
			L:12-830 H:50-2500 (with speed reducer)
	Main motor(cont./30min)	kW	22/30; 22/26 (with speed reducer)
Tailstock	Quill dia/travel	mm	Φ110/150
	Center taperof standard/live spindle structure	MT No	6/5
Carriage	Slant angle	DEG	60°
	X/Z-axis travel	mm	325/1550(880)	305/1550(880)
	X/Z-axis rapid traverse	m/min	12/16
Turret	Number of stations		12/8	12/8
	Tool section(turning/boring)	mm	32×32/Φ50
Others	Power supply	kVA	60
	Dimension(L×W×H )	mm	4820×2130×2180（3820×1990×2040）
	Gross weight(net)	kg	9730(8330)
