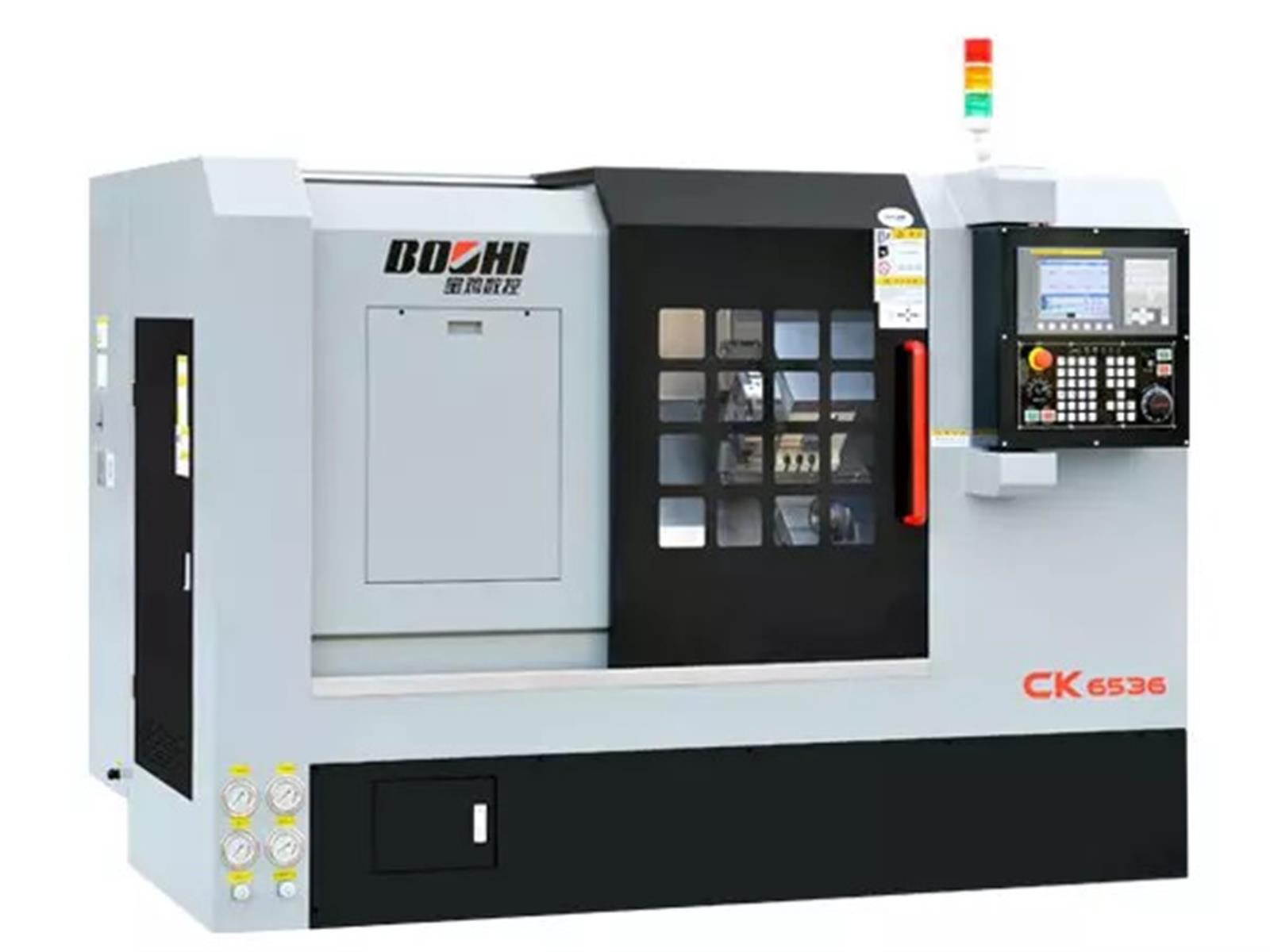

Bochi CK6536 CNC Lathe (CK6536)

45° integrated incline guideway structure, so high rigidity is ensured.
High precision cartridge type spindle unit is equipped with imported P4-class row short roller bearings, the Max. Speed of spindle is 3500 rpm/min.
The two feed by large pitch ball screw bearings with special support bearings, screw rotation accuracy, high precision
Unique oil and water separation structure without oil-water separator, lubricating oil can be recovered independently.
The tail seat guide rail adopts a steel sliding guide rail, the tail seat body adopts the hydraulic automatic locking, the guide and the stability are good.
Full enclosed protection,side mounted coolant tank and chip box ensure fluent chip disposal and easy remove. Transposition type operation panel is safe and convenient to operate.

FANUC  Oi- TF
Cartridge type spindle unit
Imported high precision spindle bearing
Servo main motor
FANUC servo motor
Linear way from Taiwan
Precision ball screw from Taiwan
Bearing especially for screw imported  from Japan
Domestic 6” hollow hydraulic rotating  cylinder
Domestic 6” holly hydraulic 3- jaw chuck
8-station horizontal hydraulic turret  from Taiwan
Hydraulic tailstock





GSK/SYNTEC/SIEMENS system
8-station horizontal electric tool station
Servo main motor
6”solid hydraulic rotating cylinder from Taiwan
8”solid hydraulic 3-jaw chuck
Automatic chip machine

Item		Unit	CK6536
Capacity	Max. swing over bed	mm	Φ400
	Max. swing over slide	mm	Φ200
	Max. Machining diameter	mm	Φ360
	Max. machining length	mm	330
	Max. bar dia.	mm	Φ42
	Thru-hole of spindle	mm	Φ57
Spindle	Type of spindle nose		A2-5
	Taper of spindle bore	mm	MT No.6
	Max. speed of spindle	rpm	4500
	Chuck diameter	Inch	Φ169 (6’’)
Feed	Travel X/Z	mm	190/350
	Dia×pitch of screw X/Z	mm	Φ32×8/Φ36×10
	Rapid traverse X/Z	m/min	16/18
	Type of tool post		Hydraulic horizontal
Tool block	Number of section	pcs	8
	Center height of tool	mm	80
	Tool specification : turning/boring	mm	25×25/Φ32
	Dia./travel of quill	mm	Φ75/140
Tail stock	Taper of quill bore		MT No.5
	Type of sleeve drive		Hydraulic
	Movement of tail stock/ type of lock		Manual operation
	Power of spindle motor	kW	7.5/11
Motor	Torque of spindle motor	Nm	47.8/70
	Power of motor X/Z	kW	1.4/1.2
	Torque of motor X/Z	Nm	10.5/7
	Power of coolant pump motor	W	370
	NC controller		FANUC Oi- TF
Others	Power capacity	KVA	20
	Type of saddle layout		45°(Slant integrated bed)
	Type of guide way		Precision linear guideway
	Net /rough of machine	kg	2500/3050
	Dimension of machine(L×W×H)	mm	2370×1662×2055
	Size of packing box((L×W×H)	mm	2879×2015×2380
