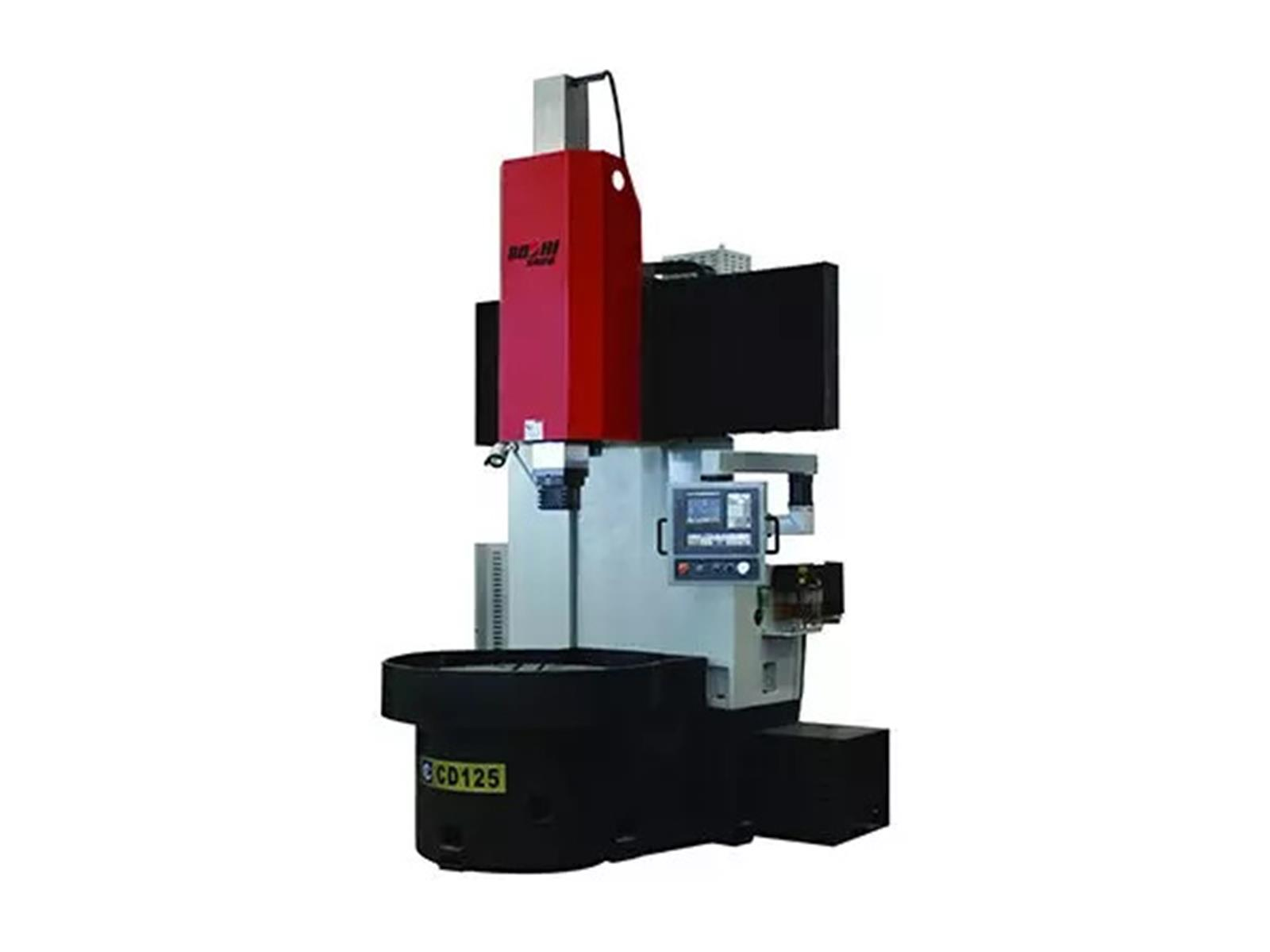

Bochi CD125 Vertical CNC Lathe (CD125)

This efficient vertical lathe is designed for rough/finish machining of motor casings.
The base and column are made up of high grade cast iron with good vibration damping and stability.
Vertical structure, easy for workpiece to be set, small floor area.
Medium frequency hardened and precision ground, the sliding ways of X-axis crossbeam offer good dynamic response and lasting accuracy. The ways are coated with substance especially for guide ways, low friction, wearing resistance and quick response.
Square slide sleeper structure is used in Z-axis with high rigidity. It has the advantage of machining large and deep hole.
Centralized operation panel makes it an ease to operate the lathe.
All measuring units accord with international measuring system.
High accuracy ball screws and bearings are used in X/Z axes, with lasting accurac

Description		Unit	Specification
Capacity	Dia. of table	mm	1000
	Max. swing dia.	mm	Φ1250
	Max. turning dia.	mm	Φ1100
	Max. work length	mm	900
	Max. work weight	kg	4000
Table	Rotation speed of table	r/min	15~150
	Max. torque of table	Nm	1500
	Power of main motor	kW	15 (general motor)
Feed	Travel X	mm	650
	Travel of slide sleeper Z	mm	900
	Rapid traverse X/Z	mm/min	10/10
	Servo motor torque X/Z	Nm	23/23
	Servo motor power X/Z	kW	4.0/4.0
	Ball screw diameter X/Z	mm	Φ50 /Φ50
Turret	Number of tools		2
	Tool section	mm	32×32
Others	Power	kVA	25
	Dimensions(L×W×H)	mm	2420×2081×3535
	Gross weight	kg	10000
