Bochi BZXL22 Wheel Hub Machining Cell (BZXL22)

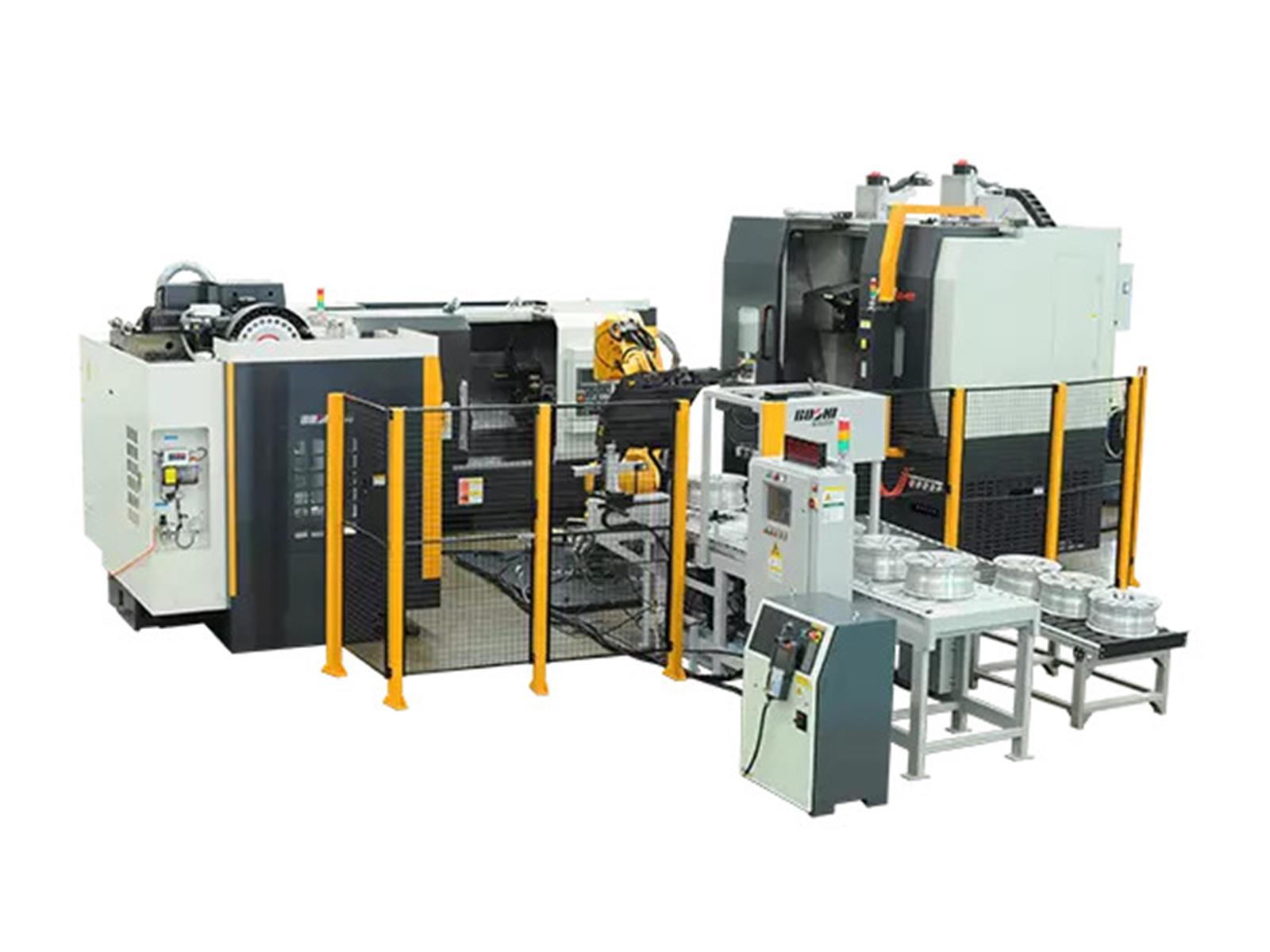

BZXL22 wheel hub machining cell is designed for turning and drilling aluminum automotive wheels. It mainly consists of 2 sets CNC lathes designed specially for wheel, 1 set vertical machining center, 1 set of industrial robot and 1 set of auto loading/unloading and testing system, which are arranged in a ring islands. It can meet the needs of market for machining aluminum wheels ranging for “14” to ”22”.

Items		Unit	BZXL22
Machining range of wheel		in	14～22
Load of wrist of   industrial robot		kg	165
Effective radius   of wrist of industrial robot		mm	2665
Wheel turning   machine	Max. swing over   bed	mm	φ750
	Max. turning   dia.	mm	φ630
	Main motor power   (cont./30min)	kW	30/37
	Number of tool   stations		12
Vertical   machining center	Table area	mm	1050×500
	Permissible load	kg	600
	Spindle motor   power (cont./15min)	kW	7.5/11
	Number of tool   stations		24
Speed reducer of   transmission belt		kW	0.75
Capacity of   machining unit		kVA	175
Floor area (L×W)		mm	12000X11000
