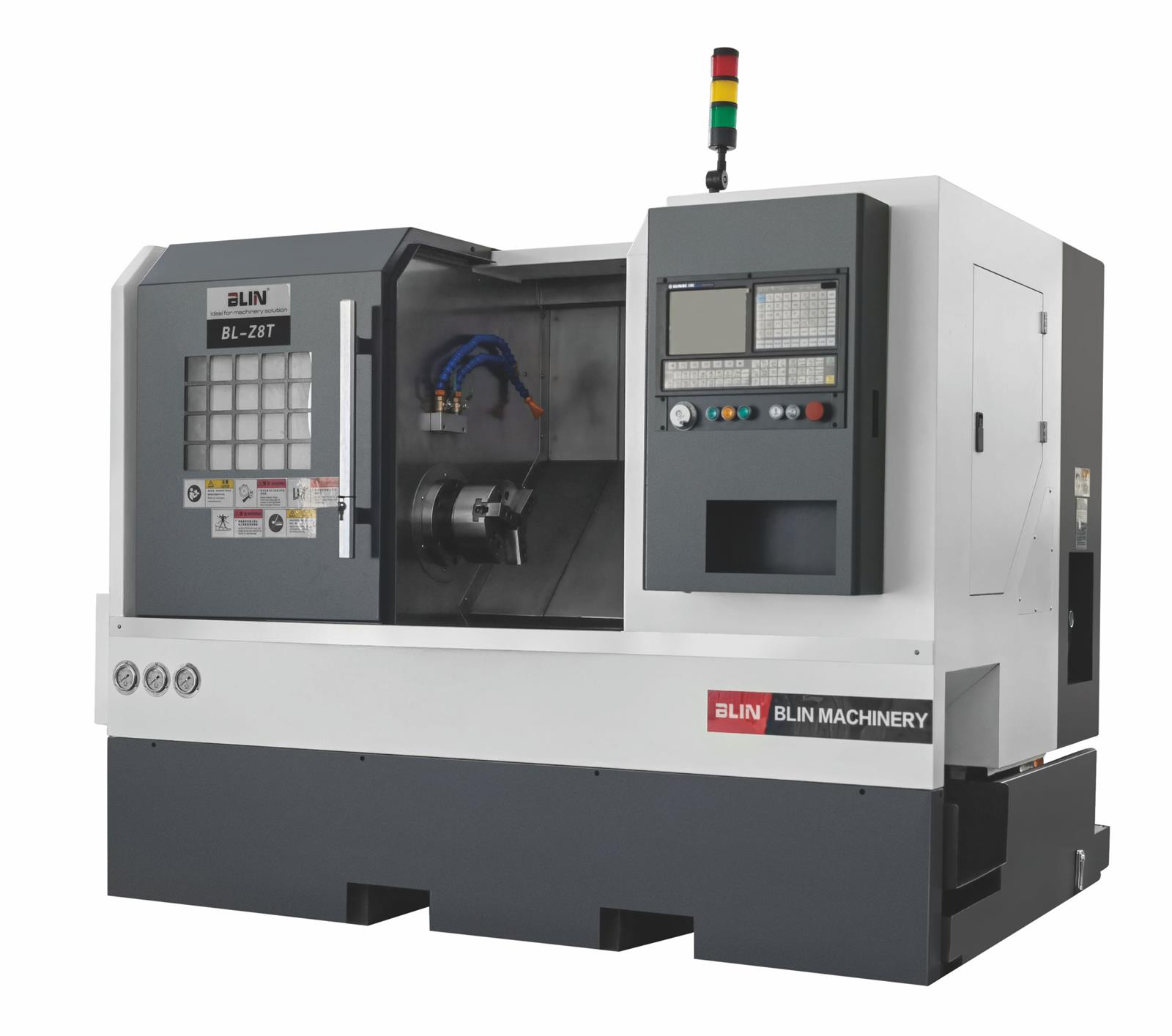

Blin BL-Z6T Slant Bed CNC Lathe(Z Economical Series) (BL-Z6T)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Lathes

Slant-Bed CNC Lathe

Z Economical Series
Economical
6''/8''/10'' chuck
8T/10T tool turret
Hydraulic tailstock

Standard configuration:
GSK CNC controller
Hydraulic chuck
8/10 station hydraulic tool turret
Hydraulic tailstock

Features:
Super high performance-price ratio
Mono-block 45° slant bed
For Z8T, X,Z axes adopt ROLLER type linear guideway

Chip conveyor

Item	Specification	Unit	BL-Z6T
Capacity	Chuck size	/	6''/8''*
	Max. swing dia. over bed	mm	Φ360
	Max. machining dia.(disc type)	mm	Φ250
	Max. machining dia.(shaft type)	mm	Φ180
	Center distance	mm	350
	Max. turning length	mm	300
	Max. bar through dia.	mm	Φ45
Spindle	Spindle speed	rpm	4000
	Spindle bore	mm	Φ56
	Spindle nose	/	A2-5
	Spindle motor	kw	5.5(Servo)
Tool turret	Tool turret type	/	8 station Hydraulic tool turret
Tool turret	Toolshank size	mm	25×25,Φ32
X/Z axes	X axes travel	mm	200
	Z axes travel	mm	330
	X/Z axes servo motor	Nm	10/10(GSK)
	X/Z axes Linear guideway width	mm	25/30
	X,Z axes ball srew O.D./pitch	mm	Φ32/10
	X/Z axes rapid moving speed	m/min	20
	X/Z axes positioning precision	mm	+/-0.006
	X/Z axes repeatable positioning precision	mm	+/-0.005
Tailstock	Tailstock quill travel	/	80
Tailstock	Tailstock quill taper	/	MT4#
Others	Overall size	mm	2210×1660×1620
Others	N.W.	kg	2500
