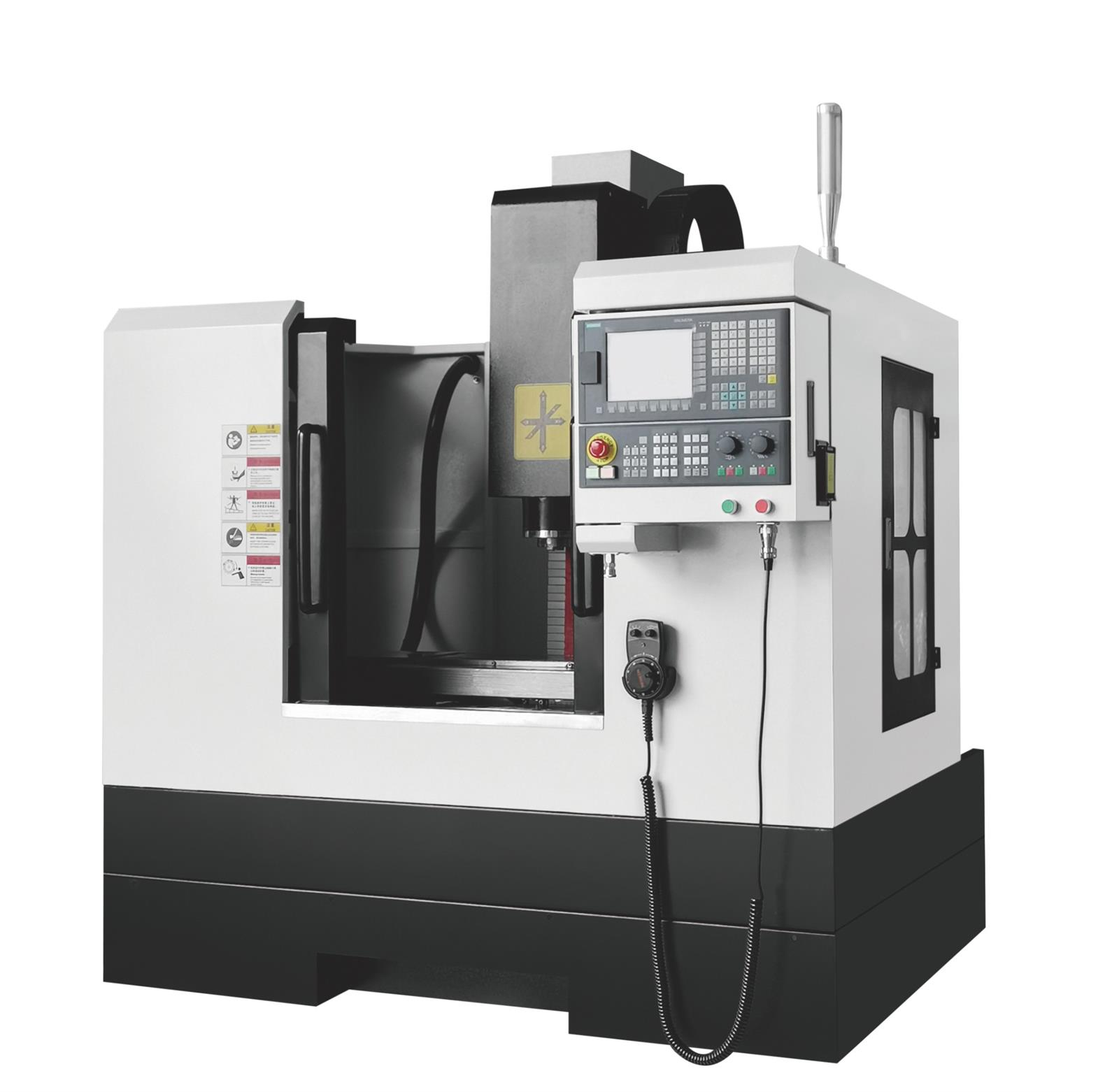

Blin BL-Y25 CNC Milling (BL-Y25)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Milling Machines

CNC Milling Machines

SWALLOW-TAIL shape HARD guideway
Without tool magazine

Standard configuration:
SIEMENS 808D ADVANCED CNC controller
Half closed cover

Features:
Adopt mature conventional cnc milling machine structure, good stability.
SWALLOW-TAIL shape HARD guideway
Without tool magazine

Item	Brand
Ball screw bearing	CHINA top-HRB P4 class/Z axes NSK
Ball screw	CHINA top
Dishing spring	GERMANY
Spindle unit	TAIWAN
Inveter	TAIWAN TECO/JAPAN YASKAWA
Booster cylinder	TAIWAN
Pneumatic parts	TAIWAN-AIRTAC
Electricity parts	FRANCE-SCHNEIDER
Lubrication pump	Joint-venture

GSK980MD CNC Controller
Stepper motor
Full closed cover
4th axes rotary table

Item	Specification	Unit	BL-Y25
Worktable	Table size	mm	700×260
Worktable	T slot(NO./width/gap)	mm	3/14/63
X/Y/Z axes	X/Y/Z axes travel	mm	400/250/280
	X/Y/Z axes ball screw(dia./pitch)	mm	32/6
	Cutting feeding speed	m/min	6~10
	Rapid moving speed	m/min	15
	Positioning precision	mm	±0.01
	Repeatable positioning precision	mm	±0.008
Spindle	Max. distance from spindle nose to worktable surface	mm	380
	Distance from spindle center to column surface	mm	250
	Spindle type	/	BT40
	Spindle motor	kw	2.2(inverter)
	Spindle speed	rpm	6000
Tool magazine	Tool magazine type	/	N/A
Others	Overall size(Half closed cover)	mm	1510×1200×2010
	Overall size(Full closed cover)	mm	1760×1840×2010
	N.W.(Half/Full closed cover)	kg	1300/1500
