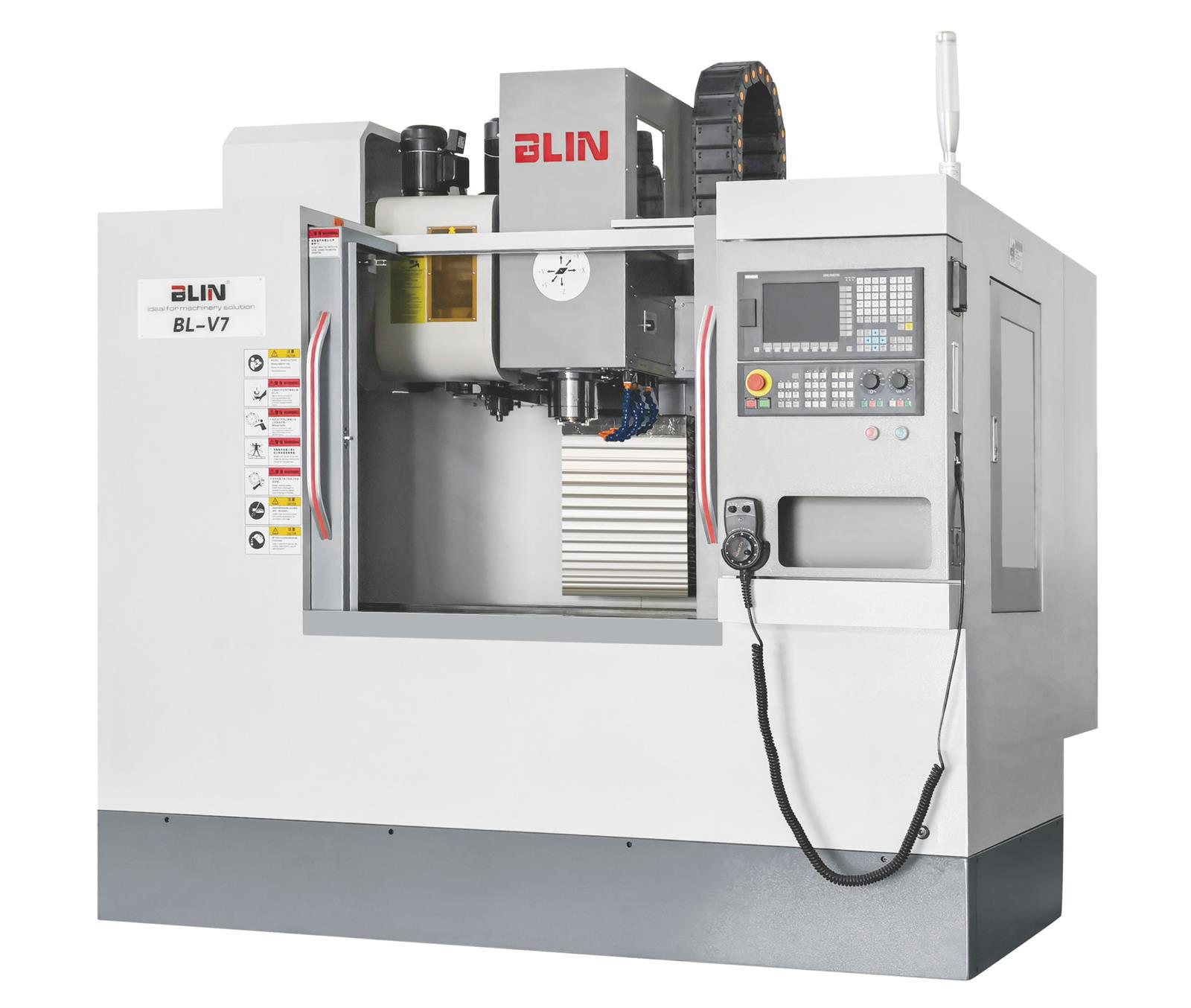

Blin BL-V7 CNC Milling (BL-V7)

GERMAN TECHNOLOGY
TAIWANESE QUALITY
LINEAR guideway
12/16T TOOL MAGAZINE

Standard configuration:
SIEMENS 808D ADVANCED CNC Controller
16T ARMtype tool magazine

Features:
Suitable for medium-sized cutting
3 axes adopt high precision linear guideway
Designed by GERMAN engineer
Whole production process accord to TAIWANESE standard
Chips outlet set at back of machine
Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
High speed, high precision, long using lifespan
Adopt HT300 high class cast iron,after aging treatment and FEA analysis
Bridge shape column, high rigidity, high stability
3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision

Item	Brand
Spindle bearing	JAPAN-NSK
Ball screw bearing	TAIWAN-TPI
Ball screw	JAPAN-THK/TAIWAN-HIWIN
Linear guideway	JAPAN-THK/TAIWAN-HIWIN
Spindle unit	TAIWAN-VYU CHENG
Tool magazine	TAIWAN-OKADA
Booster cylinder	TAIWAN-HAOCHENG
Pneumatic parts	TAIWAN-AIRTAC
Electric parts	FRANCE-SCHNEIDER
Lubrication pump	TAIWAN-BEISUN

SIEMENS 828D/FANUC 0I MFCNC Controller
12T Umbrella type tool magazine
4th axes
Tool setting probe
CTS(coolant through spindle)

Item	Specification	Unit	BL-V7
Worktable	Table size	mm	900×400
	Table max. loading	kg	300
	T slot(NO./width/gap)	mm	3/14/100
Travel	X/Y/Z axes	mm	720/450/470
Spindle	Distance from spindle nose to table surface	mm	120~590
	Distance from spindle center to column surface	mm	440
	Spindle type	mm	BT40/Φ120
	Spindle motor	kw	5.5
	Spindle speed	rpm	8000(option:10000 belt-drive/12000 direct-drive)
Feeding axes	Cutting feed speed	m/min	10
	X/Y/Z axes rapid moving speed	m/min	36/36/30
	X/Y/Z axes feeding motor	Nm	6/6/11(SIEMENS 808D ADVANCED)
	X/Y/Z axes ball screw dia./pitch	mm	32/16
	X/Y/Z axes linear guideway width	mm	30/30/30
Precision	Positioning precision	mm	±0.005
	Repeatable positioning precision	mm	±0.003
Tool magazine	Tool magazine type	/	Arm type 16T
	Max. tool weight	kg	8
	Max. tool length	mm	200
	Max. tool dia.(fully loaded)	mm	Φ80
	Max. tool dia.(no adjacent tool)	mm	Φ150
	Tool changing time	/	Tool to tool: 1.8s
Others	Overall dimension(L×W×H)	mm	2220×2000×2160
	Weight	kg	3200
