Blin BL-S450 CNC Drilling & Tapping (BL-S450)

Brand : Blin

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Drilling & Tapping Machines

CNC Drilling & Tapping Machines

8T PATENT Hign speed ATC
High RIGIDTY
High EFFICIENCY

Standard configuration:
SYNTEC 6MD CNC controller

Features:

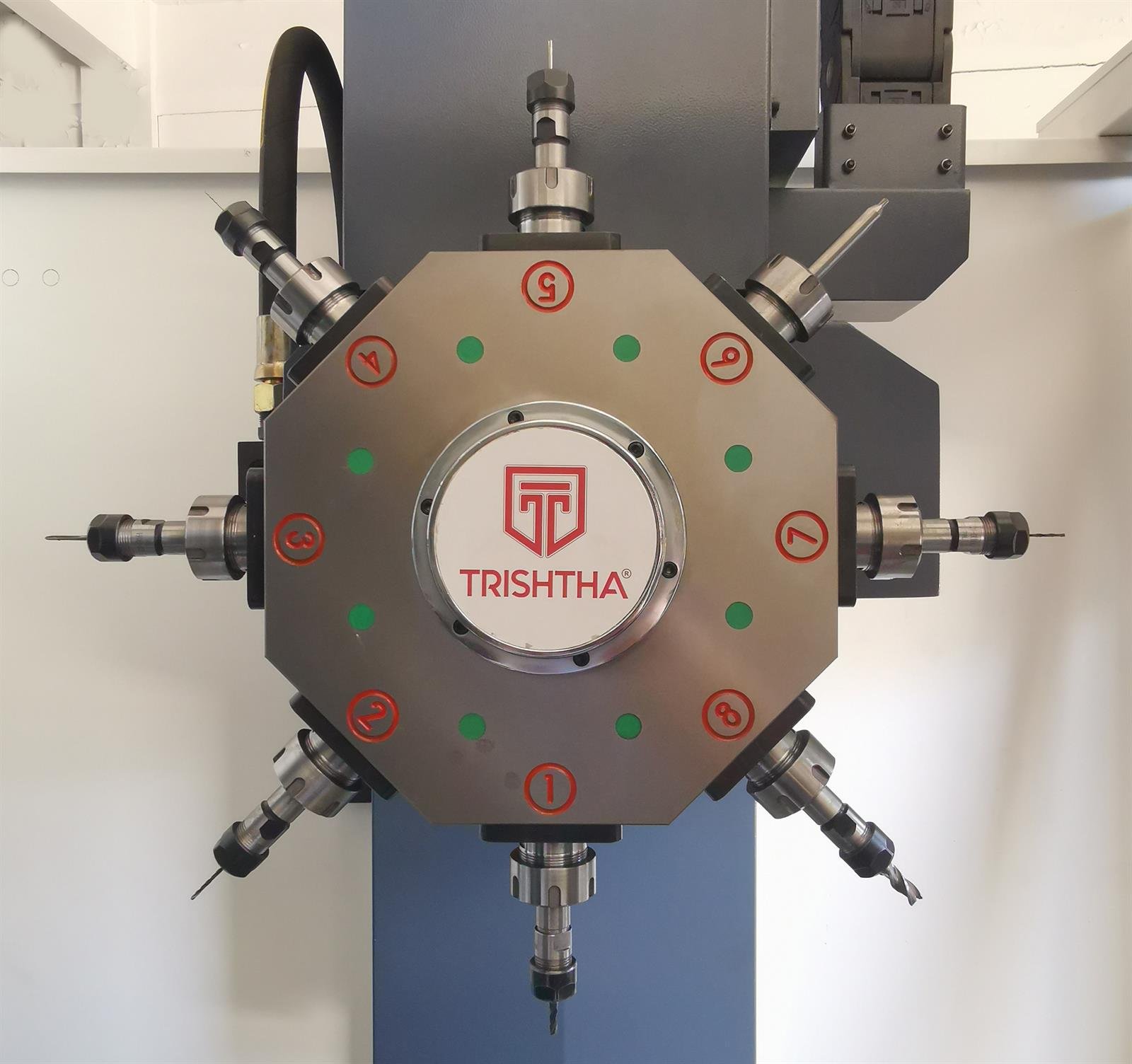

PATENT design high speed& high rigidity TURRET type tool changer
Super FAST tool changing(HIGH EFFICIENCY)
Especially suitable for multiple operation’s combination, batch and high efficiency production
Machining efficiency is higher than CNC Milling Machine, Rigidity is higher than traditional CNC drilling& tapping center
Tool changer driven by servo motor(HIGH PRECISION), lock by hydraulic(HIGH RIGIDITY)
Adopt HT300 class cast iron
3 axes adopt wide linear guideway, high rigidity
3 axes adopt big pre-stretched ball screw

Comparison with common tool magazine of cnc machining center

Our 8T tool magazine	Tool magazine of cnc machining center
Simple structure, good stability	Complex structure,high failure rate
Tool changing speed ＜1.2s	Tool changing speed ＞3s
Can change tool at random height	Have to change tool at required height
Tool never drop	Sometimes tool drop
No pull studs	Pull studs easy wear
Spindle not wear	Spindle easy wear
Tool holder will not block	Tool holder usually block
Good precision stability	Easy stick chips in spindle,difficult to keep stability
Tool qty max. 8T	Can be 16-24T
Max. speed only 6000rpm	Can be 6000-12000rpm
Tool holder not compatible	Tool holder is compatible
Tools has big interference	Small interference

Item	Brand
Ball screw	TAIWAN-SHAC/PMI/HIWIN C3 class
Linear guideway	TAIWAN-PMI/HIWIN H class
Ball screw bearing	CHINA top-HRB P4 class
Spindle	Own-made
Spindle bearing	CHINA Top-HRB
Tool magazine belt wheel& belt	USA-GATES
Tool magazine bearing	JAPAN-NSK
Main electric parts	FRANCE-SCHNEIDER
Lubrication pump	Joint-venture

SYNTEC 22MA/FANUC 0I MF CNC controller
4th axes

Item	Specification	Unit	BL-S450
Capacity	Max. drilling dia.(U driller)	mm	Φ20
Capacity	Max. tapping dia.(standard/optional)	mm	M12/M16
Worktable	Table size((L×W)	mm	550×320
	T slot(NO./width/distance)	mm	3/14/92
	Table max. loading	kg	180
Spindle	Spindle motor power	kw	3.7/5.5
	Spindle type	/	Own-made(ER32)
	Spindle speed range	rpm	6000
	Distance from spindle nose to table face	mm	130~460
X/Y/Z axes	X/Y/Z axes travel	mm	435/280/330
	X/Y/Z axes rapid moving speed	m/min	32
	X/Y/Z axes positioning accuracy	mm	±0.008/300
	X/Y/Z axes repeatable positioning accuracy	mm	0.005
	XY/Z axes linear guideway width	mm	30/30/35
Tool magazine	Tool magazine type	/	Patent designed turret type
	Tool changing time	s	1.2
	Tools qty	pc	8
	Max. tool dia.	mm	Φ63
Others	Overall dimension(L×W×H)	mm	1400×1500×2300
Others	Weight	kg	1850
