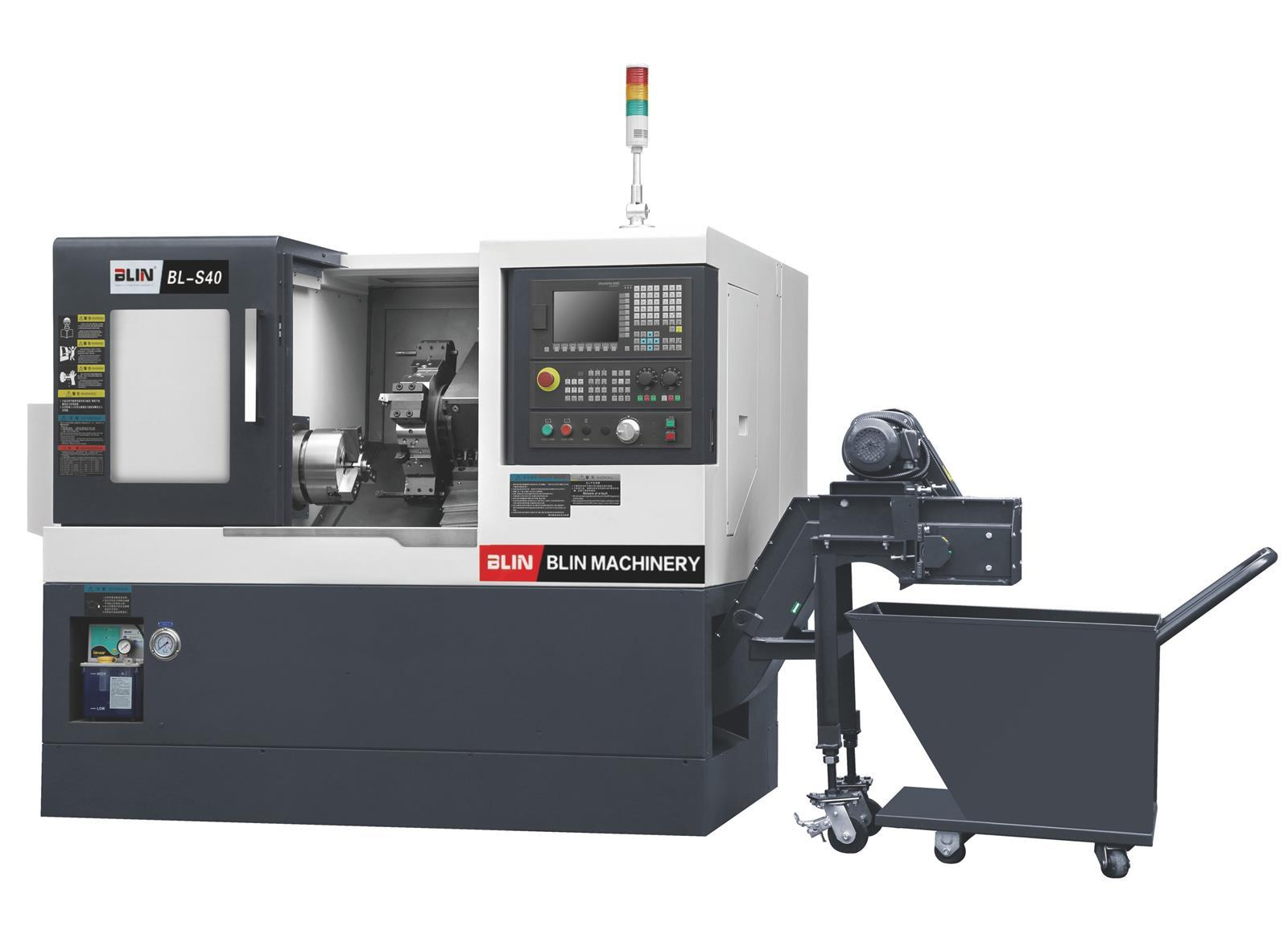

S PRECISE Series
TAIWAN technology
6''/8'' chuck
8T/12T tool turret
Hydraulic tailstock
Standard configuration:
SIEMENS 808D ADVANCED CNC controller

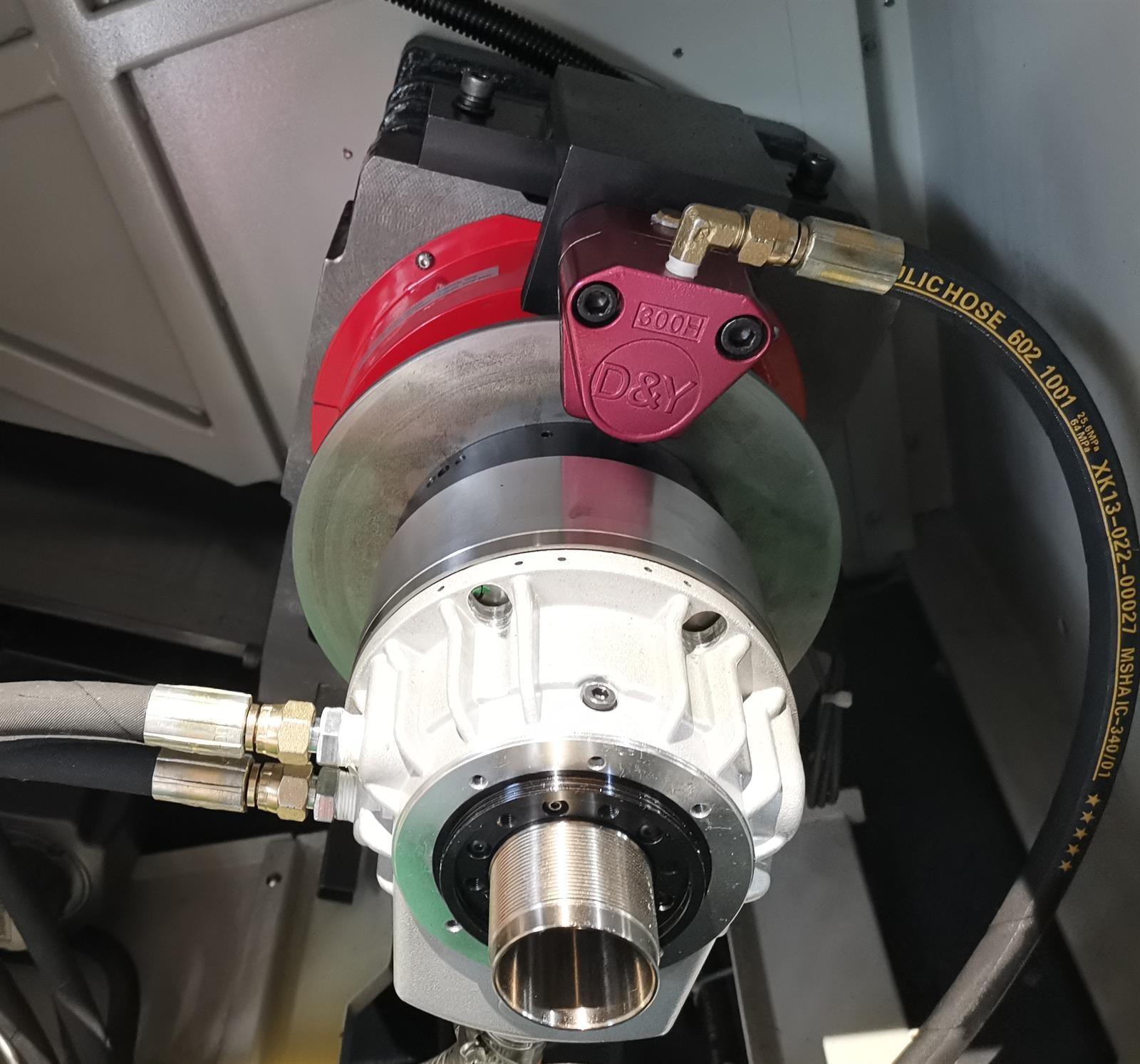

Hydraulic chuck
S40: Hydraulic-servotool turret
S40M: 12T VDI30 servo powered tool turret
Hydraulic tailstock
Features:
Super compact structure, big inside space, modern appearance
Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.

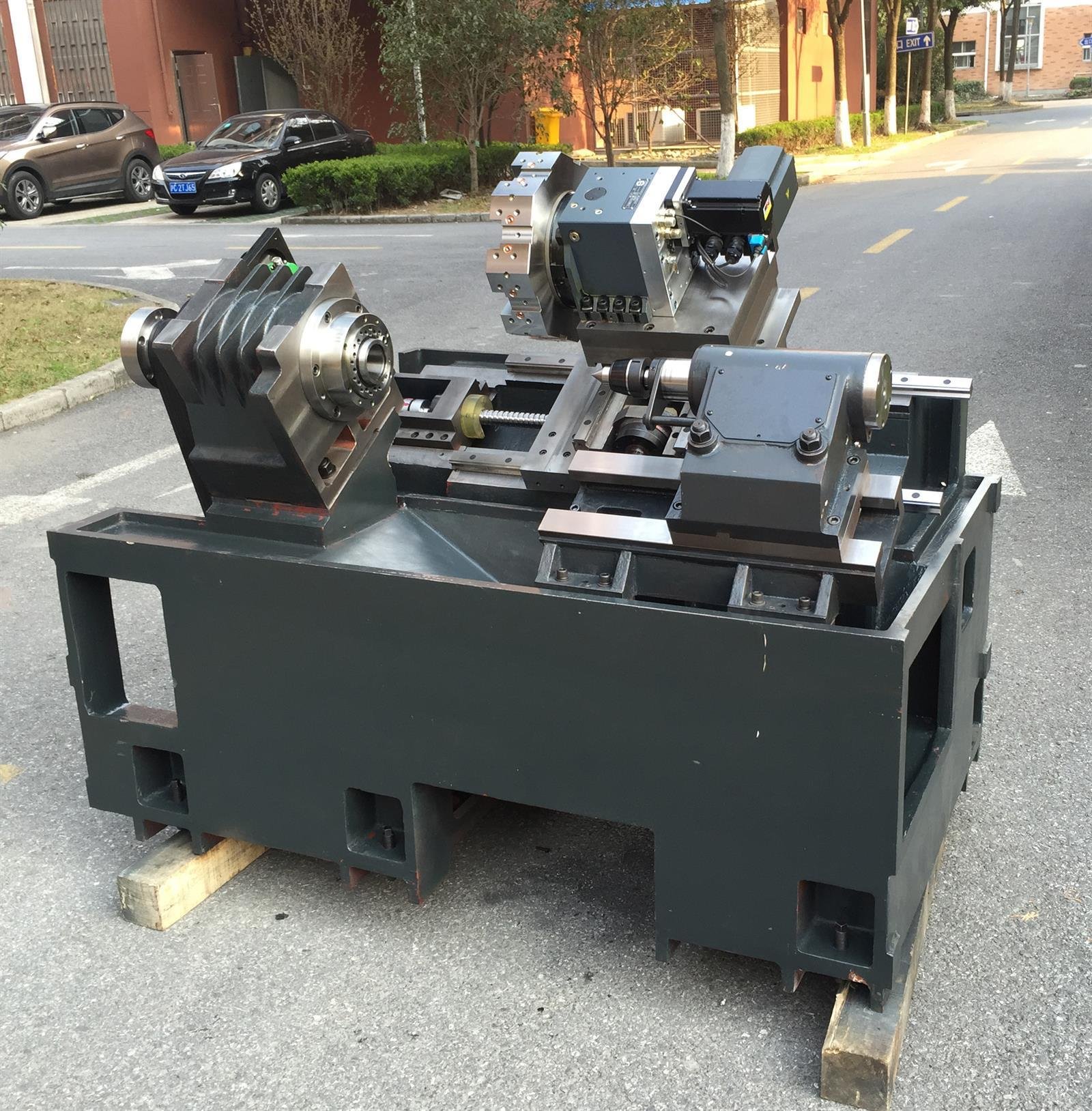

Adopt 30° integral slant bed design(structure similar as JAPAN TAKISAWA 106), high rigidity, good machining flexibility,easy for chip conveying.
Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc.

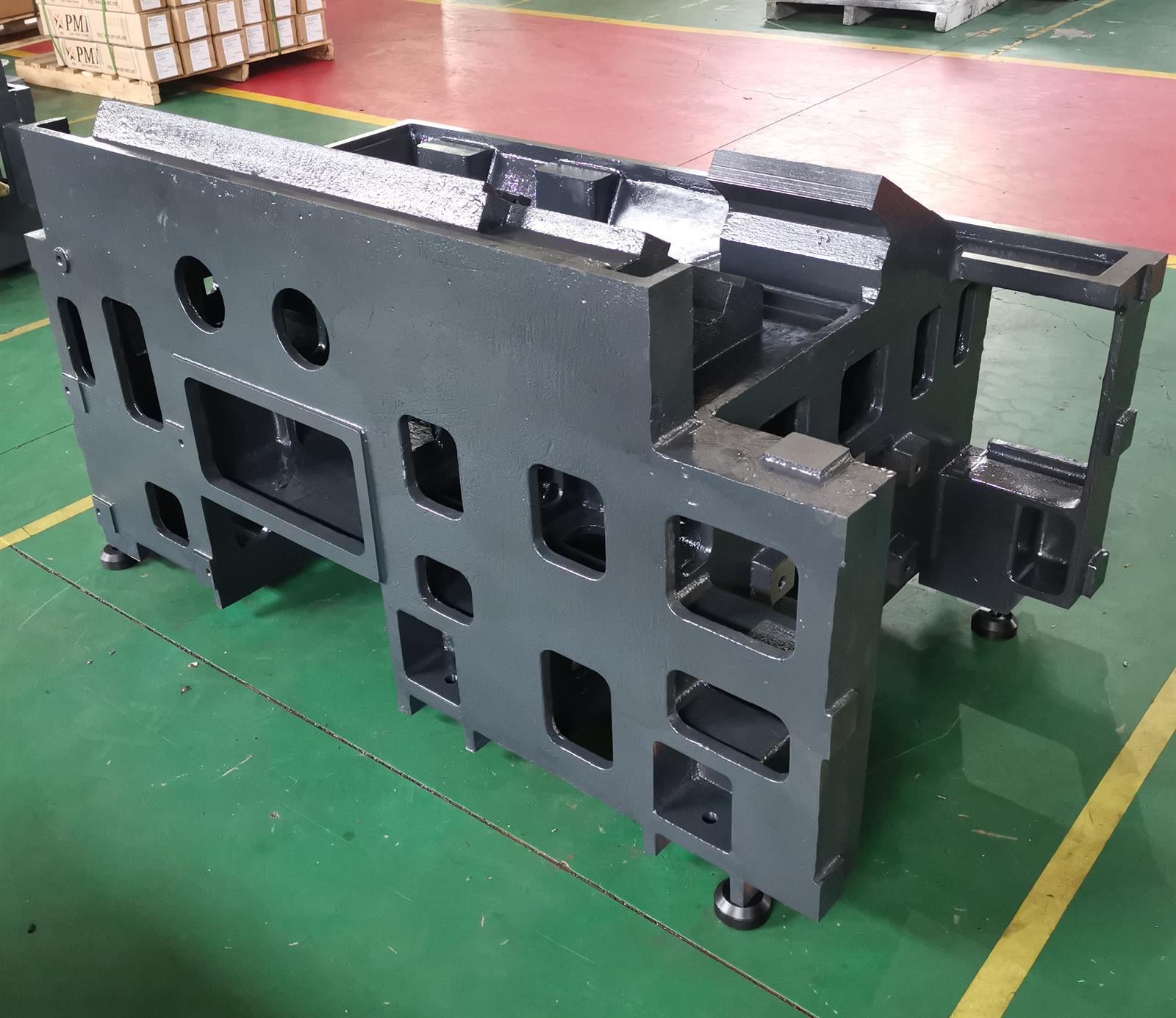

Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
Base adopt multilayer strengthening rib, ensure bed’s strengthand stability
Frame adopt oil-coolant separation design, adopt independent coolant tank

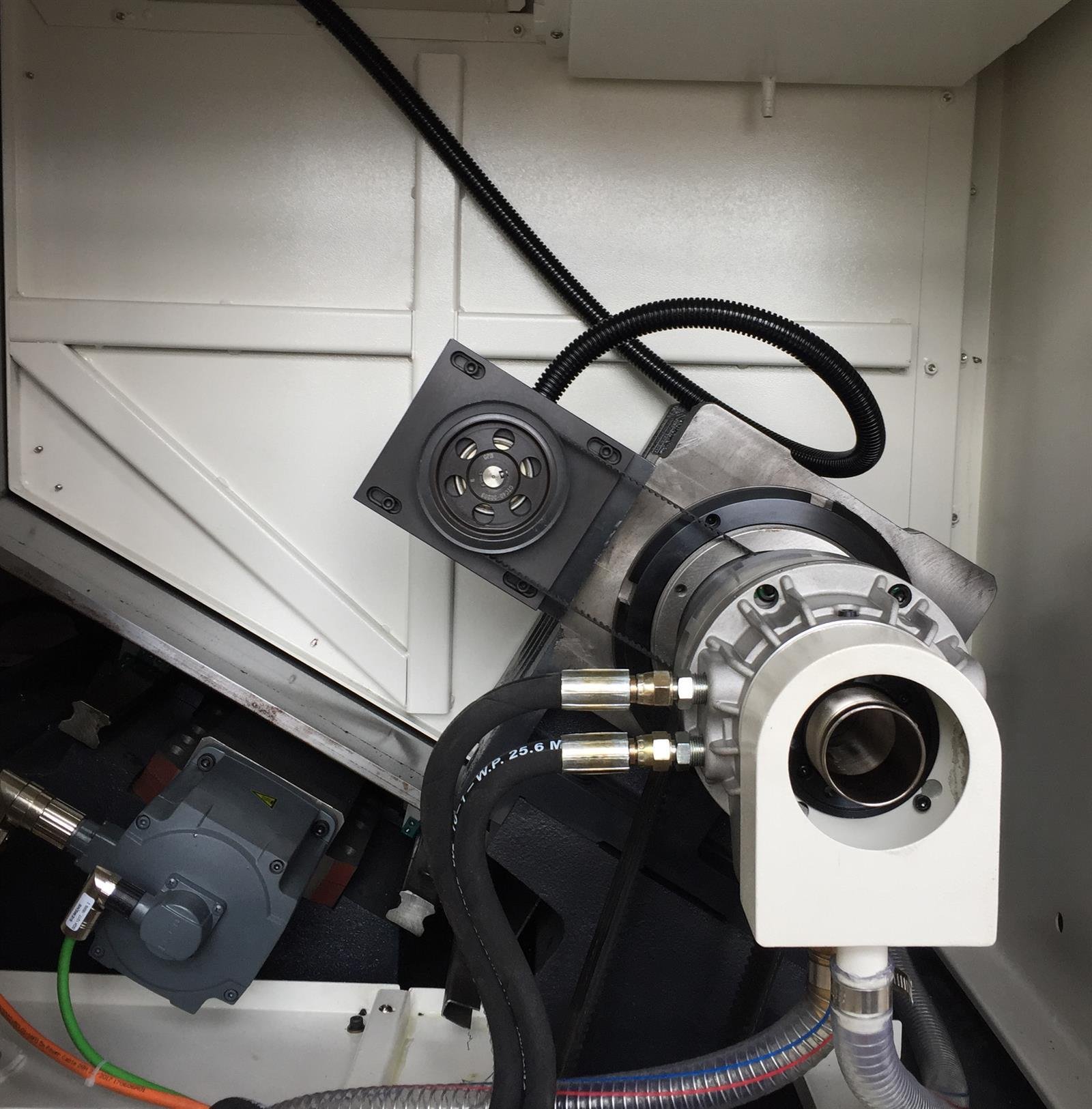

Adopt high precision integral spindleunit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining
Mmount energy-storage tank,reduce pressure fluctuation during tool change
Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity

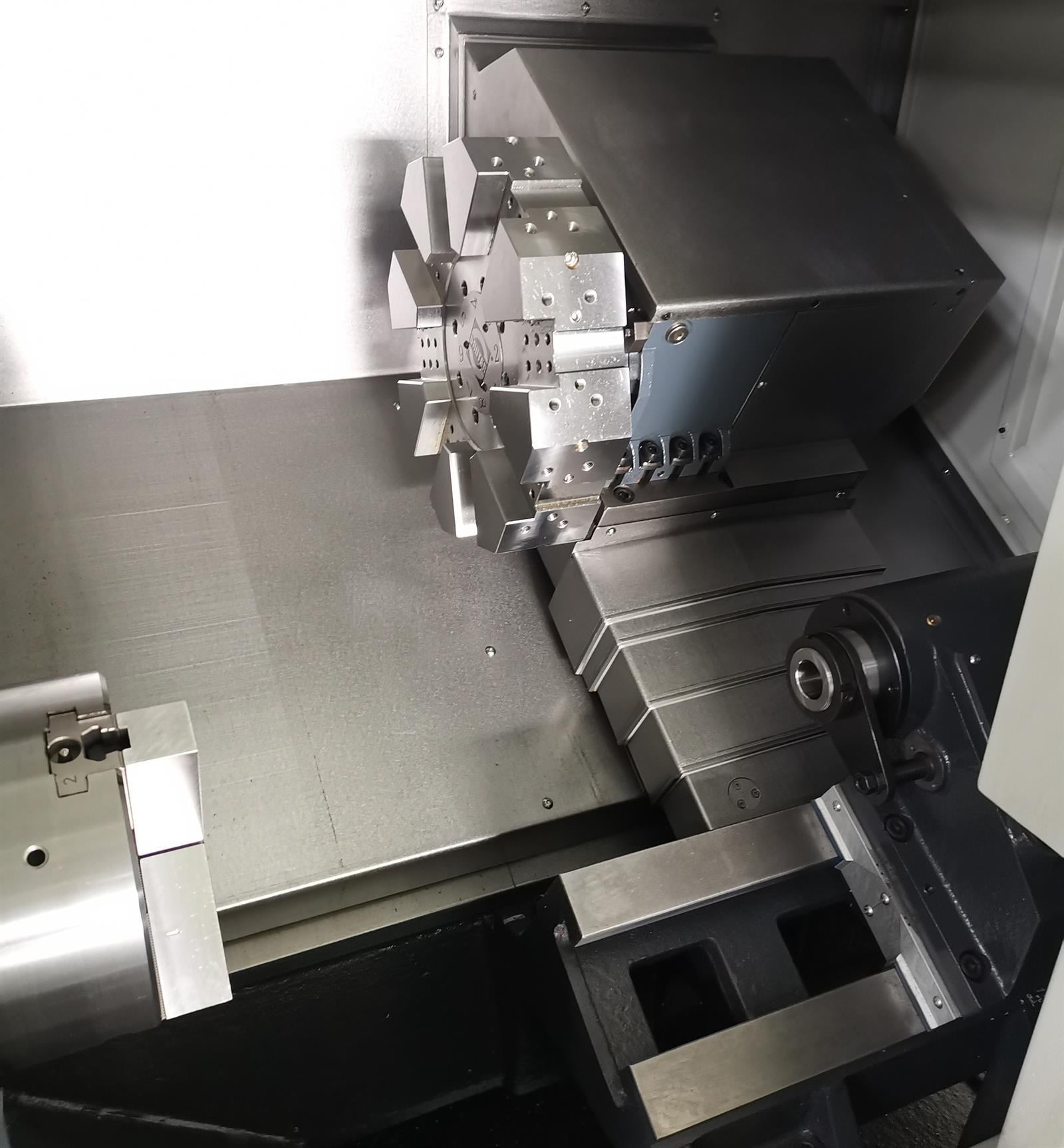

S40: 8T/12T Hydraulic-servo tool turret

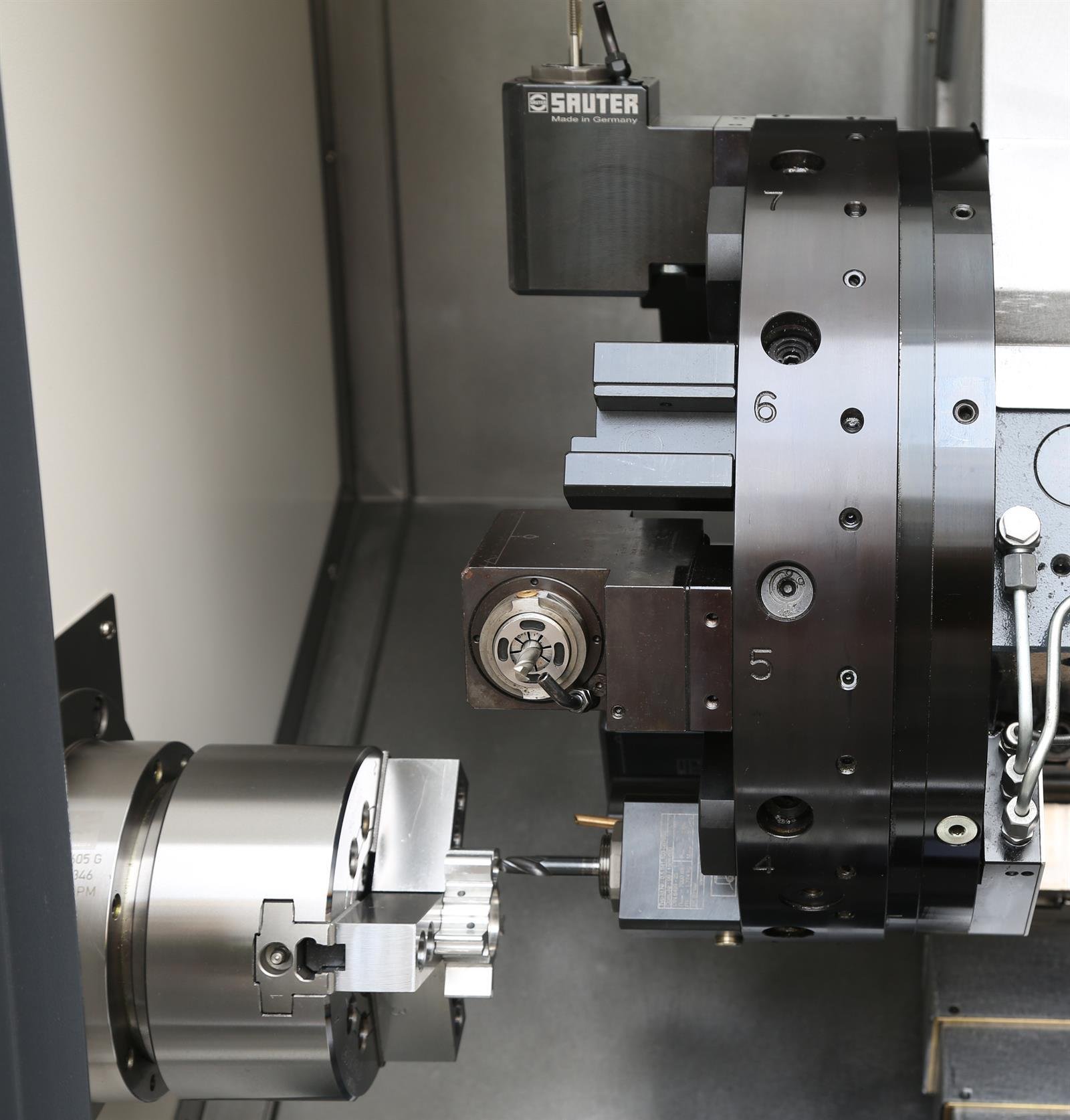

S40M: 12T VDI30 Servo powered tool turret and CS axes
